Overview

The ADC0806030/040/050 are a family of 8-bit high-speed, low-power Analog-to-Digital Converters (ADC) for professional video and other applications. It converts the analog input signal into 8-bit binary coded digital signals at a maximum sampling rate of 50 MHz. All digital inputs and outputs are Transistor-Transistor Logic (TTL) and CMOS compatible, although a low-level sine wave clock input signal can also be used. The device requires an external source to drive its reference ladder. If the application requires that the reference is driven via internal sources, it is recommended that you use one of the ADC1003S030/040/050 family.

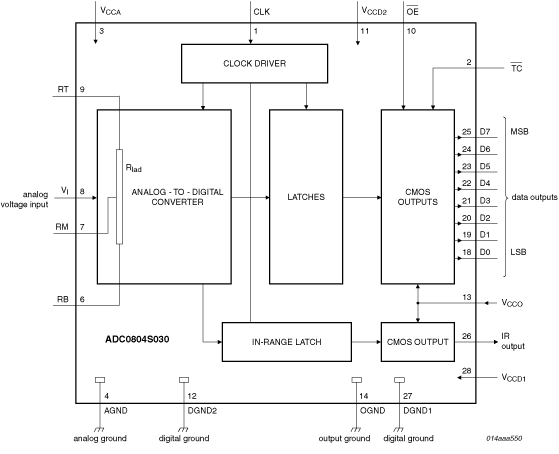

ADC0804S040TS - 1 - Block Diagram
ADC0804S040TS - 1 - Block Diagram
  • 3 V to 5 V CMOS digital outputs
  • 8-bit resolution
  • DC sampling allowed
  • External reference voltage regulator
  • High signal-to-noise ratio over a large analog input frequency range (7.8 effective bits at 4.43 MHz full-scale input at fclk = 40 MHz)
  • In-Range (IR) CMOS output
  • Low analog input capacitance, no buffer amplifier required
  • Low-level AC clock input signal allowed
  • No missing codes guaranteed
  • No sample-and-hold circuit required
  • One clock cycle conversion only
  • Power dissipation only 175 mW (typical)
  • Sampling rate up to 50 MHz
  • TTL and CMOS levels compatible digital inputs

Documentation

Title Type Date
ADC0804S SER Datasheet
PDF478 KB
Datasheet
PDN# : DC-14-01 PRODUCT DISCONTINUANCE NOTICE
PDF538 KB
End Of Life Notice

Design & Development

Software Downloads

Title Type Date
PDN# : DC-14-01 PRODUCT DISCONTINUANCE NOTICE
PDF538 KB
End Of Life Notice

Boards & Kits

Evaluation Board - No Image Available

ADC0804S040

Demonstration
Order Now

ADC0804S040 demo board

Our ADC demo board is suitable for dynamic performance evaluations. A data-acquisition board can be used during design and prototype to analyze ADC performance.

Featured Documents:
ADC0804S Quick Start Guide
