Evaluation Kit for ZSC31015
The ZSC31015KIT Evaluation Kit, also known as the ZACwireTM SSC Modular Evaluation Kit, provides the hardware needed for configuration, calibration and evaluation of...
Resistive Sensor Signal Conditioner with Analog Output and Diagnostic Features
ページセクションへ移動：
概要
説明

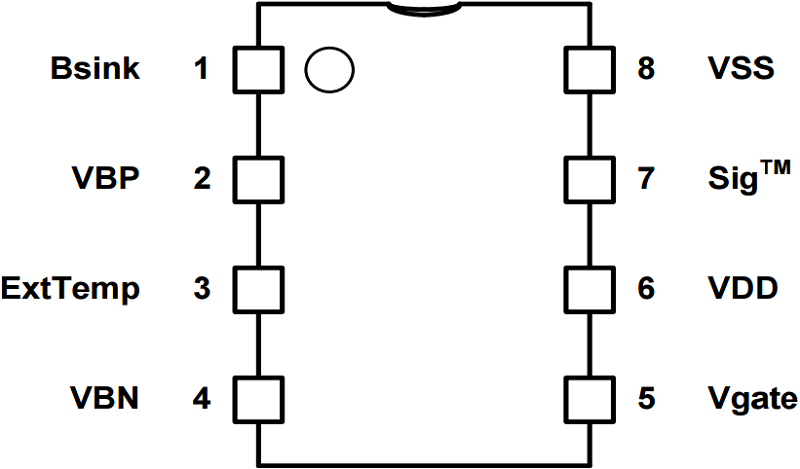

The ZSC31015 (RBicdLite™) is a CMOS integrated circuit for highly accurate amplification and sensor-specific correction of bridge sensor signals. Digital compensation of sensor offset, sensitivity, temperature drift and non-linearity is accomplished via an internal digital signal processor running a correction algorithm with calibration coefficients stored in a non-volatile EEPROM. The ZSC31015 is adjustable to nearly all piezo-resistive bridge sensors. Measured and corrected bridge values are provided at the SIG™ pin, which can be configured as an analog voltage output or as a one-wire serial digital output. The digital one-wire interface can be used for a simple PC-controlled calibration procedure to program a set of calibration coefficients into an on-chip EEPROM. The calibrated ZSC31015 and a specific sensor are mated digitally: fast, precise, and without the cost overhead associated with trimming by external devices or laser. Integrated diagnostics functions make the ZSC31015 particularly well suited for automotive applications.
特長
- Digital compensation of sensor offset, sensitivity, temperature drift and nonlinearity
- Programmable analog gain and digital gain; accommodates bridges with spans < 1mV/V and high offset
- Many diagnostic features on chip (e.g., EEPROM signature, bridge connection checks,bridge short detection, power loss detection)
- Independently programmable high and low clipping levels
- 24-bit customer ID field for module traceability
- Digital calibration and configuration via one-wire interface quick and precise
- Internal temperature compensation reference (no external components)
- Option for external temperature compensation with addition of single diode
- Output options: rail-to-rail ratiometric analog voltage (12-bit resolution), absolute analog voltage, digital one-wire-interface
- Supply voltage 2.7 to 5.5V, with external JFET, 5.5 to 30V
- Fast power-up to data output response, output available 5ms after power up
- Current consumption depends on programmed sample rate: 1mA down to 250
ドキュメント
|
|
日付 | |
|---|---|---|
| PDF 1.11 MB | データシート | |
| PDF 1.23 MB 英語 | 概要 | |
| 7Z 1.21 MB | ガイド | |
| PDF 271 KB | 技術概要 | |
| PDF 378 KB | データシート－簡略版 | |
| PDF 172 KB | アプリケーションノート | |
| PDF 1.09 MB | マニュアル－開発ツール | |
| PDF 284 KB | アプリケーションノート | |
| PDF 336 KB | アプリケーションノート | |
| PDF 667 KB | アプリケーションノート | |
| PDF 128 KB | アプリケーションノート | |
| PDF 1.03 MB | マニュアル－開発ツール | |
| XLS 41 KB | その他資料 | |
| XLS 53 KB | その他資料 | |
14 items
|
||
設計・開発
ソフトウェア／ツール
ボード＆キット
ボード＆キット
Mass Calibration System for ZSC31015
The ZSC31015 Mass Calibration System provides the hardware needed for simultaneous configuration, calibration and evaluation of multiple ZSC31015 Sensor Signal...
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
Pkg. Type |
Lead Count (#) |
Temp. Range |
Carrier Type |
ご購入 / サンプル |
|
|---|---|---|---|---|---|
| 型名 | |||||
| WAFER | 0 | -40 to 125°C | Wafer | ||
| WAFER | 0 | -40 to 125°C | Wafer | ||
| SOIC | 8 | -40 to 125°C | Reel | サンプルを入手, | |
| SOIC | 8 | -40 to 125°C | Tube | サンプルを入手, | |
| WAFER | 0 | -50 to 150°C | Wafer | ||
| WAFER | 0 | -50 to 150°C | Wafer | ||
| SOIC | 8 | -50 to 150°C | Reel | サンプルを入手, | |
| SOIC | 8 | -50 to 150°C | Tube | サンプルを入手, | |
| WAFER | 0 | -25 to 85°C | Wafer | ||
| WAFER | 0 | -25 to 85°C | Wafer | ||
| SOIC | 8 | -25 to 85°C | Reel | サンプルを入手, | |
| SOIC | 8 | -25 to 85°C | Tube | サンプルを入手, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
サポート
Renesas Samples
注文可能な製品番号を選択
| 発注型名 | サンプル |
|---|---|
| ZSC31015EAG1-R | Availability |
| ZSC31015EAG1-T | Availability |
| ZSC31015EEG1-R | Availability |
| ZSC31015EEG1-T | Availability |
| ZSC31015EIG1-R | Availability |
| ZSC31015EIG1-T | Availability |
ビデオ&トレーニング
IDT Sensor Signal Conditioner (SSC) Evaluation Kit Overview
A brief introduction and overview of IDT's sensor signal conditioner evaluation kits. Evaluation kits generally consist of three parts: a communication interface board, a device board, and a sensor simulator board - all connected together. A sophisticated software GUI accompanies the kit, enabling an engineer to learn how to use the part rapidly, do quick prototyping, and practice calibrations.
Presented by David Grice, applications engineer at IDT. For more information about IDT's sensor signal conditioner products, visit https://www.idt.com/ssc
