概要

Description

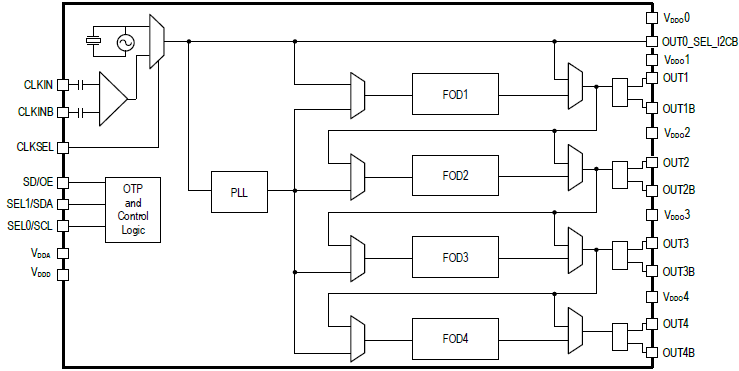

The 5P49V6975 is a member of Renesas' VersaClock® 6E programmable clock generator family. The 5P49V6975 is intended for high-performance consumer, networking, industrial, computing, and data-communications applications. The reference clock can come from one of the two redundant clock inputs. A glitchless manual switchover function allows one of the redundant clocks to be selected during normal operation.

Configurations may be stored in on-chip One-Time Programmable (OTP) memory or changed using I²C interface.


特長

  • < 100mW core power (at 3.3V)
  • < 0.5ps RMS phase jitter (typical)
  • PCIe Gen 1/2/3/4/5 spread spectrum off
  • PCIe Gen 1/2/3/4 spread spectrum on
  • 1/10GbE, USB 3.0
  • 4 universal outputs pairs: LVPECL, LVDS, HCSL, or 8 LVCMOS outputs
  • 4 independent frequencies with 0.001MHz–350MHz output range
  • Reference output
  • 1.8V / 2.5V / 3.3V core and output voltages
  • 2 programmable I²C addresses allowing multiple devices to be used in same system.
  • Up to 4 different configuration sets in OTP non-volatile memory
  • Supported by Timing Commander™  software tool
  • Quick sampling and customization process supported by online-form submission
  • Internal crystal in package saves board space
  • 4 x 4 mm 24-VFQFPN package
  • -40°C to +85°C operating temperature range

製品比較

5P49V6975 5P49V6965 5P49V6967 5P49V6968
Inputs (#) 1 2 2 2
Outputs (#) 5 5 9 11
Output Type HCSL, LVCMOS, LVDS, LVPECL HCSL, LVCMOS, LVDS, LVPECL HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL HCSL, LP-HCSL, LVCMOS, LVDS, LVPECL
Phase Jitter Typ RMS (ps) 0.500 0.500 0.500 0.500
製品情報を見る 製品情報を見る 製品情報を見る

ドキュメント

タイトル 分類 日付
PDF885 KB
データシート
PDF686 KB
Application Brief
PDF348 KB
アプリケーションノート
PDF1.16 MB
アプリケーションノート
PDF1.17 MB
アプリケーションノート
PDF256 KB
アプリケーションノート
PDF486 KB
アプリケーションノート
PDF255 KB
アプリケーションノート
PDF717 KB
アプリケーションノート
PDF406 KB
アプリケーションノート
PDF342 KB
アプリケーションノート
PDF307 KB
アプリケーションノート
PDF188 KB
アプリケーションノート
PDF170 KB
アプリケーションノート
PDF146 KB
アプリケーションノート
PDF133 KB
アプリケーションノート
PDF495 KB
アプリケーションノート
PDF565 KB
アプリケーションノート
PDF438 KB
アプリケーションノート
PDF137 KB
アプリケーションノート
PDF990 KB
マニュアル-開発ツール
PDF392 KB
概要
PDF256 KB
技術概要
PDF238 KB
技術概要

設計・開発

ソフトウェア/ツール

ソフトウェアダウンロード

タイトル 分類 日付
ZIP5.88 MB
ソフトウェア/ツール-その他
ZIP18.02 MB
ソフトウェア/ツール-その他

ボード&キット

ボード&キット

モデル

モデル

Title Type Date
モデル-IBIS

サポート

VersaClock® 6E - High-performance Programmable Clock Generator

The VersaClock® 6E programmable clock generator devices offer a combination of low power, flexibility and performance for a wide range of applications. These features make it ideal for simplifying system design by replacing multiple discrete timing components and reducing bill of materials (BOM). The VersaClock 6E supports operating voltages from 1.8 to 3.3 V, differential (LVPECL/HCSL/LVDS/LP-HCSL) and LVCMOS output types, and fractional dividers to accurately generate virtually any frequency. Products satisfy system requirements from oscillator replacement to PCIe® Gen 1/2/3 and to communications applications, while consuming very little power.

For more information about VersaClock 6E, visit https://www.idt.com/versaclock.
