Analog Products

A critical part of most data acquisition systems, Renesas offers several sample and hold amplifiers for general-purpose and military and defense applications that include precision data acquisition systems, synchronous sampling, wide bandwidth analog-to-digital (A/D) conversion, auto-zero circuits, digital-to-analog (D/A) converter deglitching, peak detection, and high-speed DC restore.

セレクションテーブル

    Processing table
    Bandwidth (MHz)
    VOS (mV)
    Slew Rate (V/µs)
    Droop Rate (μV/μs)
    Hold Step Error (mV)
    IBIAS (nA)
    IS (per amp) (mA)
    tACQ (ns)
    AVOL (dB)
    Requires External Hold Capacitor
    Lead Count (#)
    Pkg. Type
    型名
    HA-2420/883
    3.2 Microsecond Sample and Hold Amplifiers    		 2.5 2 5 .005 10 40 3.5 3200 94 はい 14 CERDIP
    HA-5320
    1 Microsecond Precision Sample and Hold Amplifier    		 2 0.2 45 0.08 5 70 11 1000 126 はい 14, 16 CERDIP, SOICW
    HA-5330
    650ns Precision Sample and Hold Amplifier    		 4.5 0.2 90 0.01 0.5 20 19 650 146 いいえ 20 CLCC

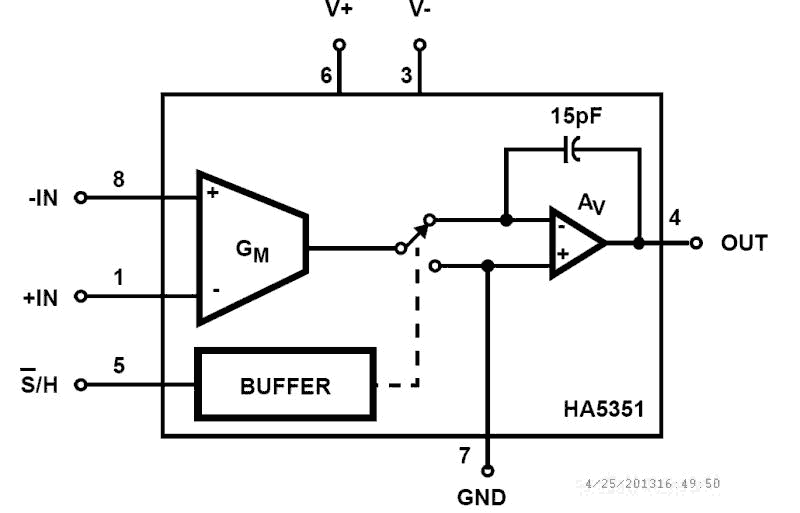

    HA5351
    64ns Sample and Hold Amplifier    		 40 1 105 0.3 1 2500 20 64 108 いいえ 8 SOICN
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    ドキュメント

    タイトル
    		分類 日付
    AN517: Application of Monolithic Sample-and-Hold Amplifiers
    PDF 1.06 MB     		アプリケーションノート
    AN535: Design Considerations for a Data Acquisition System (DAS)
    PDF 843 KB     		アプリケーションノート
    2 items
