PMOD Expansion Board for RYZ012x1
Jump to Page Section:
Overview
Description

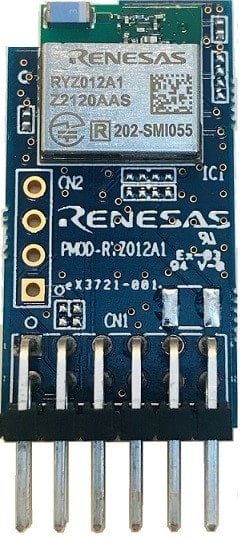

The PMOD Expansion Board for RYZ012x1 provides an entry point to evaluation and developing for the RYZ012A1/B1. The PMOD Expansion Board easily connects to Renesas MCU kits via the PMOD interface. And the PMOD Expansion Board can be controlled through an SPI or UART interface.
Features
- On-board RYZ012A1
- Easy connection to Renesas MCU kits via PMOD
- UART / SPI interface can be selected by pin
- Firmware written for Bluetooth® Low Energy (LE) operation
- Supported by the RA MCU family’s Flexible Software Package (FSP) and the QE for BLE tool
- Driver for RX MCUs available
Applications
Applications
- Smart home
- Wearables & trackers
- Agriculture
- General phone connectivity
- Entry-level mass market products requiring basic Bluetooth LE functionality with minimum design and qualification effort
Design & Development
Software & Tools
Software & Tools
| Quick-Connect IoT PlatformQuick-Connect IoT platform enables fast prototyping by providing compatible hardware and software building blocks. | Other Hardware | Renesas |
| Flexible Software Package (FSP)FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers. Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain and Segger J-Link drivers required to use this software. No additional installations are required. | Software Package | Renesas |
| QE for BLE: Development Assistance Tool for Bluetooth® Low EnergyDebugging support tool that specializes in Bluetooth® Low Energy system development [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RA, RX, RL78] | Solution Toolkit | Renesas |
Sample Code
Sample Code
| Title | Type | Date | |
|---|---|---|---|
[Software=FSP | v4.2.0],[Toolchain=GCC ARM Embedded Toolchain version 10.3.1] ZIP4.54 MB Related Files:
IDE: e2 studio IDE v2022-10 |
Sample Code |
||
ZIP6.26 MB Related Files:
Application: Consumer Electronics, Industrial Function: Communication Interface, Driver or Library Compiler: CC-RX IDE: e2 studio |
Sample Code |
||
ZIP2.07 MB Related Files:
Application: Consumer Electronics, Industrial Function: Communication Interface Compiler: GNU ARM Embedded IDE: e2 studio |
Sample Code |
||
ZIP3.62 MB Related Files:
|
Sample Code |
