Wireless Power Receiver for Low Power Applications
Jump to Page Section:
Overview
Description
The P9222-R is an integrated single-chip wireless power receiver IC (Rx) for up to 5W applications. The P9222-R is highly efficient at light loads and very well-suited for low-power applications such as earbuds case charging. A unique Ping detect feature gives the user an early indication of the wireless charger connection and improves thermal performance at the end of complete battery charging. Low under-voltage lockout (UVLO) threshold allows the receiver to start up even with a weaker digital ping strength signal from a transmitter over an extended area.
The device includes over-temperature and under/over-voltage protection. The internal over-voltage clamping protects the rectifier output from rising above the overvoltage level when the receiver is quickly moved from a low-coupling position to a high-coupling position. The integrated 32-bit ARM® Cortex®-M0 processor (trademark of ARM, Ltd.) offers a high level of programmability and design parameters that can be easily configured through the I2C interface or an external EEPROM.
The P9222-R is available in a RoHS ultra-small WLCSP-40 package and it is rated for a -40°C to +85°C ambient operating temperature range.
Features
- Ultra-compact, efficient wireless power receiver for up to 5W applications
- WPC 1.2 Qi Baseline Power Profile (BPP) compatible
- Optimized light load efficiency for low power applications
- Ping detection for reduced power consumption at end of charging
- Low under-voltage lockout (UVLO) for low voltage start-up for faster connections over an extended area
- ASK and FSK modulation/demodulation for Bi-directional Communication: Rx-to-Tx and Tx-to-Rx
- Easy configuration of design parameters through I2C interface on an external EEPROM
- ADC input to measure battery voltage or system voltage
- Embedded 32-bit ARM® Cortex®-M0 processor
- Internal over-voltage clamping
- Low standby and operating mode power consumption
- High performance low dropout (LDO) regulator with low RDS(on) and programmable current limiting
- Supports I2C slave/master mode

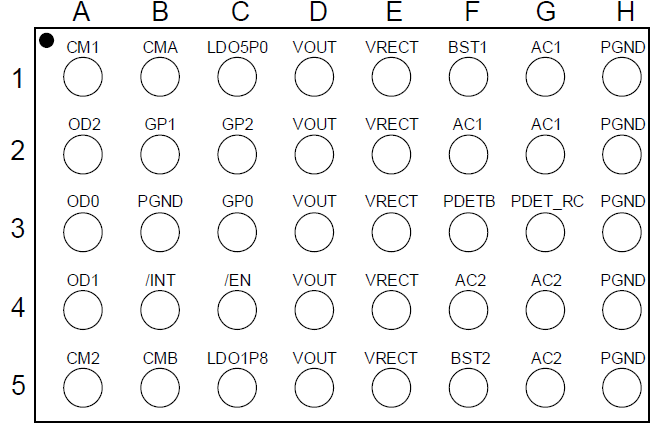

- 40-WLCSP: 5 × 8 ball array, 2.28 × 3.38 mm, 0.4mm pitch
Applications
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 3.42 MB | Datasheet | ||
| PDF 810 KB | Application Note | ||
| PDF 3.74 MB | Application Note | ||
| PDF 1.28 MB | Application Note | ||
| PDF 301 KB | Application Note | ||
| PDF 1.14 MB | Overview | ||
| PDF 108 KB | Product Change Notice | ||
| PDF 83 KB | Product Change Notice | ||
| PDF 104 KB | Product Change Notice | ||
| PDF 627 KB | White Paper | ||
10 items
|
|||
Design & Development
Boards & Kits
Boards & Kits
Wireless Power Receiver Solution for Low Power Applications
The P9222-R-EVK wireless power evaluation board demonstrates the features and performance of the P9222-R 5W wireless power receiver in low-power applications such as...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| WLCSP | 40 | I | Yes | Reel | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
5W Bi-Directional Communication Demo
Video shows how users can transfer data between the receiver to the transmitter and vice versa while wirelessly transferring power.
