GreenFET Dual N-Channel Load Switch
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description

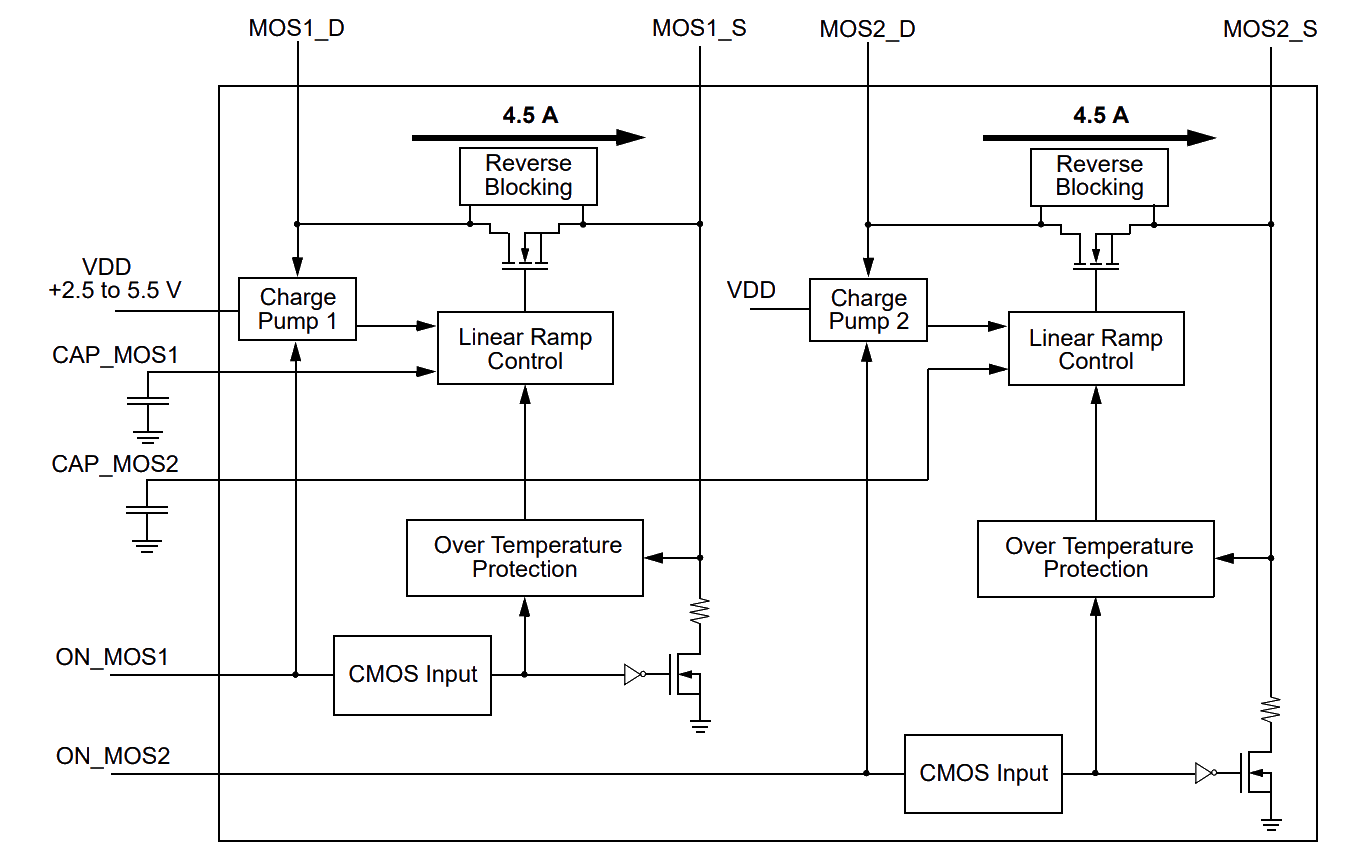

The SLG59M1603V is designed for power switching applications. The part comes with two 4.5 A rated MOSFETs switched on by two ON control pins. Each MOSFETs turn on time is independently adjusted by an external capacitor.
Features
- Optimized for high-current point-of-load applications
- Power supply: 2.5 V ≤ VDD ≤ 5.5 V
- Input voltage range: 0.85 V ≤ VD ≤ VDD
- 16 mΩ RDSON while supporting 4.5 A
- Output voltage slew-rate control by external capacitor
- Over-temperature protection
- Output discharge circuitry
Applications
Applications
- Ideal for switching ON and OFF S0 +5.0 and 3.3 V power rails with associated support circuitry discharges
- Ideal for switching ON and OFF power rails 5.5 V or less
- Can use either channel up to 4.5 A with combined maximum current of 8.5 A
- Maximum load capacitance of 1000 μF for each Channel Source terminal
Design & Development
Boards & Kits
Boards & Kits
SLG59M1603V Evaluation Board
The SLG59M1603V-EVB board evaluates the SLG59M1603V GreenFET, Dual N-Channel Load Switch.
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| STDFN-14 (1.0 x 3.0 mm) | Tape & Reel | ||
| STDFN-14 (1.0 x 3.0 mm) |
