The ISL21090 is an ultra-low noise, high DC accuracy precision voltage reference with a wide input voltage range. The ISL21090 uses Renesas' Advanced Bipolar technology to achieve sub 1.0µVP-P (1.25V option) 0.1Hz to 10Hz noise with an initial voltage accuracy of 0.02% (2.5V option). The ISL21090 offers 1.25V, 2.5V, 5.0V, and 7.5V output voltage options with a 7ppm/°C temperature coefficient and also provides excellent line and load regulation. These devices are offered in an 8 Ld SOIC package. The ISL21090 is ideal for high-end instrumentation, data acquisition and processing applications requiring high DC precision where low noise performance is critical.

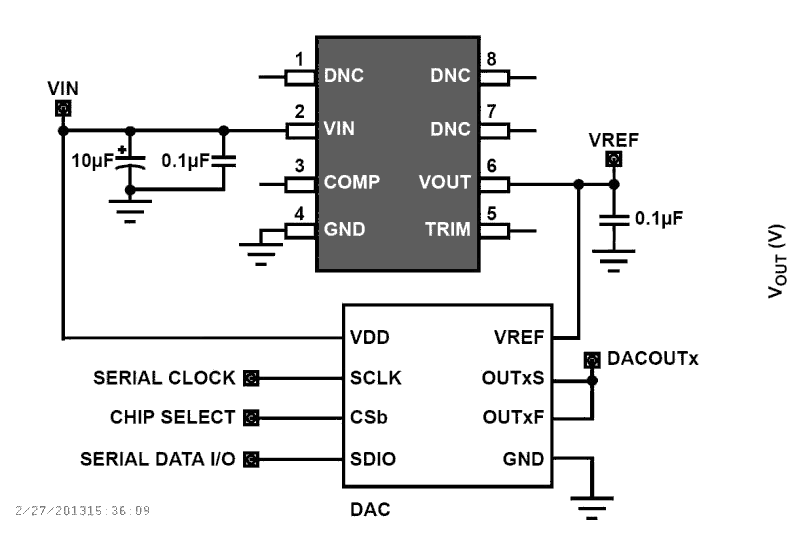

Features
- Reference output voltage option
- 1.25V, 2.5V, 5.0V, and 7.5V
- Initial accuracy:
- ISL21090-12: ±0.03%
- ISL21090-25: ±0.02%
- ISL21090-50: ±0.025%
- ISL21090-75: ±0.035%
- Output voltage noise (0.1Hz to 10Hz): 1.0µVP-P typ (1.25V option)
- Supply current : 750µA (1.25V option)
- Temperature coefficient: 7ppm/°C max
- Output current capability: 20mA
- Line regulation: 6ppm/V (1.25V option)
- Load regulation: 2.5ppm/mA (1.25V option)
- Operating temperature range: -40 °C to +125 °C
Comparison
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 1.72 MB | |
| Brochure | PDF 5.41 MB 日本語 | |
| Product Change Notice | PDF 184 KB | |
| Manual - Development Tools | PDF 360 KB | |
| Application Note | PDF 1.39 MB | |
| Application Note | PDF 503 KB | |
| Application Note | PDF 287 KB | |
7 items
|
||
Design & Development
Software & Tools
Boards & Kits
Evaluation
ISL21090xxEV1Z
Active
Ultra-Low Noise, Precision Voltage Reference Evaluation Boards
The ISL21090xxEV1Z evaluation board is designed to measure the performance of the high-precision ISL21090 voltage references. The reference has a wide input voltage range from 3.7V to 36V and an initial accuracy of 0.02% (2.5V option). The voltage noise of less than 2µVP-P in the 0.1Hz to 10Hz...
