140W USB Type-C Battery System Reference Design for 2 to 7S Li-ion
This is a single port reference design for implementing battery systems with 2 to 7 cells connected in series. It supports two modes: one where power is supplied solely...
Overview
Description
The RAA489400 is a USB Type-C® port controller designed under the USB Type-C Port Controller Interface Specification, USB Type-C Cable and Connector Specification, and USB Power Delivery (USB PD) Specification. A single USB Type-C Port Manager can be combined with multiple RAA489400 devices to implement all USB PD functions, such as power negotiation and Alternate Mode support, for multiple USB Type-C ports. The RAA489400 supports a 60V absolute maximum rating for both a VBUS voltage monitor (with relevant pin functions) and CC1/CC2, enabling a system capable of providing Extended Power Range (EPR) operation up to 240W/48V.

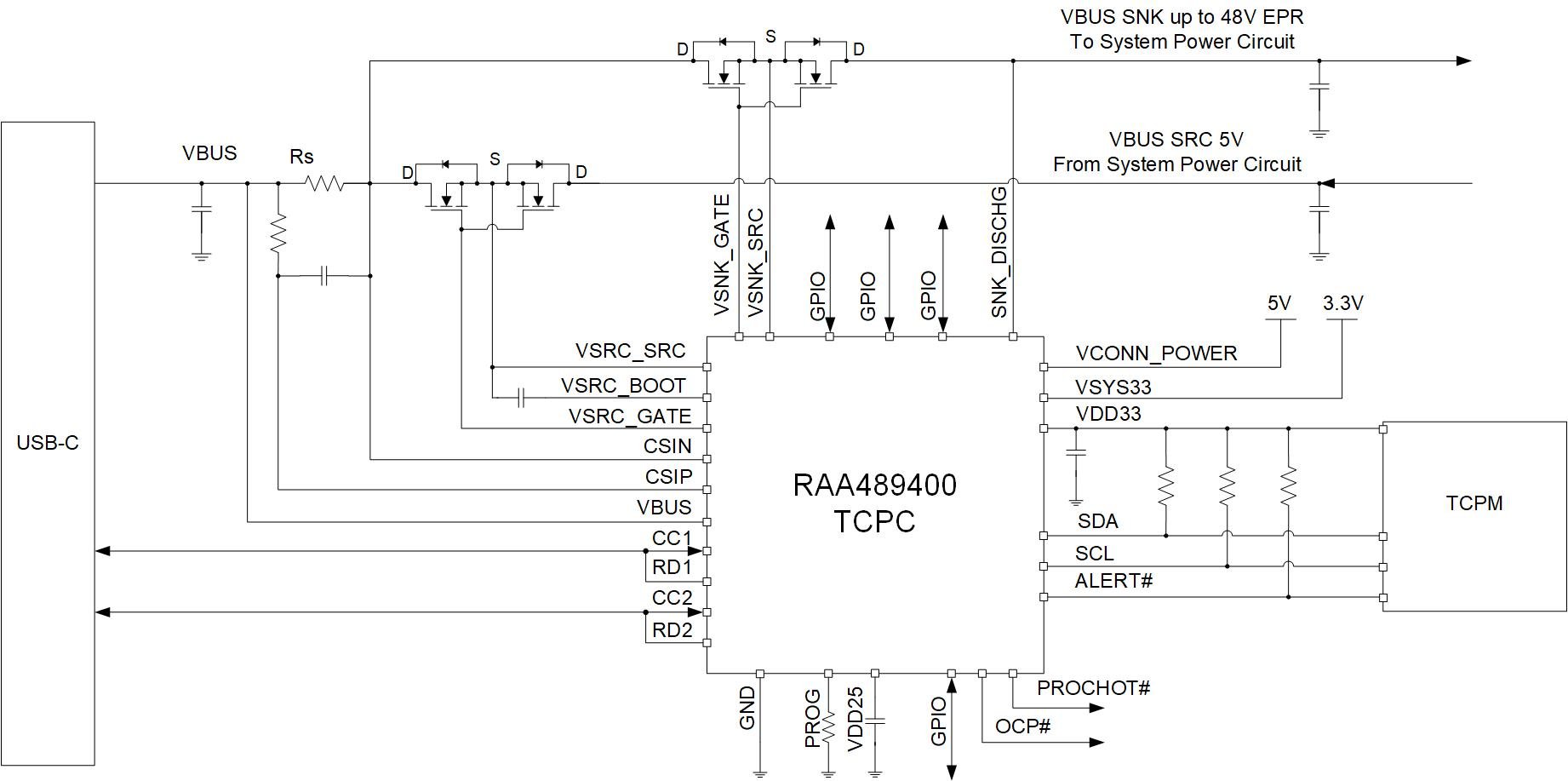

Features
- USB Type-C® Port Controller (TCPC) with integrated TCPC PHY, CC-Logic
- Supports USB Type-C Port Controller Interface (TCPCi) Revision 2.0 with Extended Power Range (EPR)
- Supports USB Power Delivery (USB PD) Revision 3.1 (Certified Silicon TID: 10147)
- Supports USB Type-C Release 2.1
- CC1/CC2 absolute maximum rating: 60V
- Dead battery Rd support
- SMBus/I2C slave target with ALERT# for USB Type-C Port Manager (TCPM)
- Integrated VCONN MUX
- RDSON: 500mΩ for 5V VCONN power
- VCONN protections: OCP/OVP/UVP/OTP/RVP
- VCONN Overcurrent threshold options: 600mA (default), 400mA, and 800mA
- 48V tolerance for VBUS based on USB PD Revision 3.1 EPR
- Recommended operating condition: 55V (maximum)
- Absolute Maximum Rating: 60V
- VBUS discharge
- VBUS protections: OCP/OVP/UVP/RVP
- VBUS-CC short-circuit protection
- VBUS source and sink power path gate drivers with external NFET
- OCP# fault signal output
- Sink Fast Role Swap (FRS) support
- 4-channel GPIO (such as VBUS source gate enable control, VBUS sink gate enable control with VBUS power switch, overcurrent input from external power switch)
- PROCHOT# output for VBUS source adapter disconnection and FRS Event notification
- Internal sink path discharge
- Integrated 3.3V LDO for TCPM power supply in dead battery scenarios
- ADC for VBUS voltage and current measurement
- VSYS33 (main power supply): Typical 3.3V
- Package: 32-pin FCQFN, 3.0mm × 5.0mm
Comparison
Applications
- Battery-powered mobile devices
- Electric bikes, robots, and drones
- Power tools, battery packs
- Home appliances such as vacuum cleaners
- Notebooks, tablets, power banks, and desktop PCs
