Overview
Description
The RAA214223 is a low-dropout linear voltage regulator that operates with a wide input voltage range from 4V to 20V, and the device provides up to 150mA of output current at a fixed output voltage of 3.3V.
Featuring a wide input voltage range with excellent line and load regulation, the device also has integrated fault protection that includes over-temperature shutdown (OTSD) and short-circuit current limit.
The output voltage of the device is fixed at 3.3V, and the device does well with regulating both the over-temperature and the operating range of the input voltage and load. It is also stable with a multilayer ceramic capacitor (MLCC) output capacitor as low as 1μF.

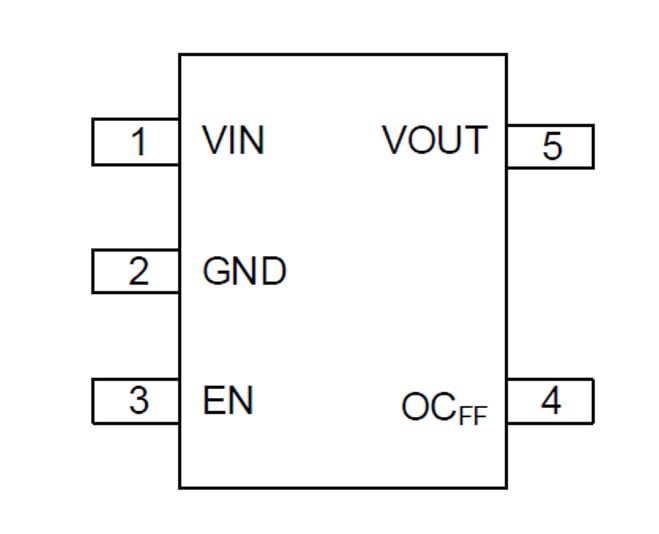

The RAA214223 is available in the 5-pin TSOT23 package.
Features
- Wide input voltage range 4V to 20V
- Output current up to 150mA
- Low 3.6μA shutdown current
- Accurate output voltage (-1.75%/+2.5% over-temperature)
- Low dropout voltage: 240mV typical at 150mA load
- Excellent line and load regulation
- Stable with 1μF minimum MLCC output capacitor
- Integrated fault protections including thermal
- shutdown and current limit
- Available in the compact and cost-effective 2.9mm x 1.63mm TSOT23 package
Comparison
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 508 KB | |
1 item
|
||
Design & Development
Boards & Kits
Demonstration
RTKA214223DR0000BU
Active
RAA214223 LDO Linear Regulator Demonstration Board
The RTKA214223DR0000BU demonstration board provides a simple platform for demonstrating the RAA214223 LDO linear regulator. The board features convenient connection points for input, output, and enable. With a small form factor (SFF), the board integrates into another system as a daughter card...
Recommended Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.
