RX23E-A-IO-LINK-TEMP-SENSOR

Active

RX23E-A IO-Link Temperature Sensor Solution Development Kit

IO-Link Device Solution for Temperature Sensor
View
View

Overview

This single-chip solution uses the 32-bit RX23E-A microcontroller with built-in high-precision analog front-end (AFE) to measure temperature, process sensing and signals, and control IO-Link communications via a ZIOL2401 IO-Link PHY chip.

Renesas Solution Starter Kit for RX23E-A with Network Board

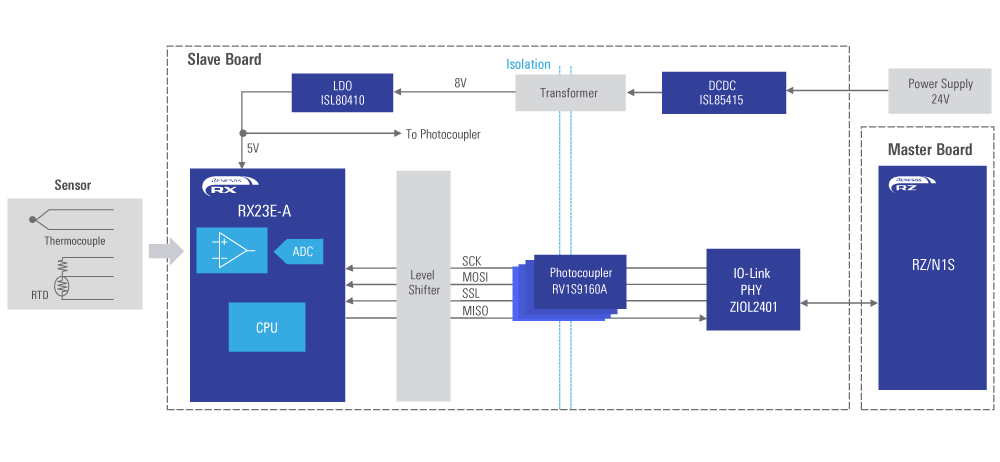

RX23E-A IO-Link Temperature Sensor Solution Block Diagram
Process Data by GUI Interface (1)
Process Data by GUI Interface (2)
Renesas Solution Starter Kit for RX23E-A with Network Board
RX23E-A IO-Link Temperature Sensor Solution Block Diagram
Process Data by GUI Interface (1)
Process Data by GUI Interface (2)
  • View RX23E-A RSSK information, and monitor temperature measurement and parameter settings using the IO-Link tool on a PC via a master device.
  • Includes demo that controls LED on/off control based on temperature measurement value set in the IO-Link tool, as an example of an application transmitting an indicated value from an upper layer to a temperature measurement device. Easily try out two-way communication, one of the merits of IO-Link.
  • Contains IO-Link stack developed by TMG, which can be used for evaluation purposes.
  • Sensor signal isolating photocoupler/optocoupler, power supply ICs, and other peripheral components ideal for temperature measurement devices are also available from Renesas.
