Overview

The EU036-MULTISENSEVZ board showcases the ability to quickly read data from numerous sensors over ASi-5 and to other microcontroller units. Sensors supported on the board measure air or liquid flow rates, relative humidity, temperature, indoor or outdoor air quality, proximity/distance, SpO2/heart rate, or a customer’s own analog sensors. Collateral material available for the EU036-MULTISENSEVZ includes schematics, BOM, and extensive demo software.

EU036-MULTISENSEVZ Evaluation Board

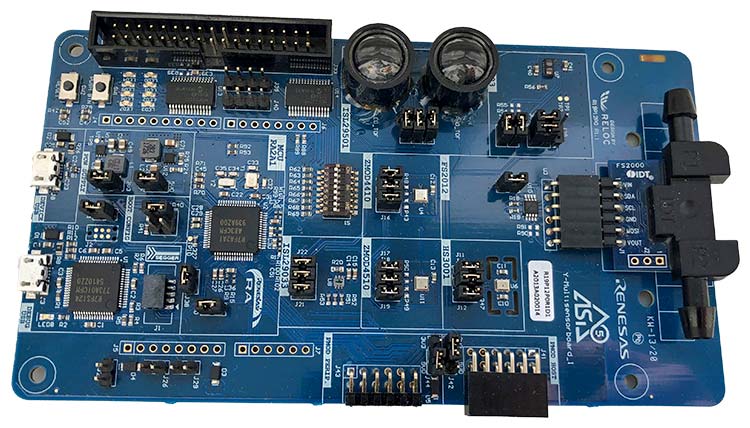

EU036-MULTISENSEVZ Evaluation Board with Optional Sensors
EU036-MULTISENSEVZ Evaluation Board
EU036-MULTISENSEVZ Evaluation Board with Optional Sensors
  • Easily connects to existing ASi-5 slave boards and most Renesas microcontrollers
  • Six sensors on board with headers for additional sensor options
  • Pmod™, Arduino, and dedicated ASi-5 interfaces
  • Integrated Segger J-Link® onboard debugger
  • Just 1x USB cable needed to debug and power everything

Documentation

= Featured Documentation
Type Title Date
Manual - Hardware
EU036-MULTISENSEVZ Hardware User's Guide
PDF 1.93 MB
Manual - Software
EU036-MULTISENSEVZ Software User's Guide
PDF 1.36 MB
Quick Start Guide
EU036-MULTISENSEVZ Quick Start Guide
PDF 742 KB
3 items

Design & Development

Software Downloads
Type Title Date
Software & Tools - Evaluation Software
EU036-MULTISENSEVZ with RA2A1 Firmware
Log in to Download ZIP 89 KB
PCB Design Files
EU036-MULTISENSEVZ Design Files
ZIP 2.00 MB
2 items

Lab on the Cloud

Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Multi-sensor Network Platform for ASI-5

This solution uses the RA2A1 32-bit MCU and shows Renesas’ unique ASi4U-v5 transceiver chip communicating via an ASi-5 bus with multiple sensors.
