Overview

The 74CBTLV3253 is a dual 1-of-4 high-speed multiplexer/demultiplexer. The select (S0, S1) input controls the data flow. The multiplexer/ demultiplexer switches are disabled when the output-enable (OE) input is high. The 74CBTLV3253 operates at -40C to +85C

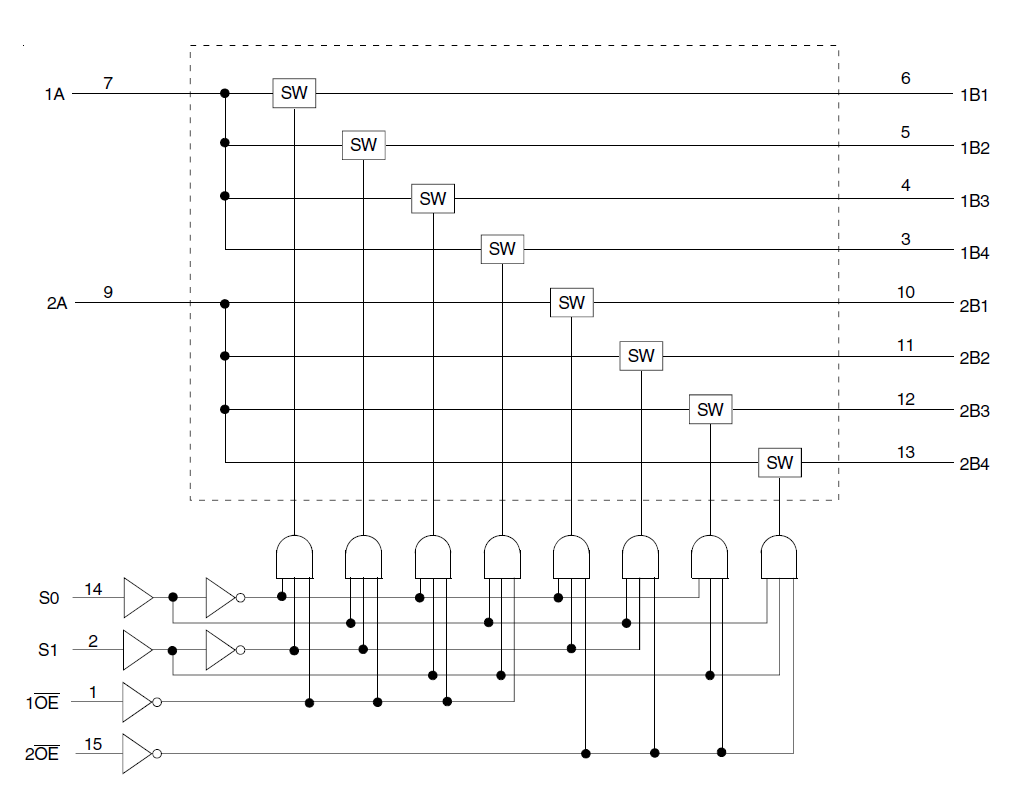

74CBTLV3253 - Block Diagram
74CBTLV3253 - Block Diagram
  • Functionally equivalent to QS3253
  • 5 ohm switch connection between two ports
  • Isolation under power-off conditions
  • Over-voltage tolerant
  • Latch-up performance exceeds 100mA
  • VCC = 2.3V - 3.6V, Normal Range
  • ESD > 2000V per MIL-STD-883, Method 3015
  • > 200V using machine model (C = 200pF, R = 0)
  • Available in 16 pin QSOP and TSSOP packages
