Overview

Description

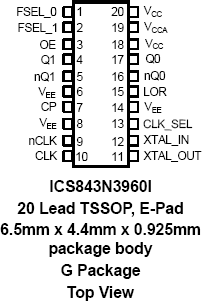

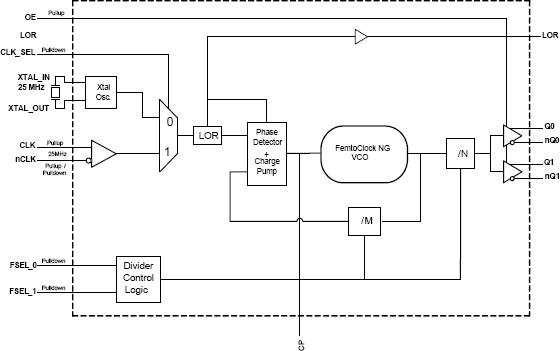

The 843N3960I is an LVPECL clock synthesizer. The 843N3960I can synthesize 100MHz, 125MHz, 156.25MHz, and 212.5MHz from a single 25MHz crystal or reference clock. Utilizing an external loop filter capacitor, the 843N3960I is capable of holdover mode when the main reference clock becomes unstable, making this ideal for redundant timing applications.

Features

  • Fourth Generation FemtoClock® NG PLL technology
  • Two differential LVPECL outputs
  • Crystal oscillator interface designed for 12pF, 25MHz parallel resonant crystal
  • CLK/nCLK input pair can accept the following differential input levels: LVPECL, LVDS, HCSL
  • RMS phase jitter at 100MHz (12kHz – 20MHz): 0.510ps (typical)
  • RMS phase jitter at 125MHz (12kHz – 20MHz): 0.575ps (typical)
  • RMS phase jitter at 156.25MHz (12kHz – 20MHz): 0.504ps (typical)
  • RMS phase jitter at 212.5MHz (12kHz – 20MHz): 0.512ps (typical)
  • 3.3V power supply
  • -40°C to 85°C ambient operating temperature
  • Available in lead-free (RoHS 6) package

Comparison

Applications

Documentation

Design & Development

Models

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.
