Overview

Description

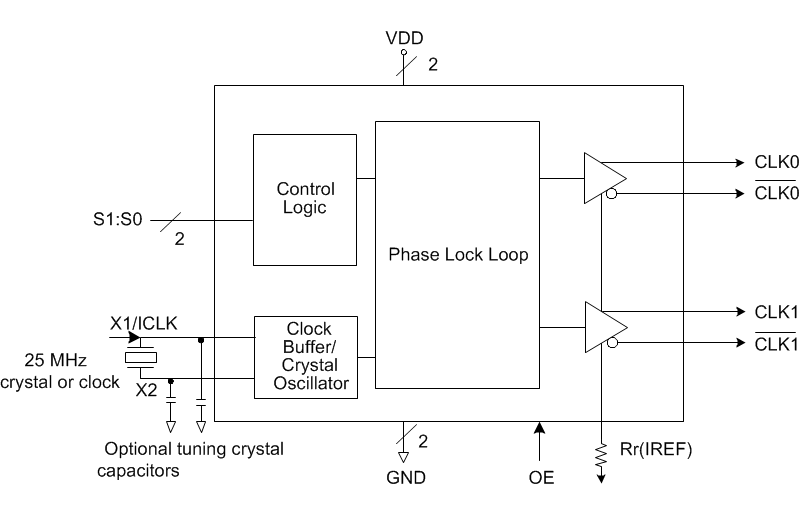

The IDT5V41285 is a PCIe Gen2 compliant clock generator. The device has 2 differential HCSL outputs. The output frequency is selectable via select pins.

Features

  • 16-pin TSSOP and VFQFPN packages; small board footprint
  • Outputs can be terminated to LVDS; can drive a wider variety of devices
  • OE control pin; greater system power management
  • Industrial temperature range available; supports demanding embedded applications
  • Cycle-to-cycle jitter: 80ps
  • Output-to-output skew <50 ps
  • PCIe Gen2 phase jitter <3.0ps RMS
  • Low phase noise: 12kHz to 20MHz <6ps
  • For PCIe Gen3 applications, see the IDT5V41315

Comparison

Applications

Documentation

Design & Development

Models

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Diagram of ECAD Models

Videos & Training

PCIe Clocking Architectures (Common and Separate)

This is the first video in our PCIe series. In this video, we define PCIe architectures, focusing on common and separate clock architectures. Watch the rest of the video series below where Ron will cover the impact of different timing architectures.

Watch the Video Series Below
