DA7210

Obsolete

Ultra-Low Power Stereo Audio Codec with True-GND Headphone Driver

DA7210 datasheet

Overview

The DA7210 is a high-definition audio codec with an integrated true-ground capless headphone driver suitable for a variety of low-power, digital portable audio products.

Featuring a high-efficiency headphone amplifier and minimum supply voltage of 1.8V to simplify interfacing to digital processors, the ultra-low 2.5mW power consumption extends music playback time for battery-operated equipment.

Benefits

  • Stereo Playback/Record: 2.5mW and 3mW at 1.8V
  • Audio performance at 2.5V
  • DAC: 100dB/-85db THD
  • ADC: 95db SNR/-86dB THD
  • Sample rates up to 96kHz supported via multi-slot I2S/PCM interface
  • Stereo fully-differential microphone amplifiers with 5µV input noise and bias
  • DSP 5 Band EQ, input ALC, programmable noise and acoustic enhancement filters

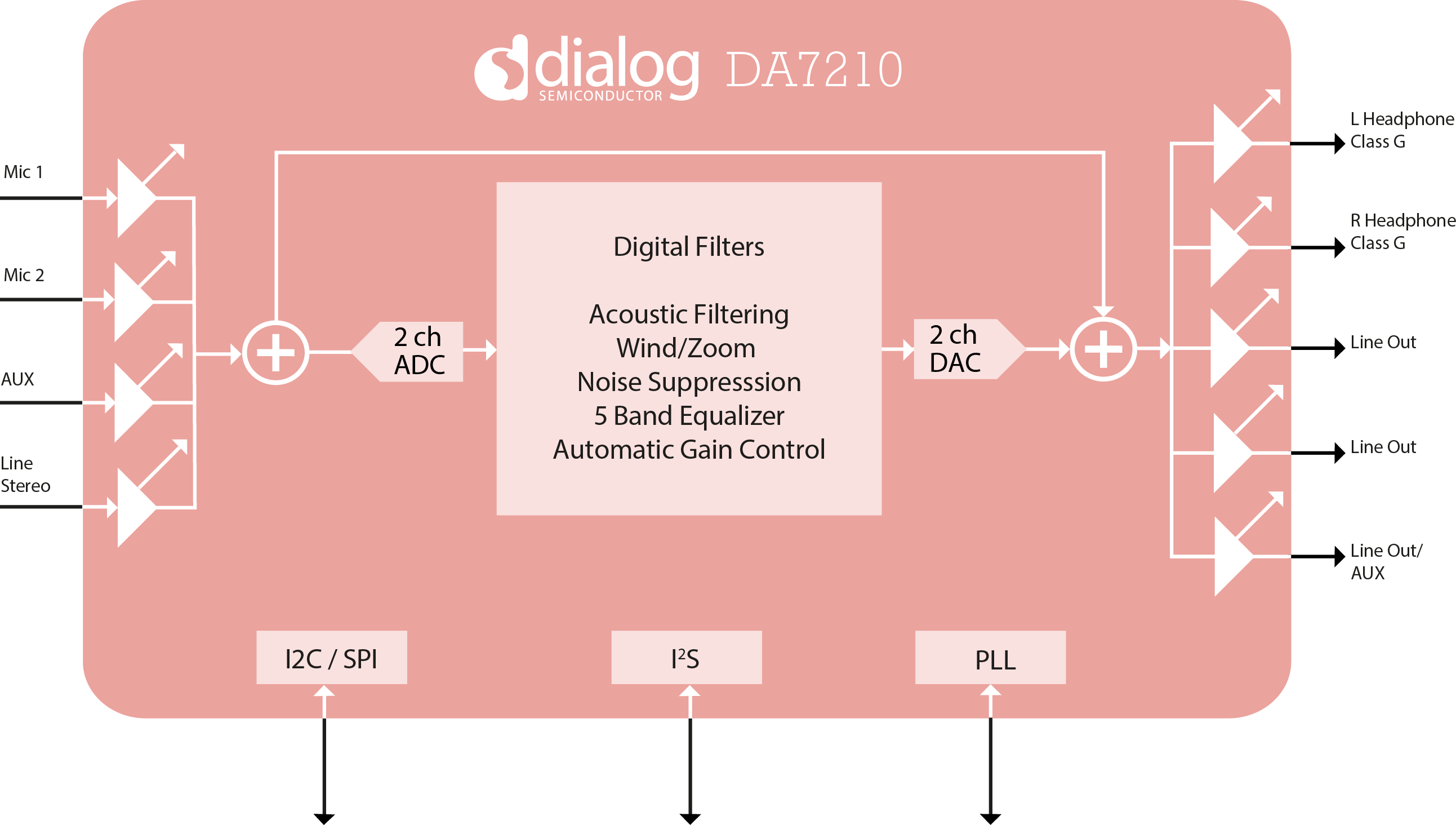

DA7210 Block Diagram
DA7210 Block Diagram
  • High-performance audio codec with integrated PLL
  • True-GND capless Class G 40mW headphone driver with integrated charge pump
  • Supply operation: 1.8V to 2.5V
  • Flexible clocking capability to minimize master clock circuit board routing
  • Fully differential mono voice channel
  • Pop & Click suppression circuitry
  • Multi-mode audio routers and mixers and volume control
  • DSP 5 Band EQ, Input ALC, programmable noise and acoustic enhancement filters
  • 2-/4-wire software control
  • Package: 49-WLCSP 0.4mm
  • Smartphones
  • Personal media players
  • Multimedia handsets
  • Personal navigation devices
