Package Information
| Lead Count (#) | 484 |
| Pkg. Type | CABGA |
| Pkg. Code | BFG484 |
| Pitch (mm) | 0.8 |
| Pkg. Dimensions (mm) | 19.0 x 19.0 x 1.76 |
Environmental & Export Classifications
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| ECCN | NLR |
| HTSUS | 8542390000 |
Product Attributes
| Pkg. Type | CABGA |
| Lead Count (#) | 484 |
| Carrier Type | Tray |
| Moisture Sensitivity Level (MSL) | 3 |
| Pb (Lead) Free | Yes |
| Pb Free Category | e1 SnAgCu |
| Temp. Range | -40 to 85°C |
| Function | LIU |
| Hitless Protection | Yes |
| Host Modes | Yes |
| LOS Level | Programmable |
| Length (mm) | 19.0 |
| Line Rate | E1, T1 |
| MOQ | 84 |
| Package Area (mm²) | 361.0 |
| Pitch (mm) | 0.8 |
| Pkg. Dimensions (mm) | 19.0 x 19.0 x 1.76 |
| Ports (#) | 16 |
| Qty. per Carrier (#) | 84 |
| Qty. per Reel (#) | 0 |
| Requires Terms and Conditions | Does not require acceptance of Terms and Conditions |
| Short/Long Haul | Short haul |
| Tape & Reel | No |
| Thickness (mm) | 1.76 |
| Width (mm) | 19.0 |
Description

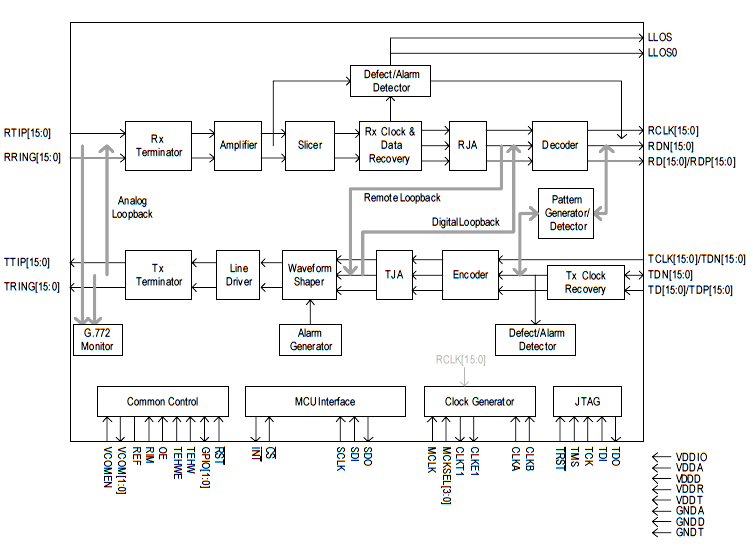

16-Channel T1/E1/J1 Short Haul Line Interface Unit. This device has an adaptive equalizer integrated, performs clock.data recovery, line decoding/encoding and has one jitter attenuator. Optimized to be used in LAN, WAN, Routers, Wireless Base Stations, Gateways etc.
