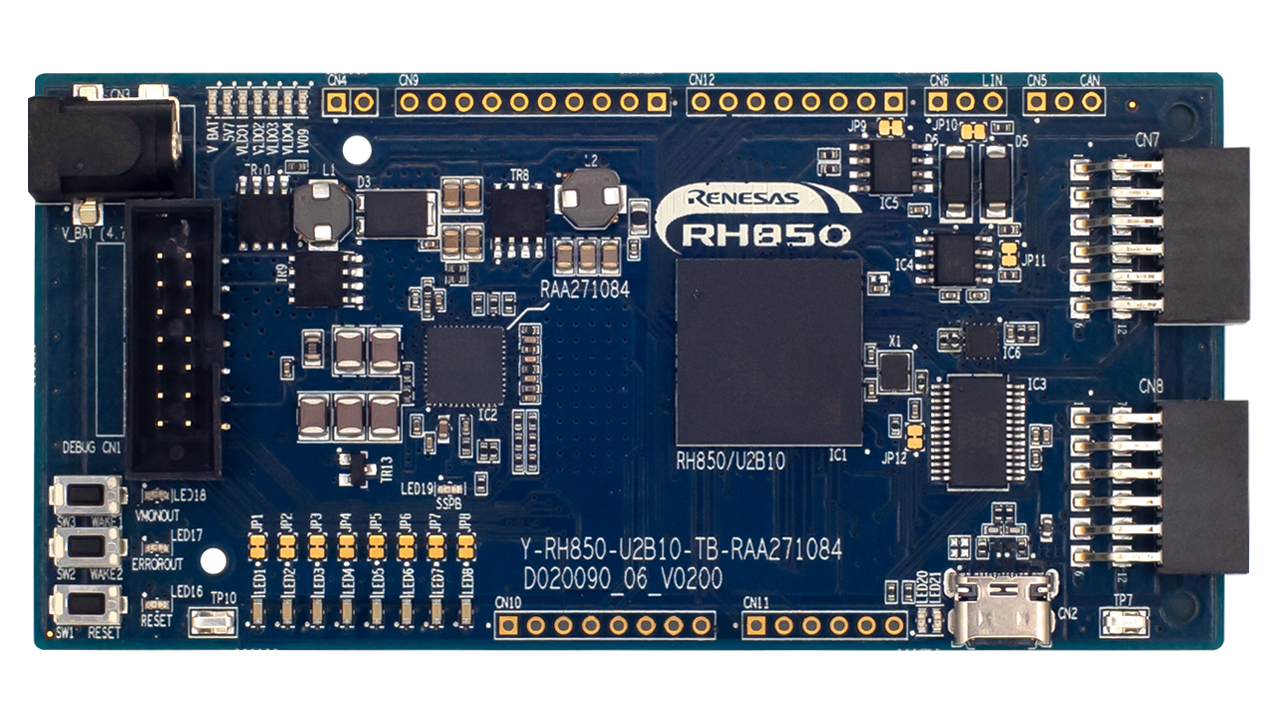

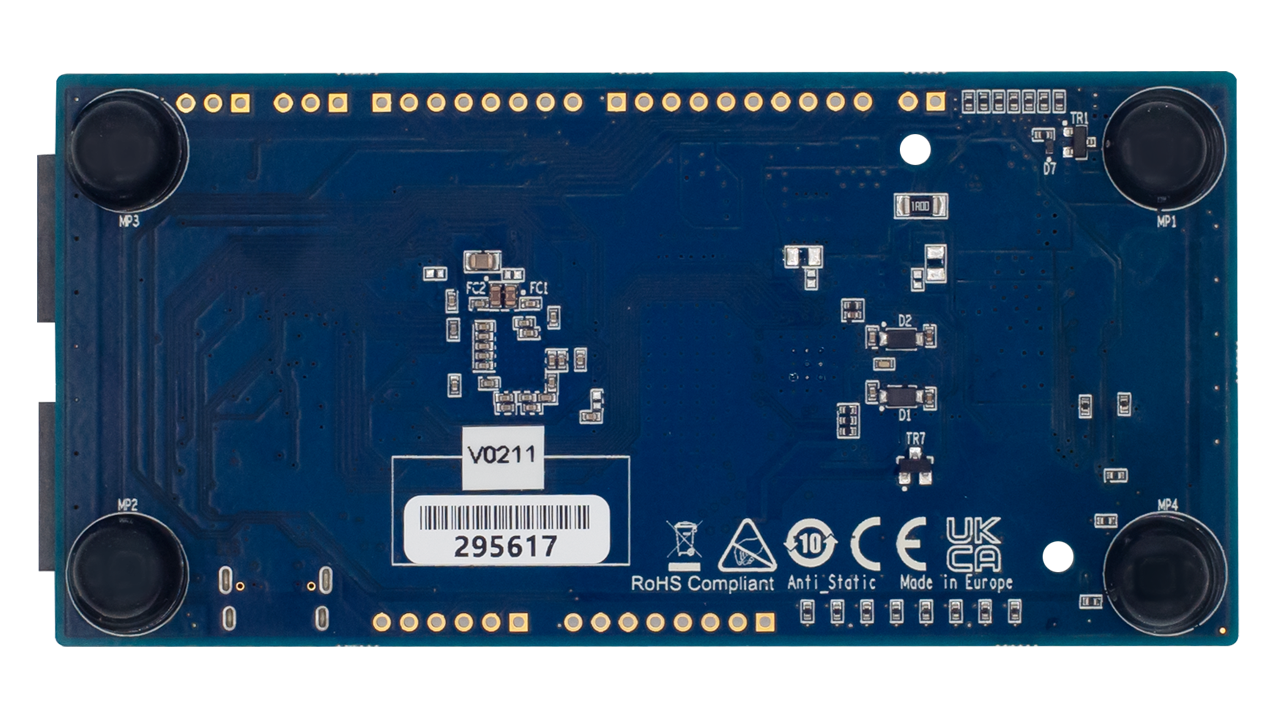

The RH850/U2B10 and Power Management IC Target Board serves as an evaluation board with Arduino form factor. The circuit shows a possible implementation of the RH850/U2B10 MCU and an automotive (ASIL-D) power management IC.
Features
- Compact board design to promote a ‘reference’ schematic (and layout) for RH850/U2B10 device and automotive (ASIL-D) power management IC
- 12V typ. (40V/42V max.) power supply
- RH850/U2B10 292-pin DPS device, incl. main oscillator
- Automotive (ASIL-D) PMIC (incl. required components like FETs, L, C, etc.)
- 14-pin RH850 debug connector
- Three status LEDs
- Eight user LEDs
- Seven power LEDs
- RESET button
- Same board size as the Arduino Classic Family board.
- Port connectors placement for support of Arduino shields, the same as on Arduino board. Function assignment as close to Arduino function set as possible.
- One CAN FD interface
- One LIN interface
- Two PMOD connectors (Type 1A/2A; Type 1A/6)
- One USB-C interface for UART / PC terminal communication
- Operation temperature 0°C <= Ta <= +40°C
