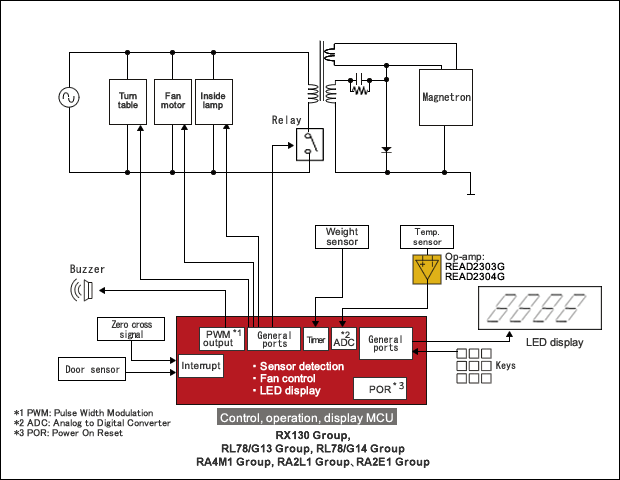

Renesas has a broad lineup of MCU products suitable for microwave ovens. These include the RL78/G13 Group, the RL78/G14 Group, the RX130 Group and the RA4M1 Group and the RA2L1 Group of microcontrollers, which are built around a high-performance CPU and integrate A/D converters to handle a variety of sensor inputs, Built-in Data Flash instead of EEPROM and Timers which has pulse input function and PWM (Pulse Width Modulation) function.
Related Products
| Block | Semiconductor Device | Recommended Products | Features |
|---|---|---|---|
| System Control | MCU | RX130 Group | Enhanced Capacitive Touch function, 5V operation |
| RL78/G13 Group | 5V operation, Rich line-up, can be used in a wide variety of applications | ||
| RL78/G14 Group | Three-phase complementary PWM output, Rich line-up | ||
| RA4M1 Group | Arm Cortex-M4 with LCD Controller and Capacitive Touch for HMI | ||
| RA2L1 Group RA2E1 Group |
Arm Cortex-M23 core, 5V operation, System Control, Capacitive Touch, Safety | ||
| Sensor Output Amplification, Detection | CMOS Op-amp | READ2303G READ2304G |
Full range input/output, high slew rate Low power consumption, high slew rate |
