Overview

This is the evaluation board for the Renesas 5P49V6901 VersaClock 6 programmable clock generator. With RMS phase jitter less than 0.5 picoseconds over the full 12 kHz to 20 MHz integration range, the device meets the stringent jitter requirements of PCI ExpressR Gen 1/2/3, USB 3.0, and 1G/10G Ethernet. VersaClock 6 is ideal for high-performance consumer, networking, industrial, computing, and data-communications applications.

Note that the evaluation board for the VersaClock 6 family is based around the 5P49V6901, which contains a superset of functionality for the other family members.

Evaluation Board for 5P49V6901 VersaClock® 6-front

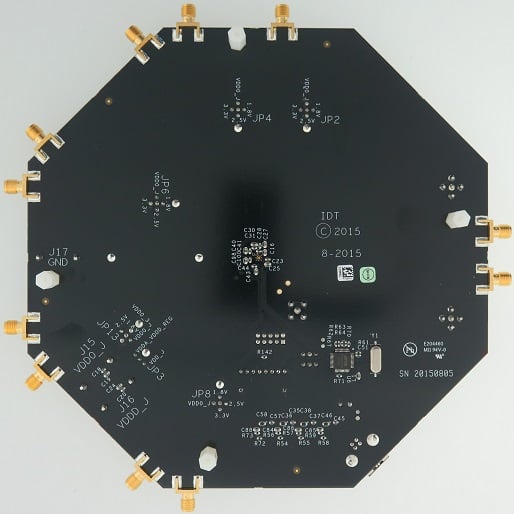

Evaluation Board for 5P49V6901 VersaClock® 6-back
Evaluation Board for 5P49V6901 VersaClock® 6-front
Evaluation Board for 5P49V6901 VersaClock® 6-back
  • 4 Differential Outputs capable of generating any output frequency using  Renesas Timing Commander™ software
  • SMA connectors for outputs
  • When the board is connected to a PC running Renesas Timing Commander Software through USB, the device can be configured and programmed to generate frequencies with best-in-class performance
  • The 25MHz crystal installed on the board can source a reference frequency to the device when CLKIN/CLKINB is not used.
Title Category Buy/Sample
5P49V6901
VersaClock® 6 Low Power Programmable Clock Generator
 Programmable Clocks, Clocks - Low Jitter (<700 fs RMS), VersaClock® Programmable Clocks, Clocks - General Purpose, Timing Solutions for NXP (Freescale) Processors Buy/Quote
5P49V6913
VersaClock® 6 Low Power Programmable Clock Generator
 Programmable Clocks, Clocks - Low Jitter (<700 fs RMS), VersaClock® Programmable Clocks, Clocks - General Purpose Buy/Quote
5P49V6914
VersaClock® 6 Low Power Programmable Clock Generator
 Programmable Clocks, Clocks - Low Jitter (<700 fs RMS), VersaClock® Programmable Clocks, Clocks - General Purpose Buy/Quote

Documentation

Title Type Date
VersaClock® 6 - 5P49V6901 Evaluation Board User Guide
PDF432 KB
Manual - Hardware
VersaClock 6 Timing Commander User Guide
PDF1.93 MB
Manual - Software
VersaClock® 6 Programmable Clock Family Product Brief
PDF891 KB
Product Brief
VersaClock 6 Evaluation Board Schematic
PDF91 KB
Schematic

Design & Development

Software Downloads

Title Type Date
VersaClock 6 Timing Commander Personality File v1.2.0
ZIP5.41 MB
Software & Tools - Other

Product Options

    Processing table
    Part Number
    Output Signaling
    Buy / Sample
    EVKVC66901LCMOS
    play_circleActive
    memory
    		 LVCMOS
    EVKVC66901LPECL
    play_circleActive
    memory
    		 LVPECL
    EVKVC6-6901ALL
    play_circleActive
    memory
    		 HCSL, LVCMOS, LVDS, LVPECL
    EVKVC6-6901HCSL
    play_circleActive
    memory
    		 HCSL
    EVKVC6-6901LVDS
    play_circleActive
    memory
    		 LVDS
