CK440Q Lite PCIe Gen6 Server Clock Generator
Jump to Page Section:
Overview
Description
The 9SQ445 is a CK440Q Lite clock synthesizer for newer Intel-based server platforms. The 9SQ445 is a single-chip, PCIe Gen6 compliant device. It is designed to work as a complete clock solution, or in combination, with DB2000Q-compliant or other clock buffers to provide point-to-point clocks to multiple receiving agents.
Features
- PCIe Gen5 phase jitter < 50fs rms
- PCIe Gen6 phase jitter < 40fs rms
- 3.3V operation
- Three 100MHz dedicated output pairs with individual OE# pins
- Two MXCLK output pairs multiplexable between 100MHz and 25MHz
- One 25MHz dedicated output pair
- 85Ω differential Low-Power HCSL (LP-HCSL) outputs eliminate 24 resistors, saving 39mm2 of area
- Three selectable SMBus addresses
- Supports 0%, -0.3% and -0.5% spread-spectrum amounts
- Side-Band Interface allows real-time hardware control of all output enables

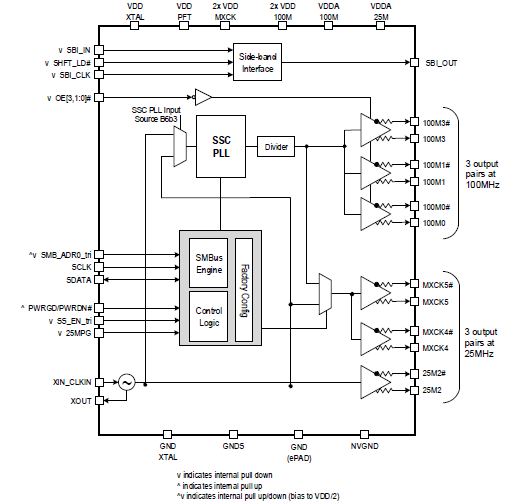

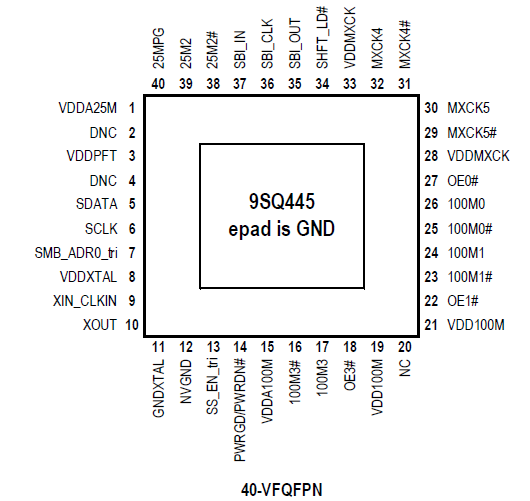

- 5 × 5 mm, 40-VFQFPN
- -40°C to +85°C operating temperature range
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF557 KB
|
Datasheet
|
||
PDF91 KB
|
Application Note
|
||
PDF1.99 MB
|
Application Note
|
||
PDF78 KB
|
Application Note
|
||
PDF322 KB
|
Application Note
|
||
PDF480 KB
|
Application Note
|
||
PDF235 KB
|
Application Note
|
||
PDF115 KB
|
Application Note
|
||
PDF233 KB
|
Application Note
|
||
PDF565 KB
|
Application Note
|
||
Other
|
|||
PDF2.40 MB
|
Overview
|
||
PDF1.83 MB
|
Overview
|
||
PDF1.35 MB
|
White Paper
|
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| VFQFPN | 40 | -40 to 85°C | 85 | Yes | Tray | Get Samples, | |
| VFQFPN | 40 | -40 to 85°C | 85 | Yes | Reel |
