Programmable Mixed-signal, ASIC & IP Products

GreenPAK™ is a broad family of cost-effective non-volatile memory (NVM) configurable hardware devices that enable innovators to integrate many system functions into a single custom circuit, and in the process minimize component count, board space, and power consumption. Using the free GUI Go Configure Software Hub and GreenPAK Development Kit, designers can create and configure their perfect custom circuit in minutes.

Visit the GreenPAK Applications page to access 250+ application notes with design files and explore the GreenPAK Cookbook for 90+ application circuits featuring GreenPAK and learn how to get started. Streamline your design process with our Go Configure Software Hub, utilizing pre-existing design files for each application note and cookbook design, or start fresh with a new design. Review the information now and unlock the potential of GreenPAK for your projects!

Learn More About GreenPAK

Designing with GreenPAK

Use Case

IoT Power Charger Original Design

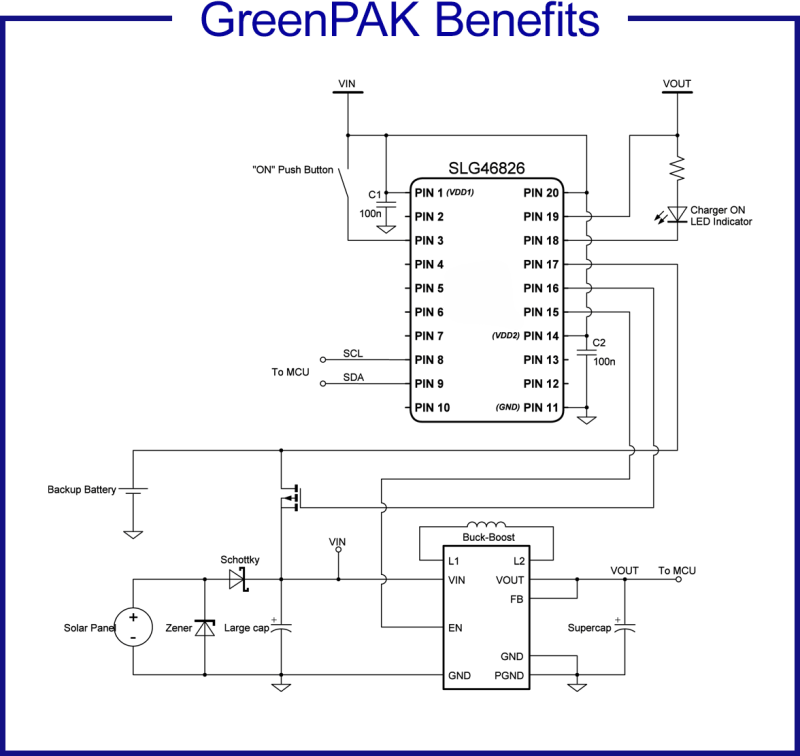

IoT Power Charger Greenpak Benefits

Design reduced by:

  • 5 ICs
  • 2 NMOS transistors
  • 14 passive components

Categories

HVPAK™

Take advantage of the combined mixed-signal logic and high-voltage H-bridge functionality

AnalogPAK™

Create your own unique analog circuits combined with GreenPAK configurable logic

Automotive GreenPAK™ Programmable Mixed-Signal ICs

Integrate many system functions into a single AEC-Q100 qualified IC

Dual Supply GreenPAK™

Interface two independent voltage domains flexibly

GreenPAK™ with Asynchronous State Machine

Develop your own custom state machine designs

GreenPAK™ with In-System Programmability

Easily modify the configuration or add functionality to the devices by programming the NVM

GreenPAK™ with Load Switches

Configure the GreenPAK, while at the same time controlling high drive current power switches

GreenPAK™ with Low Drop Out Regulators (LDO)

Discover the concept of "Flexible Power Islands"

Product Selection Table

    Processing table
    Special Features
    GPIOs (#)
    Nominal VDD
    VDD2 (V)
    ACMP Analog Comparator (#)
    DCMP
    CNT/DLY (Max) (#)
    LUTs (Max) (#)
    DFF (Max) (#)
    Pipe Delay
    # of Programable Delays (#)
    Oscillator Type
    Temperature Sensor (ch) (#)
    Interface
    Memory Type
    Pkg. Dimensions (mm)
    Pkg. Type
    Lead Count (#)
    Temp. Range
    Part Number
    SLG46108
    GreenPAK™ Programmable Mixed-Signal Matrix    		 6 1.71-5.5 4 10 4 8-stage 1 RC OSC OTP 1.0 x 1.2 TQFN 8 -40 to +85
    SLG46110
    GreenPAK™ Programmable Mixed-Signal Matrix    		 8 1.71-5.5 2 4 10 4 8-stage 1 RC OSC OTP 1.6 x 1.6 TQFN 12 -40 to +85
    SLG46116
    GreenPAK™ Programmable Mixed-Signal Matrix with P-FET Power Switch without Discharge    		 P-FET (1.25A, w/o Discharge, Soft-start) 7 1.71-5.5 2 4 10 4 8-stage 1 RC OSC OTP 1.6 x 2.5 TQFN 14 -40 to +85
    SLG46117
    GreenPAK™ Programmable Mixed-Signal Matrix with P-FET Power Switch with Discharge    		 P-FET (1.25A, w/ Discharge, Soft-start) 7 1.71-5.5 2 4 10 4 8-stage 1 RC OSC OTP 1.6 x 2.5 TQFN 14 -40 to +85
    SLG46120
    GreenPAK™ Programmable Mixed-signal Matrix    		 10 1.71-5.5 2 4 16 8 8-stage 1 RC OSC OTP 1.6 x 1.6 TQFN 12 -40 to +85
    SLG46121
    GreenPAK™ Programmable Mixed-signal Matrix with Dual Supply    		 9 1.71-5.5 1.71 - 5.5 2 4 16 8 8-stage 1 RC OSC OTP 1.6 x 1.6 TQFN 12 -40 to +85
    SLG46127
    GreenPAK™ Programmable Mixed-signal Matrix with Dual 44 mΩ / 2 A P-FET    		 2x P-FET (44Ω, 2A) 6 1.71-5.5 2 4 10 4 8-stage 1 RC OSC OTP 1.6 x 2.0 MSTQFN 16 -40 to +85
    SLG46140
    GreenPAK™ Programmable Mixed-signal Matrix    		 3x PWM, ADC (8-bit, SAR), 2x DAC, Pattern Generator 12 1.71-5.5 2 4 16 6 16-stage 1 RC OSC, LF OSC, Ring OSC SPI OTP 1.6 x 2.0 TQFN 14 -40 to +85
    SLG46169
    GreenPAK™ Programmable Mixed-signal Matrix    		 12 1.71-5.5 2 7 18 6 16-stage 1 RC OSC OTP 2.0 x 2.2 TQFN 14 -40 to +85
    SLG46170
    GreenPAK™ Programmable Mixed-signal Matrix    		 12 1.71-5.5 8 17 6 16-stage 1 RC OSC OTP 2.0 x 2.2 TQFN 14 -40 to +85
    SLG46517
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Two P-FET Power Switches    		 ASM (8 states), 2x P-FET (44Ω, 2A), Pattern Generator 16 1.71-5.5 4 7 17 8 16-stage 1 RC OSC, Ring OSC, Crystal OSC I2C OTP 2.0 x 3.0 MSTQFN 28 -40 to +85
    SLG46533
    GreenPAK™ Programmable Mixed-signal Matrix    		 Pattern Generator 18 1.71-5.5 4 7 25 15 16-stage 1 Conf. OSC, Ring OSC, Crystal OSC 1 I2C OTP 2.0 x 2.2 , 2.0 x 3.0 MSTQFN, TQFN 22, 20 -40 to +85
    SLG46534
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine    		 ASM (8 states), Pattern Generator 12 1.71-5.5 3 7 17 8 16-stage 1 Conf. OSC, RC OSC, Crystal OSC I2C OTP 2.0 x 2.2 TQFN 14 -40 to +85
    SLG46535
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual Supply    		 ASM (8 states), Pattern Generator 11 1.71-5.5 1.71 - 5.5 3 7 17 8 16-stage 1 Conf. OSC, Ring OSC, Crystal OSC I2C OTP 2.0 x 2.2 TQFN 14 -40 to +85
    SLG46536
    GreenPAK™ Programmable Mixed-signal Matrix    		 Pattern Generator 12 1.71-5.5 3 7 25 15 16-stage 1 Conf. OSC, Ring OSC, Crystal OSC I2C OTP 2.0 x 2.2 TQFN 14 -40 to +85
    SLG46537
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine    		 ASM (8 states), Pattern Generator 18 1.71-5.5 4 7 17 8 16-stage 1 Conf. OSC, RC OSC, Crystal OSC 1 I2C OTP 2.0 x 2.2 , 2.0 x 3.0 MSTQFN, TQFN 22, 20 -40 to +85
    SLG46538
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual Supply    		 ASM (8 states), Pattern Generator 17 1.71-5.5 1.71 - 5.5 4 7 17 8 16-stage 1 Conf. OSC, RC OSC, Crystal OSC 1 I2C OTP 2.0 x 2.2 , 2.0 x 3.0 MSTQFN, TQFN 22, 20 -40 to +85
    SLG46538-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual supply    		 ASM (8 states), Pattern Generator 17 1.71-5.5 1.71 - 5.5 4 7 17 8 16-stage 1 Conf. OSC, RC OSC, Crystal OSC 1 I2C OTP 3.5 x 3.5 TQFN 20 -40 to +125
    SLG46580
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and LDOs    		 ASM (8 states), 4x LDO, RTC 9 2.3-5.5 4 5 15 9 16-stage 1 Conf. OSC, LF OSC 1 I2C OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG46582
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and LDOs    		 ASM (8 states), 2x LDO, RTC 9 2.3-5.5 4 5 15 9 16-stage 1 Conf. OSC, LF OSC 1 I2C OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG46583
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and LDOs    		 ASM (8 states), LDO, RTC 9 2.3-5.5 4 5 15 9 16-stage 1 Conf. OSC, LF OSC 1 I2C OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG46585
    GreenPAK™ Programmable Mixed-Signal Matrix with Asynchronous State Machine, LDOs, and DC/DC Converter    		 ASM (8 states), 4x LDO, DC/DC, RTC 7 2.5-5.5 4 5 16 9 16-stage 1 Conf. OSC, LF OSC 1 I2C OTP 3.0 x 3.0 MSTQFN 29 -40 to +85
    SLG46620
    GreenPAK™ Programmable Mixed-signal Matrix    		 3x PWM, ADC (8-bit, SAR), 2x DAC, Pattern Generator 18 1.71-5.5 6 10 26 12 2x 16-stage 2 RC OSC, LF OSC, Ring OSC SPI OTP 2.0 x 3.0 , 6.4 x 6.5 TQFN, TSSOP 20 -40 to +85
    SLG46620-A
    Automotive GreenPAK Programmable Mixed-signal Matrix    		 3x PWM, ADC (8-bit, SAR), 2x DAC, Pattern Generator 18 1.71-3.6 6 3 10 26 12 2x 16-stage 2 RC OSC, LF OSC, Ring OSC SPI OTP 6.5 x 6.4 TSSOP 20 -40 to +125
    SLG46621
    GreenPAK™ Programmable Mixed-signal Matrix with Dual Supply    		 3x PWM, ADC (8-bit, SAR), 2x DAC, Pattern Generator 17 1.71-5.5 1.71 - 5.5 6 3 10 26 12 2x 16-stage 2 RC OSC, LF OSC, Ring OSC SPI OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG46625-A
    Automotive GreenPAK Programmable Mixed-signal Matrix    		 3x PWM, ADC (8-bit, SAR), 2x DAC, Pattern Generator 18 1.71-5 6 3 10 26 12 2x 16-stage 2 RC OSC, LF OSC, Ring OSC SPI OTP 3.5 x 3.5 TQFN 20 -40 to +125
    SLG46721
    GreenPAK™ Programmable Mixed-signal Matrix    		 18 1.71-5.5 4 7 18 6 16-stage 1 RC OSC OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG46722
    GreenPAK™ Programmable Mixed-signal Matrix    		 18 1.71-5.5 8 17 6 16-stage 1 RC OSC OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG46811
    GreenPAK™ Programmable Mixed-signal Matrix    		 92 x 8 bit Pattern Generator 10 2.3-5.5 1 6 18 17 4x 8-bit Shift Regs 1 Conf. OSC, Ring OSC 1 I2C OTP 1.6 x 1.6 TQFN 12 -40 to +85
    SLG46824
    GreenPAK™ Programmable Mixed-signal Matrix with In-System Programmability    		 Pattern Generator 17 2.3-5.5 1.71 - 5.5 2 8 19 17 16-stage 1 RC OSC, LF OSC, Ring OSC I2C MTP 2.0 x 3.0 , 6.4 x 6.5 TQFN, TSSOP 20 -40 to +85
    SLG46826
    GreenPAK™ Programmable Mixed-signal Matrix with In-System Programmability    		 Pattern Generator 17 2.3-5.5 1.71 - 5.5 4 8 19 17 16-stage 1 RC OSC, LF OSC, Ring OSC 1 I2C MTP 2.0 x 3.0 , 6.4 x 6.5 TQFN, TSSOP 20 -40 to +85
    SLG46827-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix with In-System Programmability    		 Pattern Generator 17 2.3-5.5 1.71 - 5.5 4 8 19 17 16-stage 1 RC OSC, LF OSC, Ring OSC 1 I2C MTP 6.5 x 6.4 TSSOP 20 -40 to +125
    SLG46855
    GreenPAK™ Programmable Mixed-signal Matrix    		 Pattern Generator 12 2.3-5.5 4 8 23 21 16-stage 1 RC OSC, LF OSC, Ring OSC 1 I2C OTP 1.6 x 2.0 TQFN 14 -40 to +85
    SLG46855-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix    		 Pattern Generator 12 2.3-5.5 4 8 23 21 16-stage 1 RC OSC, LF OSC, Ring OSC 1 I2C OTP 3.0 x 3.0 TQFN 14 -40 to +125
    SLG46857-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix    		 Pattern Generator 12 2.3-5.5 4 8 23 21 16-stage 1 RC OSC, LF OSC, Ring OSC 1 I2C OTP 3.0 x 3.0 TQFN 14 -40 to +125
    SLG46867
    GreenPAK™ Programmable Mixed-signal Matrix with Dual Supply    		 2x P-FET (44Ω, 2A), Pattern Generator 10 2.3-5.5 4 8 23 21 16-stage 1 RC OSC, LF OSC, Ring OSC 1 I2C OTP 1.6 x 3.0 MSTQFN 20 -40 to +85
    SLG46880
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual Supply    		 ASM (12 states), Pattern Generator 28 2.3-5.5 2.3 - 5.5 4 5 12 5 16-stage 1 RC OSC, LF OSC, Ring OSC, Crystal OSC 1 I2C OTP 4.0 x 4.0 TQFN 32 -40 to +85
    SLG46880-A
    Automotive GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual Supply    		 ASM (12 states), Pattern Generator 28 2.3-5.5 2.3 - 5.5 4 5 12 5 16-stage 1 RC OSC, LF OSC, Ring OSC, Crystal OSC 1 I2C OTP 5.0 x 5.0 TQFN 32 -40 to +125
    SLG46881
    GreenPAK™ Programmable Mixed-signal Matrix with Asynchronous State Machine and Dual Supply    		 ASM (12 states), Pattern Generator 28 2.3-5.5 0.95 - 1.98 4 5 12 5 16-stage 1 RC OSC, LF OSC, Ring OSC, Crystal OSC 1 I2C OTP 4.0 x 4.0 TQFN 32 -40 to +85
    SLG47004
    Programmable Mixed-Signal Matrix with In-System Programmability and Advanced Analog Features    		 2x Op Amp or 1x In-Amp, 2x Rheostat, 2x An Switch, 2-Ch Auto-Trim, EEPROM, Pattern Generator 8 2.4-5.5 3 7 20 18 16-stage 1 RC OSC, LF OSC, Ring OSC 1 Absolute Voltage, GPIO, I2C, Switch Output MTP 3.0 x 3.0 TQFN 24 -40 to +85
    SLG47105
    HVPAK™ Programmable Mixed-Signal Matrix with Four Outputs with Operating Voltage up to 13.2 V and up to 2 A Current per Output    		 2x H-/4x Half- Bridge, 2x PWM, 2x CCMP, Int&Diff Amp, Pattern Generator 12 2.3-5.5 3 - 13.2 2 5 17 15 16-stage 1 LF OSC, Ring OSC 1 I2C OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG47115
    HVPAK™ Programmable Mixed-Signal Matrix with Two Outputs with Operating Voltage up to 26.4 V and up to 3 A Current per Output    		 1x H-/2x Half- Bridge, 2x PWM, CCMP, Int&Diff Amp, Pattern Generator 10 2.3-5.5 4.5 - 26.4 2 5 17 15 16-stage 1 LF OSC, Ring OSC 1 I2C OTP 2.0 x 3.0 TQFN 20 -40 to +85
    SLG47512
    GreenPAK™ Programmable Mixed-signal Matrix    		 Pattern Generator 10 1.0-1.65 2 8 23 22 3x 4-bit; 10x 8-bit; 1x 16-bit Shift Regs 1 LF OSC, Ring OSC 1 I2C OTP 1.6 x 1.6 TQFN 12 -40 to +85
    SLG47513
    GreenPAK™ Programmable Mixed-signal Matrix    		 Pattern Generator 14 1.0-1.65 2 8 23 22 3x 4-bit; 10x 8-bit; 1x 16-bit Shift Regs 1 LF OSC, Ring OSC 1 I2C OTP 1.6 x 1.6 MSTQFN 16 -40 to +85
    SLG88103
    Micropower Operational Amplifier for GreenPAK™    		 Op Amp 0 1.8 - 5.0 0 0 0 0 0 2.0 x 2.0 STDFN 10 -40 to +85
    SLG88104
    Micropower Operational Amplifier for GreenPAK™    		 Op Amp 0 1.8 - 5.0 0 0 0 0 0 2.0 x 3.5 STQFN 20 -40 to +85
