Dual LDO with Low Noise, Very High PSRR, and Low IQ
Jump to Page Section:
Overview
Description
ISL9000A is a high performance dual LDO capable of sourcing 300mA current from each output. It has a low standby current and very high PSRR and is stable with output capacitance of 1µF to 10µF with ESR of up to 200mΩ. The device integrates an individual Power-On-Reset (POR) function for each output. The POR delay for VO2 can be externally programmed by connecting a timing capacitor to the CPOR pin. The POR delay for VO1 is internally fixed at approximately 2ms. A reference bypass pin is also provided for connecting a noise filtering capacitor for low noise and high-PSRR applications. The quiescent current is typically only 42μA with both LDO’s enabled and active. Separate enable pins control each individual LDO output. When both enable pins are low, the device is in shutdown, typically drawing less than 0. 1μA. Several combinations of voltage outputs are standard. Output voltage options for each LDO range from 1. 5V to 3. 3V. Other output voltage options may be available upon request.

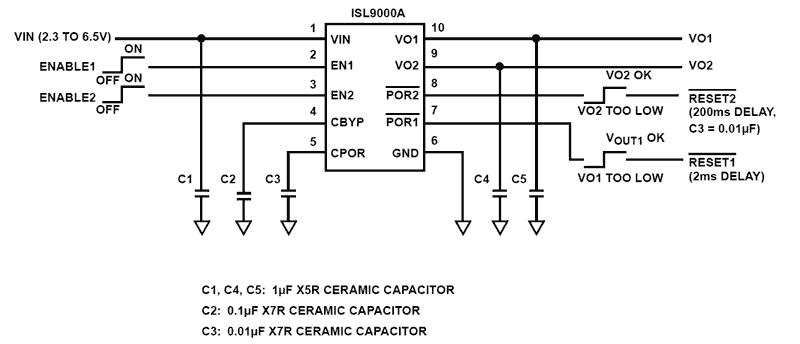

Features
- Integrates two 300mA high performance LDOs
- Excellent transient response to large current steps
- ±1.8% accuracy over all operating conditions
- Excellent load regulation: <0.1% voltage change across full range of load current
- Low output noise: typically 30μVRMS @ 100μA (1.5V)
- Very high PSRR: 90dB @ 1kHz
- Extremely low quiescent current: 42μA (both LDOs active)
- Wide input voltage capability: 2.3V to 6.5V
- Low dropout voltage: typically 200mV @ 300mA
- Stable with 1μF to 10μF ceramic capacitors
- Separate enable and POR pins for each LDO
- Soft-start and staged turn-on to limit input curr ent surge during enable
- Current limit and overheat protection
- Tiny 10 Ld 3mmx3mm DFN package
- -40°C to +85°C operating temperature range
- Pb-free (RoHS compliant)
Applications
Applications
- PDAs, Cell Phones and Smart Phones
- Portable Instruments, MP3 Players
- Handheld Devices including Medical Handheld
Documentation
|
|
Date | |
|---|---|---|
| PDF 718 KB | Datasheet | |
| PDF 5.51 MB 日本語 | Brochure | |
| PDF 202 KB | Product Change Notice | |
| PDF 326 KB | Product Change Notice | |
| PDF 200 KB | End Of Life Notice | |
| PDF 363 KB | Product Advisory | |
| PDF 509 KB | Application Note | |
| PDF 397 KB | Application Note | |
| PDF 159 KB | Manual - Development Tools | |
9 items
|
||
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Pkg. Type |
Carrier Type |
MOQ |
Buy / Sample |
|
|---|---|---|---|---|
| Part Number | ||||
ISL9000AIRCCZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRCCZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRCJZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRCJZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRFCZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRFCZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRFDZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRFDZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRFJZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRFJZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRJBZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRJBZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRJNZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRJNZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRKCZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRKCZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRKFZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRKFZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRKJZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRKJZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRKKZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRKKZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRMGZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRMGZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRMNZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRMNZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRNFZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRNFZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRNJZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRNJZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
ISL9000AIRNNZ Active Samples Available |
DFN | Tube | 2000 | Get Samples, |
ISL9000AIRNNZ-T Active Samples Available |
DFN | Reel | 6000 | Get Samples, |
