Highly Integrated Boost Switching Regulator Evaluation Board
Jump to Page Section:
Overview
Description

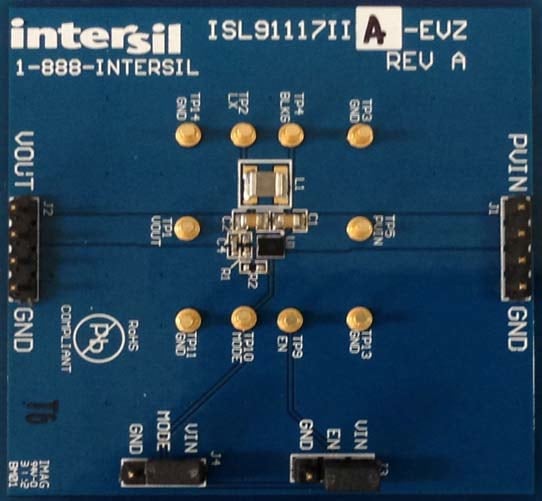

The ISL91117IIA-EVZ evaluation platform allows for a quick evaluation of the high performance features of the ISL91117 high current boost regulator. The ISL91117 is a highly-integrated boost switching regulator for battery powered applications. The device provides a power supply solution for products using dual-cell or three-cell alkaline, NiCd or NiMH, or one-cell Li-ion or Li-polymer batteries.
Features
- Small, compact design
- Jumper selectable EN (enabled/disabled)
- Jumper selectable mode (auto-PFM/forced-PWM)
- Connectors, test points and jumpers for easy probing
Applications
Applications
- Smartphones and tablets
- Wireless communication devices
- Products including portable HDMI and USB On-the-Go (USB-OTG)
Documentation
| Document title | Document type Type | Date Date | |
|---|---|---|---|
| PDF 636 KB | Guide | ||
| PDF 856 KB | Datasheet | ||
2 items
|
|||
