Overview
Description

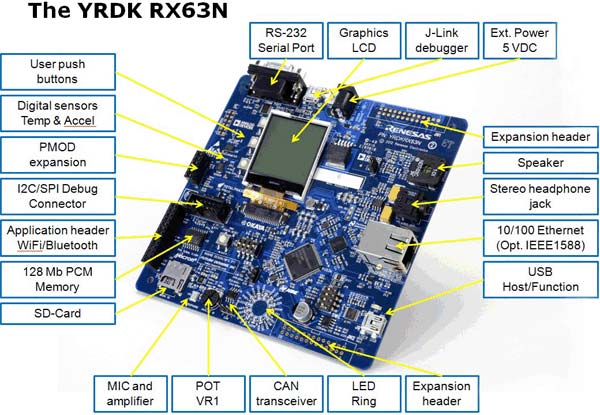

The Renesas Demonstration Kit (RDK) for RX63N is an evaluation and demonstration tool for Renesas RX63N microcontrollers. The goal is to provide the user with a powerful debug and demonstration platform targeted at common applications. The board also provides a useful platform for evaluating the Renesas suite of development tools for coding and debugging, using the High-performance Embedded Workshop (HEW) IDE as well as programming the device using the on-board SEGGER J-Link JTAG debugger.
The Renesas Demonstration Kit for RX63N is also the hardware platform that is included in a special RX63N-specific edition of Micrium's book on the µC/OS-III Real Time Kernel. The book and board combo targets serious programmers and college students who need to understand and create programs based on the timesaving features of a real-time kernel. Part I of the text covers the internals of the new µC/OS-III real-time kernel. The emphasis is on the internals, features, API calls, and where and how to use an RTOS, all presented in a clear and useful way, and accompanied by a wealth of diagrams. Part II provides specific examples for using µC/OS-III on the new Renesas RX63N microcontroller.

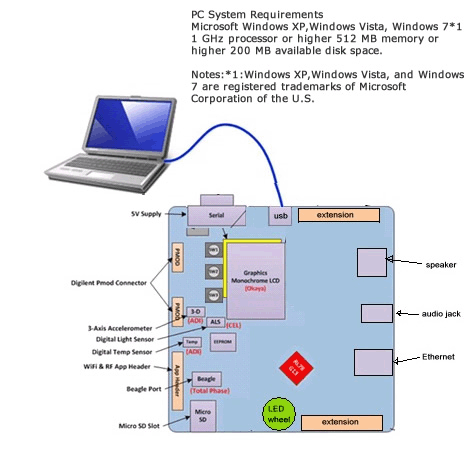

Features
- Stereo audio driver connected to the PWM interface
- On-board microphone to demonstrate sampling, FFT/FPU capabilities
- Volume Control Potentiometer
- Micro SD card interface for audio and data files
- 3–Phase motor control algorithm representation with LEDs
- Motor control algorithm speed variation through volume control potentiometer
- 3–Axis Accelerometer (Digital)
- User pushbutton switches
- 10/100 Ethernet Interface connected to an internal Ethernet MAC (1588 compatible)
- USB Interface connected to an internal USB controller (Host, Device and OTG)
- RS-232 Interface
- CAN Interface
- I2C, SPI with Debug through the Beagle connector from Total Phase

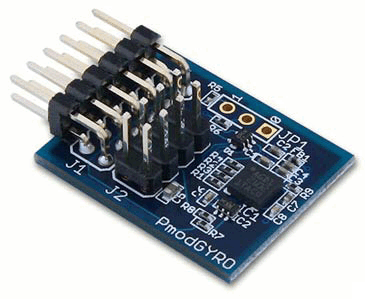

- PMOD connections to support a variety of generic PMOD devices (WiFi, Bluetooth, RF, and much more).
- On-board J-Link OB for high-quality source code debugging
Applications
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 1.52 MB | |
| Manual - Development Tools | PDF 4.68 MB | |
| Tool News - Release | PDF 111 KB 日本語 | |
| Tool News - Release | PDF 233 KB 日本語 | |
| PCB Design Files | RDKRX63N Design Data
|
|
5 items
|
||
Design & Development
Software & Tools
Software Downloads
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Upgrade - IDE | e² studio 2020-10 Linux Host (for RA,RZ)
|
|
| Upgrade - IDE | e² studio 2020-04 installer (Offline installer)
|
|
| Upgrade - IDE | e² studio 6.3.0 installer (Offline installer)
|
|
| Software & Tools - Other | Demonstrations software Sample Projects
|
|
| Software & Tools - Other | Demonstrations software installation Package(Multipart Download)
|
|
| Software & Tools - Other | Sample Projects for RDK RX63N
|
|
| Software & Tools - Other | MAC utility
|
|
| Software & Tools - Other | Demonstrations software installation Package
|
|
| Upgrade - IDE | High-performance Embedded Workshop V.4.09.01 Full Update
|
|
| Library | PDF 678 KB | |
10 items
|
||
Product Options
| Part Number | Status | Stock | Sampleable | Pb (Lead) Free | ECCN (US) | HTS (US) | RoHS Compliant | China RoHS Compliant |
|---|---|---|---|---|---|---|---|---|
| YRDKRX63N | Obsolete | Out of Stock | N/A | No | 3A991.a.2 | 8471.50.0150 | No | No |
