Evaluation Kit for RA4W1 MCU Group
Jump to Page Section:
Overview
Description
The EK-RA4W1 evaluation kit enables users to effortlessly evaluate the features of the RA4W1 MCU Group and develop embedded systems applications using Renesas' Flexible Software Package (FSP) and various IDEs.
Getting Started
Running the Quick Start Example Project
- Power up the EK-RA4W1 board through the USB debug port (J11) using the micro USB device cable connected to a 5V power source. The green power LED will light up.
- The Quick Start example project will begin to execute blinking the red user LED.
- Refer to the EK-RA4W1 – Quick Start Guide (ZIP) to explore additional functionality of the Quick Start example project.
Developing Embedded Applications
- Modifying the Quick Start example project – Refer to the EK-RA4W1 Quick Start Guide for instructions on importing, modifying and building the Quick Start example project.
- Start with one of the many other example projects – Choose from many example projects to learn about different peripherals of the RA4W1 MCU group. These example projects can serve as excellent starting points for you to develop your custom applications.
Building Custom Hardware
- Start by building a functional prototype - Utilize the EK-RA4W1 board with your choice of ecosystem add-ons.
- Build custom hardware – Develop custom hardware by referring to the design and manufacturing information provided in the EK-RA4W1 design package.
Features
- MCU Native Pin Access
- R7FA4W1AD2CNG MCU
- 48MHz, Arm Cortex®-M4 core
- 512kB Code Flash, 96kB SRAM
- 56 pins, QFN package
- MCU headers: 28 pins x2
- MCU current measurement points
- Ecosystem & System Control Access
- USB Full Speed device
- 5V input through USB debug
- Debug on-board (Segger J-Link®)
- One Digilent PmodTM (SPI)
- User LED
- Mechanical user button
- MCU boot configuration jumper
- ArduinoTM UNO connector

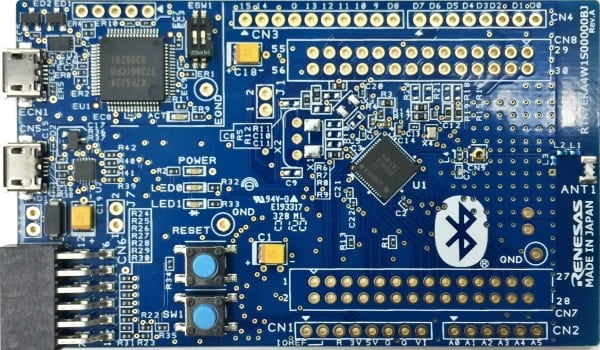

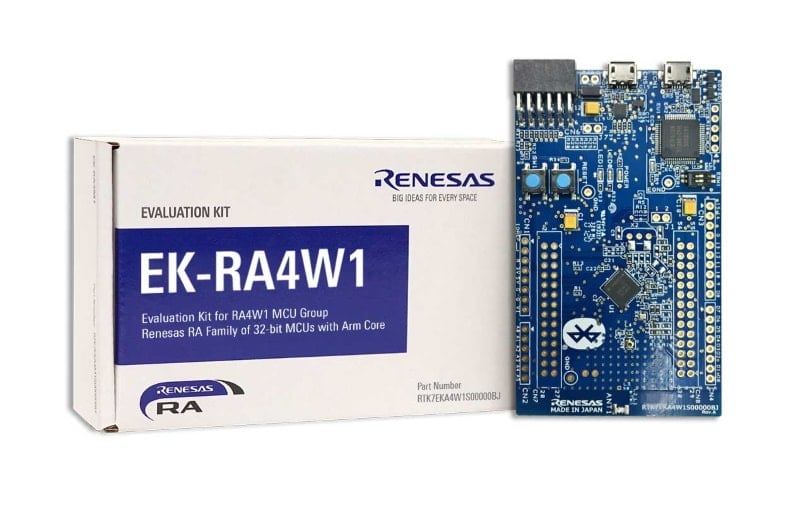

- Kit Contents: EK-RA4W1 board
Applications
Documentation
|
|
Date | |
|---|---|---|
| ZIP 1.71 MB | Other | |
| PDF 1.12 MB 日本語 | Manual - Development Tools | |
| ZIP 1.39 MB | Schematic | |
| PPS 40.98 MB | Presentation | |
| PDF 66 KB | Application Note | |
| PDF 465 KB 日本語 | Flyer | |
| PDF 3.75 MB 简体中文 | Application Note | |
| PDF 1.10 MB 日本語 | Application Note | |
| PDF 1.12 MB | Application Note | |
| PDF 1.68 MB 日本語 | Application Note | |
| PDF 1.49 MB 日本語 | Application Note | |
| PDF 860 KB 日本語 | Application Note | |
| PDF 2.54 MB 日本語 | Application Note | |
| PDF 6.40 MB 日本語 | Application Note | |
| PDF 1.62 MB 日本語 | Application Note | |
| PDF 2.33 MB 日本語 | Application Note | |
| PDF 5.09 MB 日本語 | Application Note | |
| PDF 1.23 MB | Application Note | |
| PDF 381 KB 日本語 | Flyer | |
|
