Overview

The RAA788156 5V full-duplex powered RS-485/422 transceiver features high output drive and high EFT and ESD protection. The device is immune to ±5kV IEC 61000-4-4 EFT transients and can withstand up to ±16.5kV IEC 61000-4-2 ESD strikes without latch-up.

The RAA78815x family includes half and full-duplex transceivers with active-high driver-enable pins and active-low receiver-enable pins. These transceivers support data rates of 115kbps, 1Mbps and 20Mbps with a performance that is characterized from -40 °C to +85 °C.

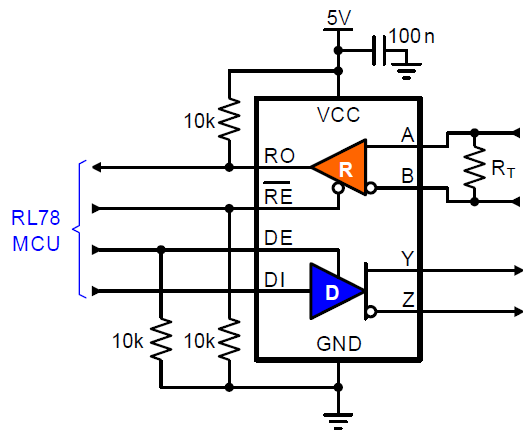

RAA788156 - Typical Operating Circuit for Full-Duplex Transceiver

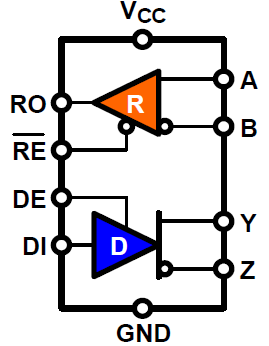

RAA788156 - Block Diagram

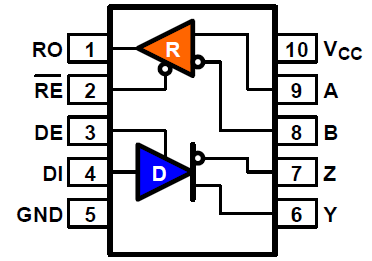

RAA788156 - Pin Assignment (10-MSOP)

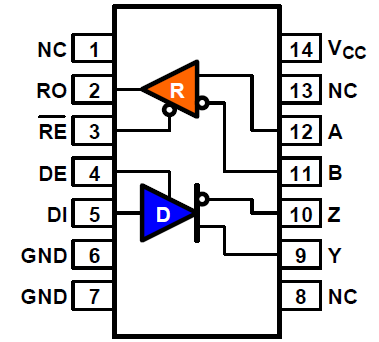

RAA788156 - Pin Assignment (14-SOIC)
RAA788156 - Typical Operating Circuit for Full-Duplex Transceiver
RAA788156 - Block Diagram
RAA788156 - Pin Assignment (10-MSOP)
RAA788156 - Pin Assignment (14-SOIC)
  • High VOD: 3.1V (Typ) into RD = 54Ω
  • ±5kV EFT immunity of bus I/O pins
  • ±10kV ESD protection on bus I/O pins
  • Supported data rates: 20Mbps
  • Full fail-safe outputs for open or shorted inputs
  • Hot plug capability
  • 1/8 unit load
  • Allows for up to 512 transceivers on the bus
  • Low supply current (driver disabled): 550μA
  • Ultra-low shutdown current: 70nA
48V Position Control Solution

Applications

  • Industrial networks in factory automation
  • Building automation: lighting, elevators, HVAC
  • Industrial process control networks
  • Security camera networks
  • Networks with star topology
  • Long-haul networks in coal mines and oil rigs
  • High node-count networks
  • Automated utility e-meter reading systems
