Overview

Description

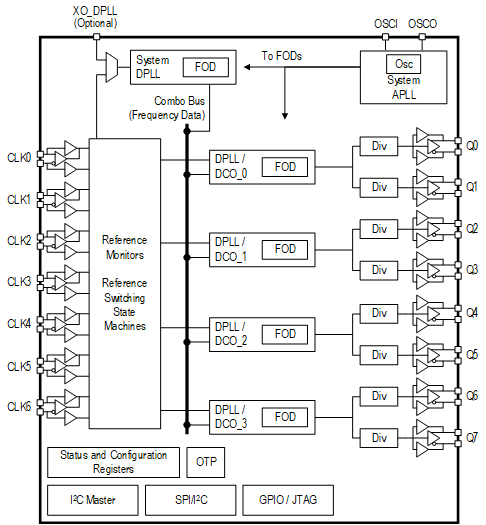

The 8A34042 Multichannel Digital PLL / Digitally Controlled Oscillator (DPLL/DCO) provides tools to manage timing references, clock conversion and timing paths for common communications protocols such as: Synchronous Ethernet (SyncE), Optical Transport Network (OTN) and Common Public Radio Interface (CPRI).  The device can be used to synchronize communication ports on line cards or daughter cards that are connected with synchronization sources across backplanes or other media. Digitally Controlled Oscillators (DCOs) are available to be controlled by OTN clock recovery servo software running on an external processor. Digital PLLs (DPLLs) support filtering of gapped clocks for OTN; and hitless reference switching between references from redundant timing sources. The device supports multiple independent timing channels for: clock generation; jitter attenuation and universal frequency translation.  Input-to-input, input-to-output and output-to-output phase skew can all be precisely managed.  The device outputs ultra-low-jitter clocks that can directly synchronize SERDES running at up to 28Gbps; as well as CPRI/OBSAI, SONET/SDH and PDH interfaces.

To see other devices in this product family, visit the ClockMatrix Timing Solutions page.

Features

  • Four independent timing channels
  • Jitter output below 150fs RMS (typical)
  • Digital PLLs (DPLLs) lock to any frequency from 1kHz to 1GHz
  • DPLLs / Digitally Controlled Oscillators (DCOs) generate any frequency from 0.5Hz to 1GHz
  • DCO outputs can be aligned in phase and frequency with the outputs of any DPLL or DCO
  • Supports up to 8 differential or 16 single-ended reference clock inputs
  • Supports up to 8 differential outputs or 16 LVCMOS outputs
  • Reference monitors qualify/disqualify references depending on LOS, activity, frequency monitoring and/or LOS input pins
  • Automatic reference selection state machines select the active reference for each DPLL based on the reference monitors, priority tables, revertive / non-revertive and other programmable settings
  • Device requires a crystal oscillator or fundamental-mode crystal: 25MHz to 54MHz
  • Optional XO_DPLL input allows a wider range for XO, TCXO or OCXO frequencies from 1MHz to 150MHz for applications that require a local oscillator with high stability
  • Serial processor ports support 1MHz I2C or 50MHz SPI
  • The device can configure itself automatically after reset via:
    • Internal Customer-programmable One-Time Programmable memory
    • Standard external I2C EPROM via separate I2C Master Port

Applications

Documentation

Title Type Date
PDF1.81 MB
Datasheet
PDF1.92 MB
Application Note
PDF231 KB
Application Note
PDF1.62 MB
Application Note
PDF148 KB
Application Note
PDF390 KB
Application Note
PDF880 KB
Application Note
PDF584 KB
Application Note
PDF162 KB
Application Note
PDF739 KB
Application Note
PDF976 KB
Application Note
PDF659 KB
Application Note
PDF324 KB
Application Note
PDF38 KB
Device Errata
PDF10.53 MB
Guide
PDF2.35 MB
Guide
PDF213 KB
Guide
PDF143 KB
Guide
PDF2.35 MB
Guide
XLSX321 KB
Other
PDF320 KB
Overview
PDF1.83 MB
Overview
PDF113 KB
Product Change Notice
PDF301 KB
Product Change Notice
PDF123 KB
Product Change Notice
PDF435 KB
Product Change Notice
PDF103 KB
Release Note
PDF206 KB
Schematic

Design & Development

Software & Tools

Software Downloads

Title Type Date
ZIP48.71 MB
Software & Tools - Other
ZIP18.02 MB
Software & Tools - Other
ZIP278 KB
Software & Tools - Other
ZIP73 KB
Software & Tools - Other
ZIP177 KB
Software & Tools - Other
ZIP177 KB
Software & Tools - Other

Models

Models

Title Type Date
ZIP2 KB
Model - BSDL
BSDL12 KB
Model - BSDL
ZIP2.55 MB
Model - IBIS

Support

Videos & Training

IDT ClockMatrix™ 8A3404x Multi-channel DPLL / DCO Programmable, Sub-150fs Jitter Timing Solution

The ClockMatrix family of devices are high-performance, precision timing solutions designed to simplify clock designs for applications with up to 100 Gbps interface speeds. They can be used anywhere in a system to perform critical timing functions, such as clock generation, frequency translation, jitter attenuation and phase alignment. A range of devices in the family support BBU, OTN, SyncE, synthesizer and jitter attenuator applications with several density options for each.

The 8A3404x Multichannel Digital PLL / Digitally Controlled Oscillator (DPLL/DCO) family provides tools to manage timing references, clock conversion and timing paths for common communications protocols such as: Synchronous Ethernet (SyncE), Optical Transport Network (OTN) and Common Public Radio Interface (CPRI).  The device can be used to synchronize communication ports on line cards or daughter cards that are connected with synchronization sources across backplanes or other media. Digitally Controlled Oscillators (DCOs) are available to be controlled by OTN clock recovery servo software running on an external processor. Digital PLLs (DPLLs) support filtering of gapped clocks for OTN; and hitless reference switching between references from redundant timing sources.

The device supports multiple independent timing channels for: clock generation; jitter attenuation and universal frequency translation.  Input-to-input, input-to-output and output-to-output phase skew can all be precisely managed.  The device outputs ultra-low-jitter clocks that can directly synchronize SERDES running at up to 28Gbps; as well as CPRI/OBSAI, SONET/SDH and PDH interfaces

For more information, visit www.idt.com/clockmatrix.
