I2C Real Time Clock/Calendar, Low Power RTC with Battery-Backed SRAM
Jump to Page Section:
Overview
Description

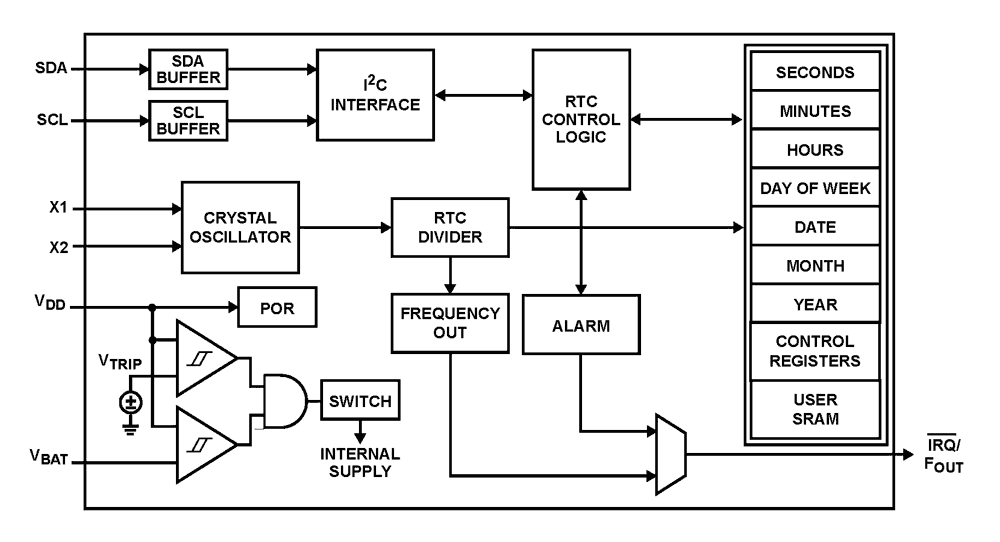

The ISL1208 device is a low power real time clock with timing and crystal compensation, clock/calendar, power fail indicator, periodic or polled alarm, intelligent battery backup switching and battery-backed user SRAM. The oscillator uses an external, low-cost 32. 768kHz crystal. The real time clock tracks time with separate registers for hours, minutes, and seconds. The device has calendar registers for date, month, year and day of the week. The calendar is accurate through 2099, with automatic leap year correction.
Features
- Real Time Clock/Calendar
- Tracks Time in Hours, Minutes, and Seconds
- Day of the Week, Day, Month, and Year
- 15 Selectable Frequency Outputs
- Single Alarm
- Settable to the Second, Minute, Hour, Day of the Week, Day, or Month
- Single Event or Pulse Interrupt Mode
- Automatic Backup to Battery or Super Capacitor
- Power Failure Detection
- On-Chip Oscillator Compensation
- 2 Bytes Battery-Backed User SRAM
- I2C Interface
- 400kHz Data Transfer Rate
- 400nA Battery Supply Current
- Same Pin Out as ST M41Txx and Maxim DS13xx Devices
- Small Package Options
- 8 Ld MSOP and SOIC Packages
- 8 Ld TDFN Package
- Pb-Free Available (RoHS Compliant)
Applications
Applications
- Utility Meters
- HVAC Equipment
- Audio/Video Components
- Set-Top Box/Television
- Modems
- Network Routers, Hubs, Switches, Bridges
- Cellular Infrastructure Equipment
- Fixed Broadband Wireless Equipment
- Pagers/PDA
- POS Equipment
- Test Meters/Fixtures
- Office Automation (Copiers, Fax)
- Home Appliances
- Computer Products
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 1.06 MB | Datasheet | ||
| PDF 302 KB | Application Note | ||
| PDF 329 KB | Application Note | ||
| PDF 4.91 MB 日本語 | Brochure | ||
| PDF 603 KB | End Of Life Notice | ||
| PDF 815 KB | Manual - Development Tools | ||
| PDF 443 KB | Manual - Development Tools | ||
| PDF 913 KB | Manual - Development Tools | ||
| PDF 243 KB | Other | ||
| PDF 266 KB | Other | ||
| PDF 302 KB | Other | ||
| PDF 264 KB | Other | ||
| PDF 232 KB | Other | ||
| PDF 1.83 MB | Overview | ||
| PDF 208 KB | Price Increase Notice | ||
| PDF 363 KB | Product Advisory | ||
| PDF 126 KB | Product Change Notice | ||
| PDF 152 KB | Product Change Notice | ||
| PDF 135 KB | Product Change Notice | ||
19 items
|
|||
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
ISL120x Real Time Clock USB Evaluation System
This evaluation system is a hardware and software platform for testing Renesas real-time clock (RTC) devices; the system requires only a PC for the controller and power...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Pkg. Type |
Carrier Type |
MOQ |
Buy / Sample |
|
|---|---|---|---|---|
| Part Number | ||||
| SOICN | Tube | 1200 | Get Samples, | |
ISL1208IB8Z-T7A Active Samples Available |
SOICN | Reel | 250 | Get Samples, |
| SOICN | Reel | 3000 | ||
| MSOP | Tube | 960 | Get Samples, | |
ISL1208IU8Z-T7A Active Samples Available |
MSOP | Reel | 250 | Get Samples, |
| MSOP | Reel | 1000 |
