Overview

The DG408 Single 8-Channel, and DG409 Differential 4-Channel monolithic CMOS analog multiplexers are drop-in replacements for the popular DG508A and DG509A series devices. They each include an array of eight analog switches, a TTL/CMOS compatible digital decode circuit for channel selection, a voltage reference for logic thresholds and an ENABLE input for device selection when several multiplexers are present. The DG408 and DG409 feature lower signal ON resistance (TRANS

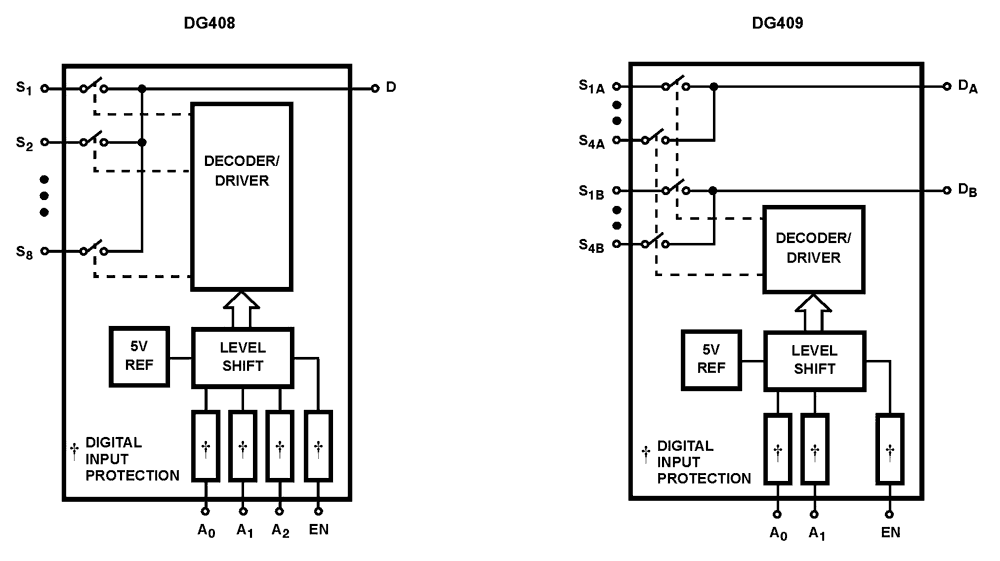

DG408_DG409 Functional Diagram
DG408_DG409 Functional Diagram
  • ON Resistance (Max, 25°C) 100Ω
  • Low Power Consumption (PD) <11mW
  • Fast Switching Action
  • tTRANS <250ns
  • tON/OFF(EN) <150ns
  • Low Charge Injection
  • Upgrade from DG508A/DG509A
  • TTL, CMOS Compatible
  • Single or Split Supply Operation
  • Pb-Free Plus Anneal Available (RoHS Compliant)

Applications

  • Data Acquisition Systems
  • Audio Switching Systems
  • Automatic Testers
  • Hi-Rel Systems
  • Sample and Hold Circuits
  • Communication Systems
  • Analog Selector Switch

Documentation

Title Type Date
DG408, DG409 Datasheet
PDF652 KB
Datasheet
AN557: Recommended Test Procedures for Analog Switches
PDF468 KB
Application Note
AN9867: End of Life Derating: A Necessity or Overkill
PDF338 KB
Application Note
AN1032: Analog Multiplexers and Overvoltage Protection
PDF195 KB
Application Note
AN1033: Multiplexered Data Acquisition System Considerations
PDF302 KB
Application Note
AN1034: CMOS Analog Multiplexers and Switches, Applications Considerations
PDF300 KB
Application Note
AN520: CMOS Analog Multiplexers and Switches; Specifications and Application Considerations
PDF270 KB
Application Note
Analog ICs Brochure
PDF4.91 MB日本語
Brochure
Intersil Space Products Brochure
PDF4.89 MB
Brochure
Intersil Commercial Lab Services
PDF364 KB
Brochure
PA14064 - Minimum Line Quantity Change
PDF282 KB
Product Advisory
PCN16001 - Wafer Size Conversion for the Listed Intersil Products
PDF214 KB
Product Change Notice
PCN15064 - Qualification of Alternate Assembly Site for CERDIP (MMT)
PDF323 KB
Product Change Notice
PCN14023 - DLA Notification - HVSIGATE 4
PDF114 KB
Product Change Notice
PCN14017 - Test Site Change for the Listed Intersil Products - Carsem (CAS) Ipoh, Malaysia
PDF174 KB
Product Change Notice
PCN12085 - 8l, 14l, 16l SOIC w/ Gold Bond Wire @ ATP as Alternate Assembly Site
PDF152 KB
Product Change Notice
PCN12086 - Alternate Manufacturing Site for Assembly of the Listed Intersil PDIP Packaged Products -Amkor Technology, Philippines (ATP)
PDF86 KB
Product Change Notice
PCN11113A - Manufacturing Site Change for Assembly of the Listed Intersil TSSOP Packaged Products - Carsem-M (CAM) - Ipoh, Malaysia
PDF121 KB
Product Change Notice
PCN12045 - Alternate Manufacturing Site for Assembly of Intersil Ceramic Dual-In-Line (Frit Seal Cerdip) Products - Intersil (ISP) Palm Bay, FL
PDF77 KB
Product Change Notice
PCN12004 - Wafer Fabrication Process Improvement for the Listed Intersil HVSIGATE Technology Products - Intersil Palm Bay, Florida Facility
PDF136 KB
Product Change Notice
PCN12005 - Wafer Fabrication Process Improvement for the Listed Intersil HVSIGATE Technology Products - Intersil Palm Bay, Florida Facility
PDF127 KB
Product Change Notice
PCN11113 - Manufacturing Site Change for Assembly of the Listed Intersil TSSOP Packaged Products - Carsem-M (CAM) - Ipoh, Malaysia
PDF120 KB
Product Change Notice
PCN11040 - Manufacturing Site Change for Assembly of Intersil Ceramic Dual-In-Line (Frit Seal Cerdip) Products - Amkor (ATP) Muntinlupa City, Philippines
PDF151 KB
Product Change Notice

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models

Product Options

    Processing table
    Part Number
    Pkg. Type
    Carrier Type
    MOQ
    Buy / Sample
    5962-9204201MEA
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 CERDIP Tube 500 Get Samples,
    DG408DJZ
    play_circleActive
    memory
    spa
    view_in_ar
    Samples Available
    		 PDIP Tube 4000 Get Samples,
    DG408DVZ
    play_circleActive
    memory
    spa
    view_in_ar
    Samples Available
    		 TSSOP Tube 1920 Get Samples,
    DG408DVZ-T
    play_circleActive
    memory
    spa
    view_in_ar
    		TSSOP Reel 2500
    DG408DYZ
    play_circleActive
    memory
    spa
    view_in_ar
    Samples Available
    		 SOICN Tube 1920 Get Samples,
    DG408DYZ-T
    play_circleActive
    memory
    spa
    view_in_ar
    		SOICN Reel 2500
