4.5MHz, Single Precision Rail-to-Rail Input-Output (RRIO) Op Amps with Very Low Input Bias Current
Jump to Page Section:
Overview
Description
The ISL28148, ISL28248 are 4. 5MHz low-power single and dual operational amplifiers. The parts are optimized for single supply operation from 2. 4V to 5. 5V, allowing operation from one lithium cell or two Ni-Cd batteries. The single and dual feature an Input Range Enhancement Circuit (IREC), which enables them to maintain CMRR performance for input voltages greater than the positive supply. The input signal is capable of swinging 0. 25V above the positive supply and to 100mV below the negative supply with only a slight degradation of the CMRR performance. The output operation is rail-to-rail. The parts draw minimal supply current (900μA per amplifier) while meeting excellent DC accuracy, AC performance, noise and output drive specifications. The ISL28148 features an enable pin that can be used to turn the device off and reduce the supply current to a maximum of 16μA. Operation is guaranteed across the -40°C to +125°C temperature range.

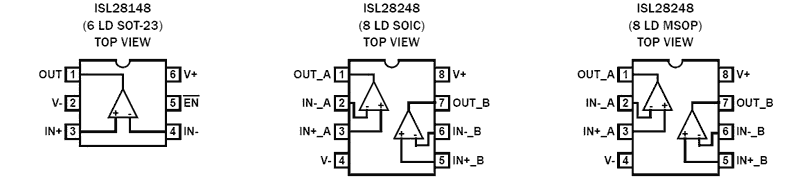

Features
- 4.5MHz gain bandwidth product
- 900µA supply current (per amplifier)
- 1.8mV maximum offset voltage (ISL28248)
- 1pA typical input bias current
- Down to 2.4V single supply operation
- Rail-to-rail input and output
- Enable pin (ISL28148 SOT-23 package only)
- -40°C to +125°C operation
- Pb-free (RoHS compliant)
Applications
Applications
- Low-end audio
- 4mA to 20mA current loops
- Medical devices
- Sensor amplifiers
- ADC buffers
- DAC output amplifiers
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF1.21 MB
|
Datasheet
|
||
PDF974 KB
|
Application Note
|
||
PDF381 KB
|
Application Note
|
||
PDF263 KB
|
Application Note
|
||
PDF564 KB
|
Application Note
|
||
PDF976 KB
|
Application Note
|
||
PDF2.04 MB
|
Application Note
|
||
PDF556 KB
|
Application Note
|
||
PDF1.02 MB
|
Application Note
|
||
PDF357 KB
|
Application Note
|
||
PDF843 KB
|
Application Note
|
||
Brochure
|
|||
PDF1.11 MB
|
Flyer
|
||
PDF407 KB
|
Manual - Development Tools
|
||
PDF519 KB
|
Other
|
||
PDF208 KB
|
Price Increase Notice
|
||
PDF313 KB
|
Product Change Notice
|
||
PDF557 KB
|
Product Change Notice
|
||
PDF135 KB
|
Product Change Notice
|
||
PDF405 KB
|
Technical Brief
|
||
PDF325 KB
|
Training
|
||
PDF258 KB
|
Training
|
Design & Development
Boards & Kits
Boards & Kits
Single Precision Rail-to-Rail Input-Output (RRIO) Low Input Bias Current Op Amps Evaluation Board
The ISL28148EVAL1Z evaluation board is a design platform containing all the circuitry needed to characterize critical performance parameters of the ISL28148 operational...
Featured Documents:
Single Precision Rail-to-Rail Input-Output (RRIO) Low Input Bias Current Op Amps Evaluation Board
The ISL28158EVAL1Z evaluation board is a design platform containing all the circuitry needed to characterize critical performance parameters of the ISL28158 operational...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
ISL28148FHZ-T7 Last Time Buy Samples Available |
SOT23 | Reel | 9000 | Get Samples, |
ISL28148FHZ-T7A Last Time Buy Samples Available |
SOT23 | Reel | 250 | Get Samples, |
