50A Digital DC/DC PMBus Power Module
NOTICE - The following device(s) are recommended alternatives:
NRND - No Recommended Replacements Available - NRND
The ISL8272M is not recommended for new designs and has no alternative product available.
The ISL8272M is not recommended for new designs and has no alternative product available.
Jump to Page Section:
Overview
Description

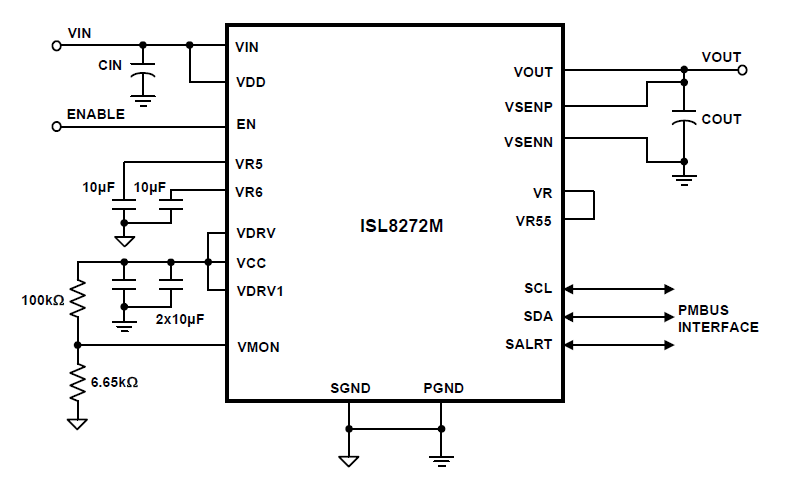

The ISL8272M is a 50A step-down PMBus compliant digital power module. Integrated in the module is a high performance digital PWM controller, dual-phase power MOSFETs, inductors, and the passives. This high efficiency power module is capable of delivering 50A without the need for airflow and heatsinks. The ISL8272M can be placed in a current sharing configuration with up to four modules in parallel to deliver 200A continuous current. The ISL8272M operates with the ChargeMode™ control architecture, which responds to a transient load within a single switching cycle. The ISL8272M comes with operating in a pin strap mode; output voltage, switching frequency device, SMBus address, input UVLO, soft-start/stop and current sharing can be programmed through external resistors. More configuration such as fault limits, fault response, margining, and sequencing can be easily programmed using the PMBus interface. PMBus can be used to monitor voltages, currents, temperatures, and fault status. The ISL8272M is supported by the PowerNavigator™ software, a graphical user interface (GUI) that can be used to configure modules to a desired solution. The ISL8272M is built in a compact (18mmx23mmx7. 5mm) and low profile overmolded HDA package, suitable for automated assembly by standard surface mount equipment.
Features
- Complete digital switch mode power supply
- Wide input voltage range: 4.5V to 14V
- Programmable output voltage range: 0.6V to 5V
- PMBus compliant communication interface
- Programmable VOUT, margining, UV/OV, UC/OC, UT/OT, soft-start/stop, sequencing and external synchronization
- Monitor of VIN, VOUT, IOUT, temperature, duty cycle, switching frequency, power-good, and faults
- Fast response ChargeMode control architecture
- Multiphase current sharing with up to four modules
- ±1.0% VOUT accuracy over line, load, and temperature
- Internal nonvolatile memory and fault logging
- Thermally enhanced HDA package
Applications
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 2.88 MB | Datasheet | ||
| PDF 509 KB | Application Note | ||
| PDF 397 KB | Application Note | ||
| PDF 215 KB | End Of Life Notice | ||
| PDF 4.68 MB | Guide | ||
| PDF 714 KB | Guide | ||
| PDF 693 KB | Manual - Hardware | ||
| PDF 1.22 MB | Other | ||
| PDF 194 KB | Other | ||
| PDF 116 KB | Product Advisory | ||
| PDF 151 KB | Product Advisory | ||
| PDF 125 KB | Product Change Notice | ||
| PDF 83 KB | Product Change Notice | ||
| PDF 295 KB | White Paper | ||
14 items
|
|||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| PowerNavigator Software Renesas' PowerNavigator™ software allows simple configuration and monitoring of multiple Digital-DC devices using a PC with a USB interface.
|
Monitor Debugger/RAM Monitor | Renesas |
1 item
|
||
Software Downloads
| Software title | Software type
|
Date Date |
|---|---|---|
| PDF 215 KB | End Of Life Notice | |
| ZIP 54.93 MB | Library | |
| ZIP 119.19 MB | Library | |
| ZIP 59.25 MB | Library | |
| ZIP 435 KB | Library | |
| ZIP 1.75 MB | Library | |
| ZIP 166 KB | Library | |
| ZIP 120.25 MB | Software & Tools - Other | |
| ZIP 96.49 MB | Software & Tools - Software | |
9 items
|
Boards & Kits
Boards & Kits
50A and 150A Step-Down DC/DC Power Supply Module Evaluation Board
The ISL8272MEVAL1Z evaluation board is a 4.7in x 4.8in 6-layer FR4 board with 2oz. copper in all layers. This evaluation board is designed to evaluate the ISL8272M...
Featured Documents:
50A and 150A Step-Down DC/DC Power Supply Module Evaluation Board
The ISL8272MEVAL2Z evaluation board has three ISL8272M modules connected in a current sharing configuration to deliver 150A of continuous output current. This...
Featured Documents:
