+5V Powered RS-232 Transmitters/Receivers with 0.1µF External Capacitors
Jump to Page Section:
Back to top
Explore ECAD Models
Overview

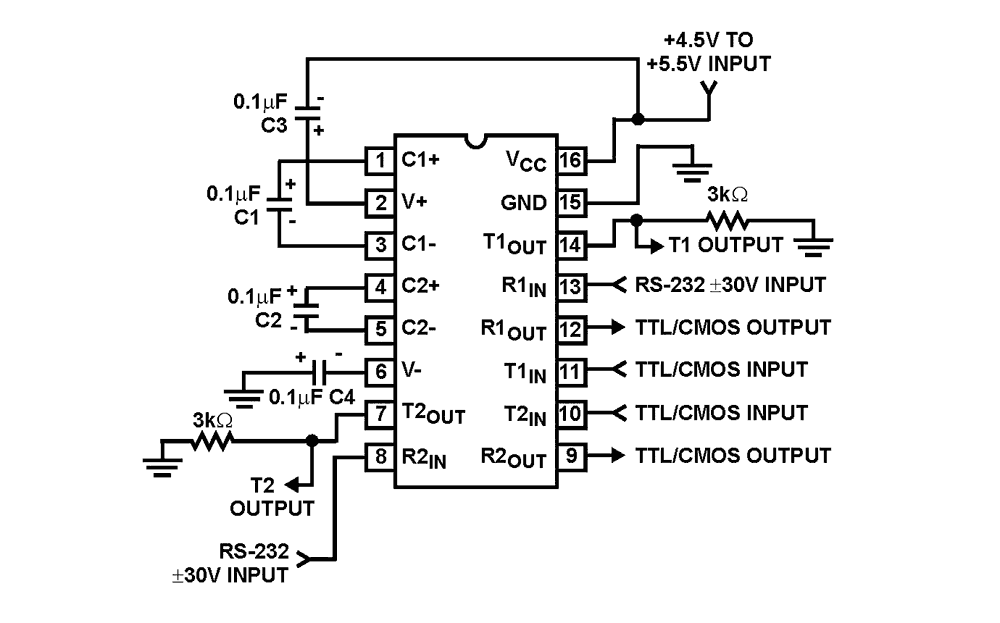

Description
The HIN202, HIN206, HIN207, HIN208, HIN211, HIN213 family of RS-232 transmitters/receivers interface circuits meet all ElA RS-232E and V. 28 specifications, and are particularly suited for those applications where ±12V is not available. They require a single +5V power supply and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The family of devices offers a wide variety of RS-232 transmitter/receiver combinations to accommodate various applications (see Selection Table). The HIN206, HIN211 and HIN213 feature a low power shutdown mode to conserve energy in battery powered applications. In addition, the HIN213 provides two active receivers in shutdown mode allowing for easy wakeup capability. The drivers feature true TTL/CMOS input compatibility, slew rate-limited output, and 300Ω power-off source impedance. The receivers can handle up to ±30V input, and have a 3kΩ to 7kΩ input impedance. The receivers also feature hysteresis to greatly improve noise rejection.
Features
- Pb-Free Available as an Option (See Ordering Info)
- Meets All RS-232E and V.28 Specifications
- Requires Only 0.1µF or Greater External Capacitors
- High Data Rate 120kbit/s
- Two Receivers Active in Shutdown Mode (HIN213)
- Requires Only Single +5V Power Supply
- Onboard Voltage Doubler/Inverter
- Low Power Consumption (Typ) 5mA
- Low Power Shutdown Function (Typ) 1µA
- Three-State TTL/CMOS Receiver Outputs
- Multiple Drivers
- ±10V Output Swing for +5V lnput
- 300Ω Power-Off Source Impedance
- Output Current Limiting
- TTL/CMOS Compatible
- 30V/µs Maximum Slew Rate
- Multiple Receivers
- ±30V Input Voltage Range
- 3kΩ to 7kΩ Input Impedance
- 0.5V Hysteresis to Improve Noise Rejection
Applications
Applications
- Any System Requiring RS-232 Communications Port Computer - Portable, Mainframe, Laptop Peripheral - Printers and Terminals Instrumentation Modems
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF1.02 MB
|
Datasheet
|
||
PDF1023 KB
|
Application Note
|
||
PDF207 KB
|
Application Note
|
||
PDF474 KB
|
Application Note
|
||
PDF178 KB
|
Application Note
|
||
PDF395 KB
|
Application Note
|
||
PDF513 KB
|
Application Note
|
||
PDF443 KB
|
Application Note
|
||
PDF582 KB
|
Application Note
|
||
PDF440 KB
|
Application Note
|
||
PDF338 KB
|
Application Note
|
||
PDF365 KB
|
Application Note
|
||
PDF375 KB
|
Application Note
|
||
Brochure
|
|||
PDF2.95 MB
|
Brochure
|
||
PDF388 KB
|
End Of Life Notice
|
||
PDF363 KB
|
Product Advisory
|
||
PDF98 KB
|
Product Change Notice
|
||
PDF152 KB
|
Product Change Notice
|
||
PDF86 KB
|
Product Change Notice
|
||
PDF188 KB
|
Technical Brief
|
||
White Paper
|
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Part Number |
Pkg. Type |
Carrier Type |
MOQ |
Buy / Sample |
|---|---|---|---|---|
| Tube | 3840 | Get Samples, | ||
HIN202CBNZ-T Active Samples Available |
Reel | 5000 | Get Samples, | |
| Tube | 3840 | Get Samples, | ||
| Reel | 4000 | |||
| Tube | 3840 | Get Samples, | ||
| Reel | 5000 | |||
| Tube | 1920 | Get Samples, |
