Digital Dual Output, 7-Phase Configurable, PWM Controller with PMBus
Jump to Page Section:
Overview
Description
The ISL68127 is a digital dual output, flexible multiphase (X+Y ≤ 7) PWM controller supporting the latest PMBus V1. 3 specifications. The ISL68127can be configured to support any desired phase assignments up to a maximum of seven phases across the two outputs (X+Y). For example, 6+1, 5+2, 4+2, 3+3, 3+2, or even a single output operation as a 7+0 configuration are supported. The ISL68127 uses the Renesas proprietary linear synthetic digital current modulation scheme to achieve the industry's best combination of transient response and ease of tuning while addressing the challenges of modern multiphase designs. You can configure the device and monitor telemetry using the intuitive Renesas PowerNavigator GUI. The ISL68127 device supports on-chip nonvolatile memory to store various configuration settings that are user-selectable through pin-strap, giving system designers increased power density to configure and deploy multiple configurations. The automatic phase add/drop feature allows maximum efficiency across all load ranges. Thresholds for automatic phase add/drop are user-programmable using PowerNavigator. The ISL68127 supports a comprehensive fault management system to enable the design of highly reliable systems. From a multitiered overcurrent protection scheme to the configurable power-good and output overvoltage/undervoltage fault thresholds and temperature monitoring, almost any need is accommodated. With minimal external components, easy configuration, robust fault management, and highly accurate regulation capability, implementing a high-performance, multiphase regulator has never been easier.

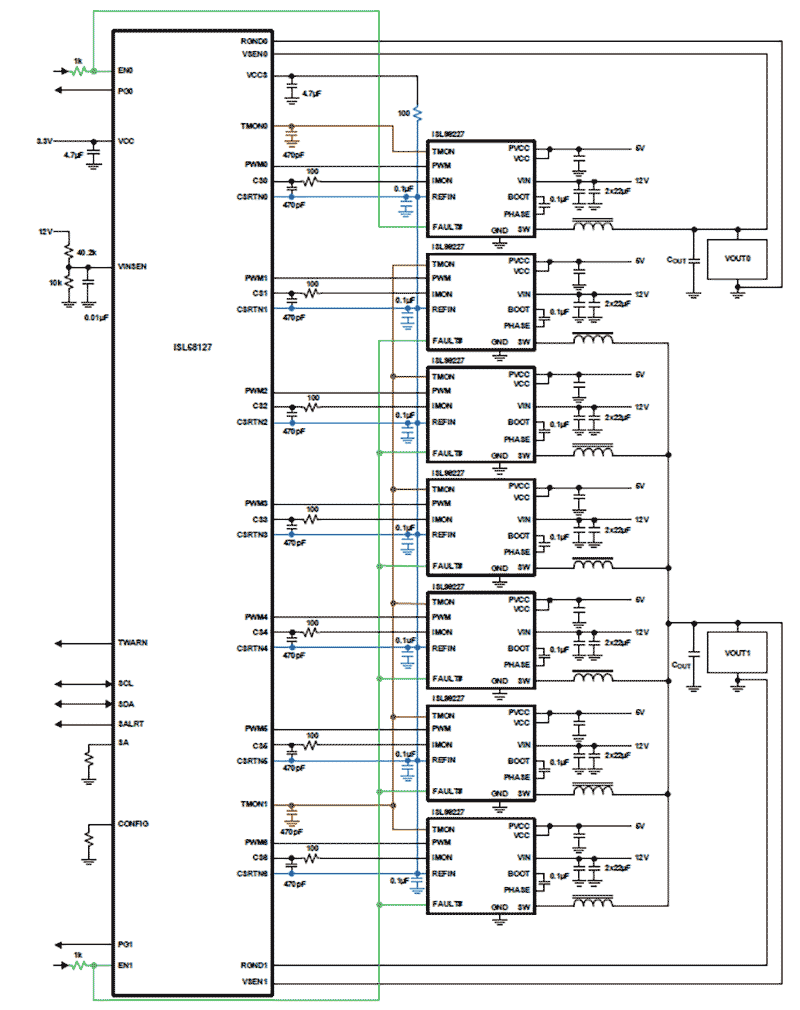

Features
- Zero latency synthetic current control for excellent HF current balance
- Dual edge modulation for fastest transient response
- Auto phase add/drop for excellent load vs efficiency profile
- PMBus V1.3 support - Telemetry: VIN, VOUT, IOUT, power IN/OUT, temperature, and various fault status registers; Up to 1MHz bus interface
- Flexible phase configuration: 7+0, 6+1, 5+2, and 4+3 phase operation; Operation using fewer than seven phases between two outputs is also supported
- Diode braking for overshoot reduction
- Differential remote voltage sensing supports ±0.5% closed loop system accuracy over load, line, and temperature
- Highly accurate current sensing for excellent load line regulation and accurate OCP
- Comprehensive fault management enables high reliability systems
- Intuitive configuration using PowerNavigator; NVM to store up to eight configurations
- Pb-free (RoHS compliant)
Applications
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF1.79 MB
|
Datasheet
|
||
PDF509 KB
|
Application Note
|
||
PDF397 KB
|
Application Note
|
||
PDF714 KB
|
Guide
|
||
PDF257 KB
|
Manual - Development Tools
|
||
PDF5.52 MB
|
Manual - Development Tools
|
||
PDF693 KB
|
Manual - Hardware
|
||
PDF169 KB
|
Product Change Notice
|
||
PDF166 KB
|
Product Change Notice
|
||
PDF166 KB
|
Product Change Notice
|
||
PDF490 KB
|
Product Change Notice
|
||
PDF298 KB
|
White Paper
|
||
PDF705 KB
|
White Paper
|
Design & Development
Software & Tools
Software & Tools
| PowerNavigator SoftwareRenesas' PowerNavigator™ software allows simple configuration and monitoring of multiple Digital-DC devices using a PC with a USB interface.Downloads: | Monitor Debugger/RAM Monitor | Renesas |
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
ISL68127IRAZ-T Active Samples Available |
QFN | Reel | 4000 | Get Samples, |
| QFN | Reel | 250 |
