Overview

The RTKA271082DE0000BU evaluates the performance of the RAA271082 Automotive PMIC with three synchronous buck regulators and one low dropout linear regulator. The evaluation board is intended for use in point-of-load automotive applications, including camera systems, with 4.5V to 42V input supply range.

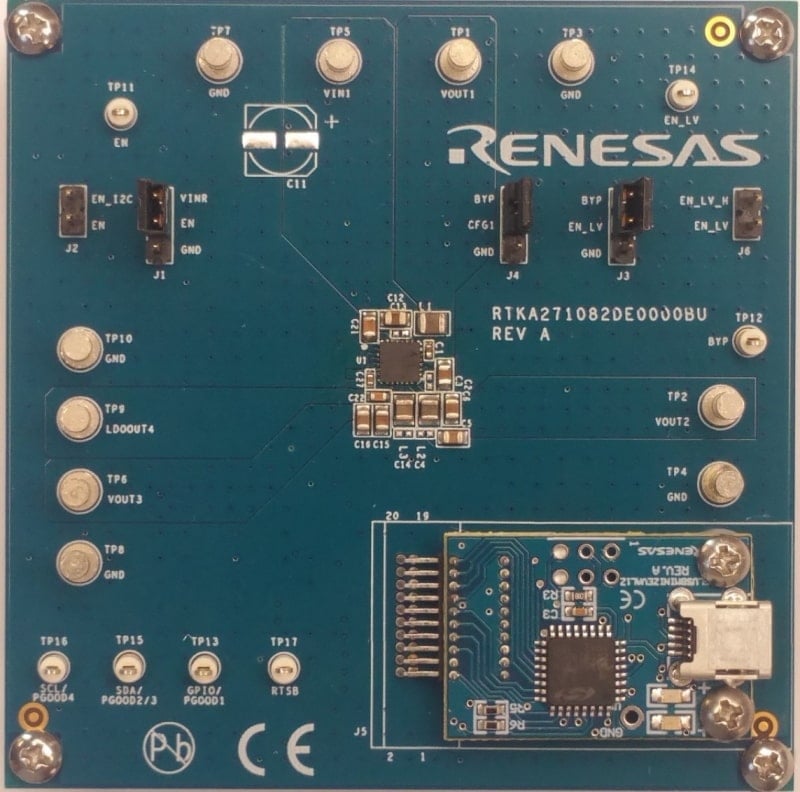

RTKA271082DE0000BU Evaluation Board - Top

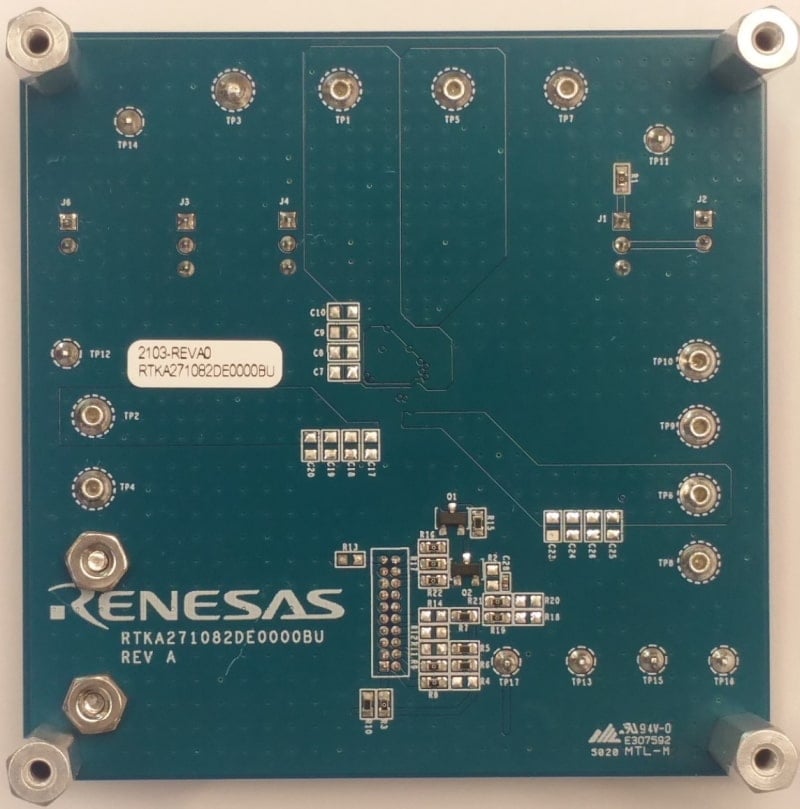

RTKA271082DE0000BU Evaluation Board - Bottom
RTKA271082DE0000BU Evaluation Board - Top
RTKA271082DE0000BU Evaluation Board - Bottom
  • VIN operating range from 4.0 to 42V
  • Start range 4.5 to 42V
  • Three synchronous bucks with internal compensation and one LDO
  • Fixed Frequency 2.2MHz
  • Over-temperature, overcurrent, overvoltage

Applications

  • Driver monitoring cameras
  • Rear and surround view HD automotive cameras
  • Microcontroller PMIC for battery management systems
  • Microcontroller PMIC for zone and domain controllers
  • Microcontroller PMIC for gateway units
