SmartBond™ DA14695 Module Bluetooth Low Energy 5.2 Development Kit Pro
DA14695MOD-00DEVKT-PはDA14695MOD評価キットとしてアプリケーションソフトの開発と電力測定に必要なマザーボードとドーターボード、ケーブル類を同梱しています。
DA14695は世界最高水準のRF性能を提供し、超低消費電力でBLE通信が可能です。本製品は非常に小さなパッケージサイズでありながら...
SmartBond Bluetooth® LE 5.2, High-integration (including USB Charger) Module
ページセクションへ移動：
概要
説明

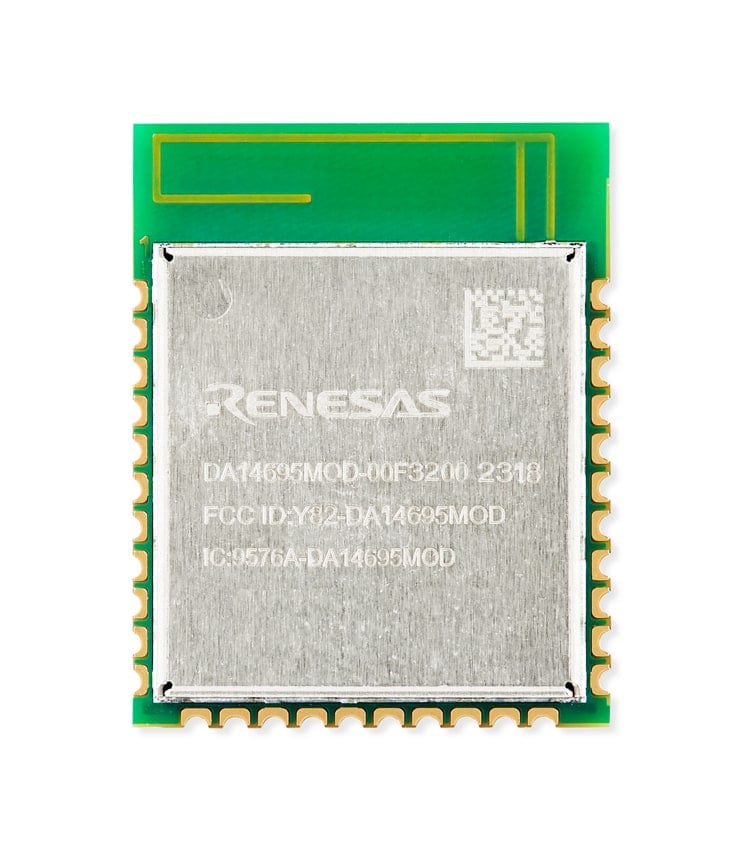

Based on the SmartBond DA14695 Bluetooth® Low Energy (LE) 5.2 system-on-chip (SoC), the DA14695 module brings out all the DA14695 hardware features and capabilities. The module integrates all passives, antenna, and a 32Mbit QSPI FLASH, and is supported by software that is easy to work with. The DA14695 module targets broad market use and will be certified across regions providing significant reductions in development cost and risks, and time-to-market.
特長
- Multi-core: CM33F at 96MHz as application core, CM0+ at 96MHz as configurable MAC, sensor node controller
- Integrated (USB) charger (JEITA support, SW Fuel-gauge)
- Integrated LCD display controller
- Receive sensitivity -96dBm, transmit +6dBm
- 8-ch. 14-bit Sigma-Delta ADC
- 512KB RAM
- 7 power domains for power consumption efficiency (dev kit auto selects for easy use)
- ‘Banking-level’ security
- Bluetooth LE 5.2 and proprietary 2.4GHz protocols
- Rich range of interface options
アプリケーション
