High Speed, Dual Channel Power MOSFET Drivers
ページセクションへ移動：
概要
説明

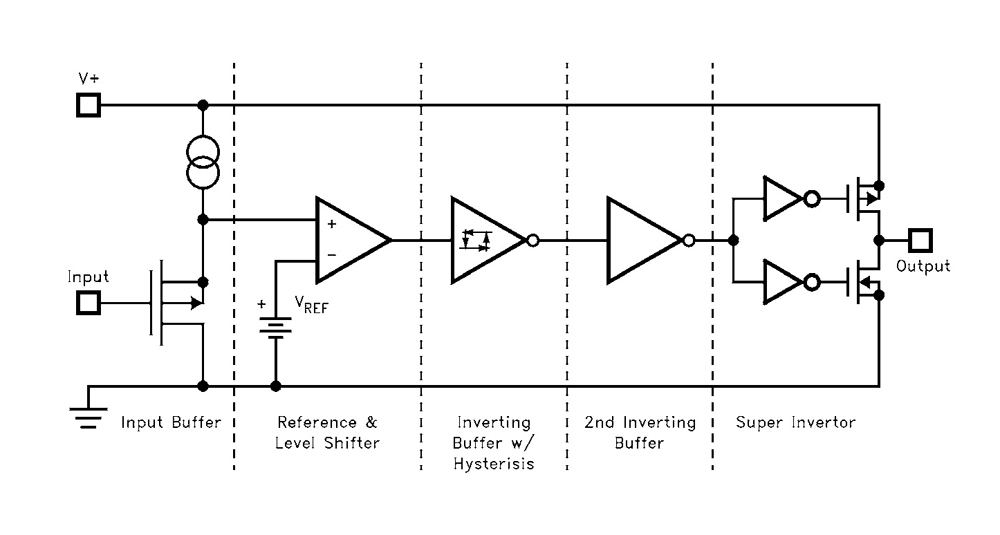

The EL7202, EL7212, EL7222 ICs are matched dual-drivers that improve the operation of the industry standard DS0026 clock drivers. The Elantec versions are very High-Speed drivers capable of delivering peak currents of 2. 0 amps into highly capacitive loads. The High-Speed performance is achieved by means of a proprietary Turbo-Driver circuit that speeds up input stages by tapping the wider voltage swing at the output. Improved speed and drive capability are enhanced by matched rise and fall delay times. These matched delays maintain the integrity of input-to-output pulse-widths to reduce timing errors and clock skew problems. This improved performance is accompanied by a 10 fold reduction in supply currents over bipolar drivers, yet without the delay time problems commonly associated with CMOS devices. Dynamic switching losses are minimized with non-overlapped drive techniques.
特長
- Industry standard driver replacement
- Improved response times
- Matched rise and fall times
- Reduced clock skew
- Low output impedance
- Low input capacitance
- High noise immunity
- Improved clocking rate
- Low supply current
- Wide operating voltage range
- Pb-Free available (RoHS compliant)
アプリケーション
アプリケーション
- Clock/line drivers
- CCD Drivers
- Ultra-sound transducer drivers
- Power MOSFET drivers
- Switch mode power supplies
- Class D switching amplifiers
- Ultrasonic and RF generators
- Pulsed circuits
ドキュメント
| Document title | Document type
|
日付 日付 | |
|---|---|---|---|
| PDF 571 KB | データシート | ||
| PDF 509 KB | アプリケーションノート | ||
| PDF 397 KB | アプリケーションノート | ||
| PDF 576 KB | アプリケーションノート | ||
| PDF 236 KB | アプリケーションノート | ||
| PDF 315 KB | その他資料 | ||
| PDF 208 KB | Price Increase Notice | ||
| PDF 363 KB | Product Advisory | ||
| PDF 152 KB | 製品変更通知 | ||
| PDF 86 KB | 製品変更通知 | ||
| PDF 135 KB | 製品変更通知 | ||
11 items
|
|||
