概要
説明

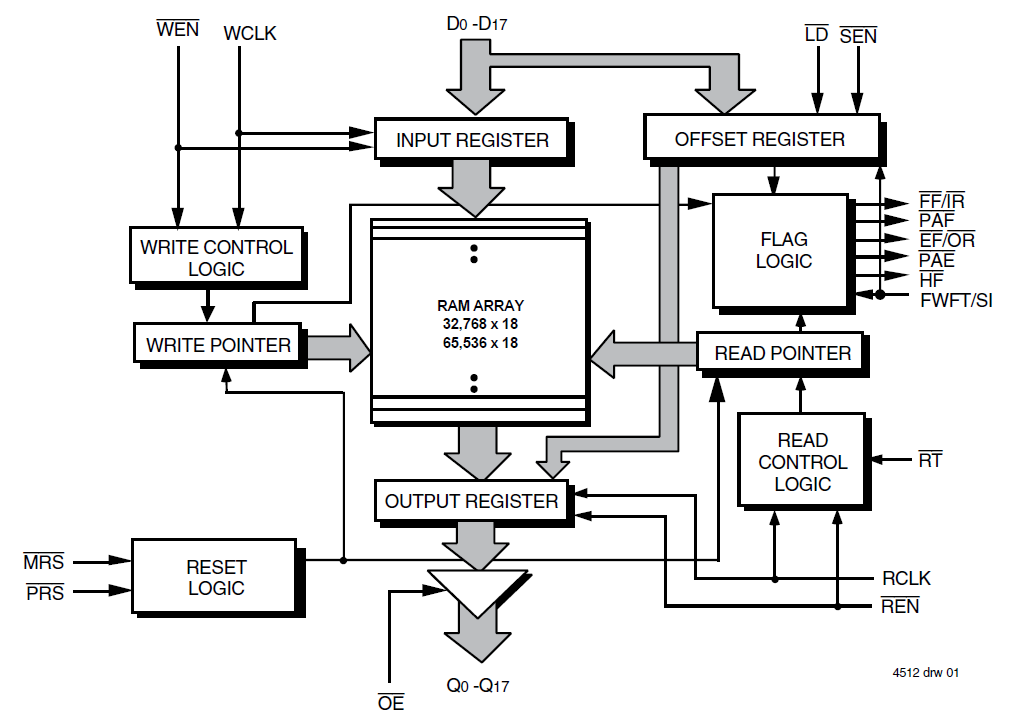

The 72V275 is a 32K x 18 SuperSync FIFO memory with clocked read and write controls. It's a functionally compatible version of the 72275 designed to run off a 3.3V supply for very low power consumption. The Frequency Select pin (FS) has been removed, thus it is no longer necessary to select which of the two clock inputs, RCLK or WCLK, is running at the higher frequency. SuperSync FIFOs are particularly appropriate for networking, video, telecommunications, data communications and other applications that need to buffer large amounts of data.
特長
- Pin-compatible with the 72V2x5 SuperSync FIFOs
- Functionally compatible with the 5 Volt 722x5 family
- 10ns read/write cycle time (6.5ns access time)
- Fixed, low first word data latency time
- Auto power down minimizes standby power consumption
- Retransmit operation with fixed, low first word data latency time
- Empty, Full and Half-Full flags signal FIFO status
- Programmable Almost-Empty and Almost-Full flags, Easily expandable in depth and width
- Independent Read and Write clocks (permit reading and writing simultaneously)
- Available in 64-pin TQFP and STQFP packages
- Industrial temperature range (–40C to +85C) is available
ドキュメント
| Document title | Document type
|
日付 日付 | |
|---|---|---|---|
| PDF 445 KB | データシート | ||
| PDF 938 KB | EOL通知 | ||
| PDF 909 KB | EOL通知 | ||
| PDF 645 KB | EOL通知 | ||
| PDF 123 KB | ガイド | ||
| PDF 567 KB | 製品変更通知 | ||
| PDF 611 KB | 製品変更通知 | ||
| PDF 611 KB | 製品変更通知 | ||
| PDF 95 KB | 製品変更通知 | ||
| PDF 50 KB | 製品変更通知 | ||
| PDF 24 KB | 製品変更通知 | ||
| PDF 252 KB | 製品変更通知 | ||
| PDF 164 KB | 製品変更通知 | ||
| PDF 290 KB | 製品変更通知 | ||
| PDF 80 KB | 製品変更通知 | ||
| PDF 26 KB | 製品変更通知 | ||
| PDF 150 KB | 製品変更通知 | ||
| PDF 150 KB | 製品変更通知 | ||
| PDF 274 KB | 製品変更通知 | ||
| PDF 44 KB | 製品変更通知 | ||
