5X35023は低消費電力のVersaClockプログラマブルクロックジェネレータで、コンシューマや高性能PCI Expressアプリケーション向けに設計されています。 デバイスは3つのPLLアーキテクチャ設計で、各PLLは個別にプログラム可能、最大5つのユニーク周波数出力に対応します。
5X35023は、PPS(Proactive Power Saving)、PPB(Performance-Power Balancing)、ORT(Overshot Reduction Technology)、超低電力DCOなどの独自の機能を内蔵しています。 OTPメモリを内蔵しているため、電源投入の際にプログラミングを行わずにデバイスに設定を保存し、I²Cインタフェースから再度5X35023をプログラミングすることが可能です。
このデバイスはプログラマブルVCOとPLLソースの選択により、アプリケーションの要件に基づいた電力性能の最適化を可能にします。 また、LVCMOS、LP-HCSL、LVDS、LVPECLに対応した1つのシングルエンド出力と2組の差動出力をサポートしています。 システムRTCの基準クロックとして、消費電流2μA以下をサポートする32.768kHzクロックに対応しています。

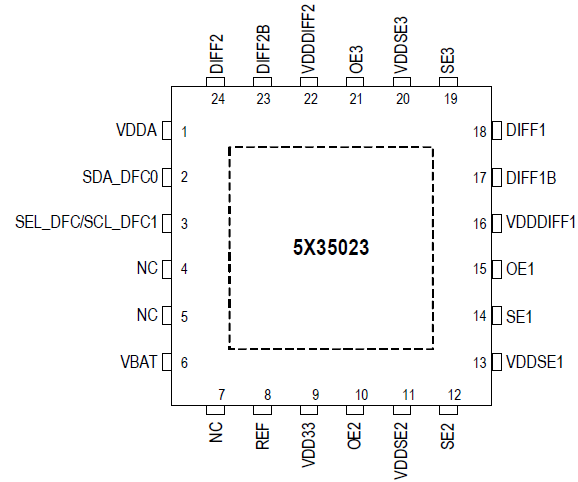

5X35023 | 5L35021 | 5L35023 | 5P35023 | |
Outputs (#) | 5 | 5 | 7 | 7 |
Output Type | LP-HCSL, LVCMOS, LVDS, LVPECL | LP-HCSL, LVCMOS | LP-HCSL, LVCMOS | LP-HCSL, LVCMOS, LVDS, LVPECL |
Core Voltage (V) | 3.3 | 1.8 | 1.8 | 3.3 |
Output Voltage (V) | 1.8, 2.5, 3.3 | 1.8 | 1.8 | 1.8, 2.5, 3.3 |
Pkg. Dimensions (mm) | 4.0 x 4.0 x 1.5 | 3.0 x 3.0 x 1.0 | 4.0 x 4.0 x 0.9 | 4.0 x 4.0 x 0.9 |
製品情報を見る | 製品情報を見る | 製品情報を見る |
タイトル | 分類 | 日付 | |
---|---|---|---|
PDF647 KB
|
データシート
|
||
PDF348 KB
|
アプリケーションノート
|
||
PDF1.17 MB
|
アプリケーションノート
|
||
PDF256 KB
|
アプリケーションノート
|
||
PDF406 KB
|
アプリケーションノート
|
||
PDF342 KB
|
アプリケーションノート
|
||
PDF307 KB
|
アプリケーションノート
|
||
PDF480 KB
|
アプリケーションノート
|
||
PDF170 KB
|
アプリケーションノート
|
||
PDF146 KB
|
アプリケーションノート
|
||
PDF133 KB
|
アプリケーションノート
|
||
PDF495 KB
|
アプリケーションノート
|
||
PDF565 KB
|
アプリケーションノート
|
||
PDF438 KB
|
アプリケーションノート
|
||
PDF137 KB
|
アプリケーションノート
|
||
PDF723 KB
|
マニュアル-ハードウェア
|
||
PDF1.65 MB
|
マニュアル-ソフトウェア
|
||
PDF392 KB
|
概要
|
||
PDF110 KB
|
製品変更通知
|
||
PDF53 KB
|
回路図
|
||
PDF238 KB
|
技術概要
|
The DEV5P35023 programmable clock development kit is designed to support the 5P35023 and 5X35023 VersaClock 3S devices. It provides a convenient way of configuring and...
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
A brief introduction to IDT's VersaClock 3S programmable clock generator IC features, benefits, and applications. These clock timing devices provide an optimal combination of performance, power and flexibility.
IDT's VersaClock 3S devices meet the performance requirements of widely used standards including PCI Express® Gen 1/2/3. These new devices are ideal for computing systems, digital cameras, IP set-top boxes, home entertainment, audio systems, multi-function printers, IoT gateways, small-business storage, smart devices, medical equipment and automotive infotainment.
For more information about IDT's VersaClock programmable clock generator devices, visit www.IDT.com/go/VersaClock.
