ICs for Industrial Ethernet Communication
Jump to Page Section:
Overview
Description
The R-IN32M4-CL3 ICs for industrial Ethernet communication support CC-Link IE TSN. With its built-in Gigabit Ethernet PHY and Renesas R-IN engine (“R-IN engine”) technology, the R-IN32M4-CL3 enables you to realize the latest Time-Sensitive Networking (TSN) technology on a single chip.
To support CC-Link IE TSN networks, the R-IN32M4-CL3 ICs for industrial Ethernet communication enables high-speed, high-precision motion control with time synchronization between devices that is precise to one-millionth of a second. This allows you to build applications with high-speed, high-precision motion control, accelerating TSN support by applications that require control with fast response time such as AC servos, actuators, and vision sensors, and remote I/O devices widely used in network communications.
Moreover, the key feature of the Renesas R-IN series (“R-IN series”), the built-in R-IN engine, offers fast real-time response and high-precision communication control (low jitter communication), which are important for Ethernet communication.
Features
- Time synchronization accuracy between devices to less than ±1μs (CC-Link IE TSN Class B compatible)
- 2-port GbE compatible PHY, CPU and RAM (1.3MB) on a single chip
- Inherits protocol support from the R-IN engine
- Small size package and a built-in regulator for PHY reduces the mounting area
- Low power consumption (35% reduction vs. R-IN32M3-CL2)
Applications
Applications
- Factory automation equipment
- Remote I/O
- Sensors
- Solenoid valves
- Motor networks
Documentation
| Title | Type | Date | |
|---|---|---|---|
Datasheet
|
|||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Application Note
|
|||
Brochure
|
|||
Brochure
|
|||
Manual - Development Tools
|
|||
Manual - Development Tools
|
|||
Manual - Hardware
|
|||
Manual - Hardware
|
|||
Manual - Hardware
|
|||
Manual - Hardware
|
|||
Manual - Hardware
|
|||
Manual - Hardware
|
Design & Development
Sample Code
Boards & Kits
Boards & Kits
R-IN32M4-CL3 KickStart Kit From IAR Systems
The R-IN32M4-CL3 evaluation board and ICE, as well as the evaluation license for the development toolchain IAR Embedded Workbench® for Arm® are all included in the...
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| 2031 Mar | 32 | R-IN32M4 | 768 | 512 | 484 | Cortex-M4 with FPU | No | Yes | Yes | DMAC x 4 ch | 30 | 106 | 16-bit Timer x 16-ch, 32-bit Timer x 4-ch, Watchdog Timer x 1-ch | 2 | 2ch | 2 | 2 | 1.15 | -40 to 85°C | Industrial communication, include CC-Link IE TSN slave IP and 2port PHY, Power Supply = VDD = 1.15V, VDDIO = 3.0 to 3.6V | ||||||
| 2031 Mar | 32 | R-IN32M4 | 768 | 512 | 484 | Cortex-M4 with FPU | No | Yes | Yes | DMAC x 4 ch | 30 | 106 | 16-bit Timer x 16-ch, 32-bit Timer x 4-ch, Watchdog Timer x 1-ch | 2 | 2ch | 2 | 2 | 1.15 | -40 to 85°C | Industrial communication, include CC-Link IE TSN slave IP and 2port PHY, Power Supply = VDD = 1.15V, VDDIO = 3.0 to 3.6V | ||||||
| 2031 Mar | 32 | R-IN32M4 | 768 | 512 | 356 | Cortex-M4 with FPU | No | Yes | Yes | DMAC x 4 ch | 30 | 101 | 16-bit Timer x 16-ch, 32-bit Timer x 4-ch, Watchdog Timer x 1-ch | 2 | 2 | 1.15 | -40 to 85°C | Industrial communication, include CC-Link IE TSN slave IP and 2port PHY, Power Supply = VDD = 1.15V, VDDIO = 3.0 to 3.6V | ||||||||
| 2031 Mar | 32 | R-IN32M4 | 768 | 512 | 356 | Cortex-M4 with FPU | No | Yes | Yes | DMAC x 4 ch | 30 | 101 | 16-bit Timer x 16-ch, 32-bit Timer x 4-ch, Watchdog Timer x 1-ch | 2 | 2 | 1.15 | -40 to 85°C | Industrial communication, include CC-Link IE TSN slave IP and 2port PHY, Power Supply = VDD = 1.15V, VDDIO = 3.0 to 3.6V |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product

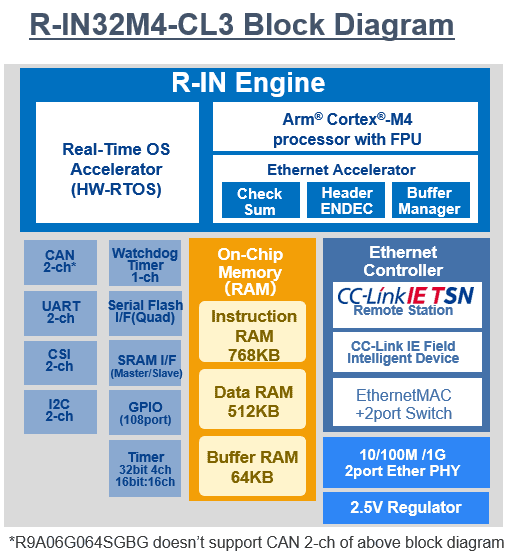

- Chip icon next to the right of the document icon in row: View the block diagram for this product
