Vision AI MPU With Renesas DRP-AI High-efficiency AI Accelerator and OpenCV Image Processing Accelerator Enabling Real-time Object Recognition
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description
DRP-AI utilizes an AI accelerator consisting of a Dynamically Reconfigurable Processor (DRP) and AI-MAC that accelerates AI inference to achieve both high-speed AI inference and low power consumption, enabling real-time image AI without heat sinks or cooling fans. In addition, the OpenCV accelerator, which takes advantage of DRP technology featuring high flexibility, enables high-speed image processing outside of AI in addition to image preprocessing for AI inference, all on a single chip.
These features enable smaller devices and lower BOM costs for vision AI applications in a wide range of embedded markets, including surveillance security, industrial automation, and healthcare.
[Application Examples]
Image Inspection Solutions | Intrusion Detection Solutions

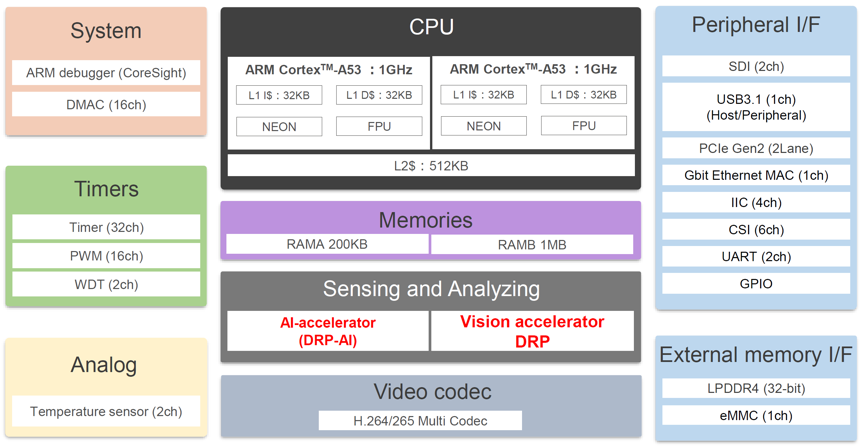

Features
- CPU and DDR Memory Interfaces
- 2x Cortex-A53 up to 1.0GHz
- 32-bit LPDDR4-3200
- Vision and Artificial Intelligence
- AI Accelerator; DRP-AI at 1.0 TOPS/W class
- OpenCV Accelerator (DRP)
- Video and Graphics, Display
- H.265/H.264 Multi Codec
Encoding; h.265 up to 2160p, h.264 up to 1080p
Decoding; h.265 up to 2160p, h.264 up to 1080p
- H.265/H.264 Multi Codec
- High Speed Interfaces
- 1x Gigabit Ethernet
- 1x USB3.1 Gen1 Host/Peripheral
- 1x PCIe Gen 2 (2-lane)
- 2x SDIO 3.0
- 1x eMMC 4.5.1
- Package: FCBGA, 15x15mm 0.5mm pitch
Applications
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF15.58 MB
|
Manual - Hardware
|
||
Guide
|
|||
PDF755 KB
|
Application Note
|
||
PDF256 KB
|
Application Note
|
||
Application Note
|
|||
Application Note
|
|||
PDF470 KB
|
Application Note
|
||
PDF288 KB
|
Application Note
|
||
ZIP1.62 MB
|
Application Note
|
||
Brochure
|
|||
Brochure
|
|||
General Reliability Literature
|
|||
PDF1.28 MB
|
Manual - Development Tools
|
||
PDF21.60 MB
|
Manual - Hardware
|
||
PDF737 KB
|
Manual - Software
|
||
PDF367 KB
|
Manual - Software
|
||
Manual - Software
|
|||
Other
|
|||
Other
|
|||
Other
|
|||
Other
|
|||
Other
|
|||
Other
|
|||
Other
|
|||
Other
|
|||
PDF448 KB
|
Other
|
||
ZIP6.34 MB
|
Other
|
||
Other
|
|||
PDF280 KB Related Files:
|
Quick Start Guide
|
||
PDF767 KB
|
Quick Start Guide
|
||
PDF236 KB Related Files:
|
Release Note
|
||
PDF333 KB Related Files:
|
Release Note
|
||
PDF269 KB
|
Release Note
|
||
PDF477 KB Related Files:
|
Release Note
|
||
PDF282 KB
|
Release Note
|
||
White Paper
|
Design & Development
Software & Tools
Software & Tools
| DRP-AI TVM (GitHub)We provide an AI model conversion tool (DRP-AI TVM) for DRP-AI-equipped products. When using this product, please check the contents of the linked README.md first. | Software Package | Renesas |
| DRP-AI Translator [V1.81]This is an AI model conversion tool (DRP-AI Translator) for DRP-AI equipped products. Please check the Release Notes and User's Manual first before using this product. | Software Package | Renesas |
| RZ MPU Video Codec Library for RZ/V2MAThis product provides the Video Codec Library for RZ/V2MA. Please read the release note for Linux Package of the target devices before using this product. | Software Package | Renesas |
| RZ/V2MA DRP-AI Support Package[V7.31]This product provides the software and documentation for DRP-AI embedded within RZ/V2MA. | Software Package | Renesas |
| RZ/V2MA Linux Package [5.10-CIP] V1.1.0-update1This product provides Linux Package for RZ/V2M 64bit processors. Please read the Release Note included in this first when you use the package. | Software Package | Renesas |
| RZ/V2MA OpenCV Accelerator Support Package [V1.10]This product provides OpenCV Accelerator Support Package for RZ/V2MA. | Software Package | Renesas |
Software Downloads
| Title | Type | Date | |
|---|---|---|---|
ZIP1.13 MB
|
PCB Design Files
|
||
ZIP40.71 MB Related Files:
|
Software & Tools - Software
|
||
ZIP2,606.44 MB Related Files:
|
Software & Tools - Software
|
||
ZIP270.19 MB
|
Software & Tools - Software
|
||
ZIP2,134.15 MB Related Files:
|
Software & Tools - Software
|
||
ZIP4.70 MB Related Files:
|
Software & Tools - Software
|
||
ZIP1.76 MB Related Files:
|
Software & Tools - Software
|
||
7Z2,271.63 MB
|
Software & Tools - Software
|
Boards & Kits
Boards & Kits
RZ/V2MA Evaluation Board Kit
This product is an evaluation board with RZ/V2MA configured as the key device. The RZ/V2MA Evaluation Board Kit is configured with the main board, base board, and...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| RZ/V | Cortex-A53 x 2 | 996 | 64 | - | 1200 | LPDDR4-3200 (32-bit) | No | DRP-AI | PCIe (Rev.2.0 2Lane) x 1 ch | 0 | 10/100M/1G x 1 ch | USB3.1 Gen1 x 1 ch (H/F) | 177 | FCBGA | 841 | -40 to 125°C | N/A | 0 | No | Yes | 32-bit x 32-ch | 0 | No | 3.135 - 3.465 | Cortex-A53 x 2 | ||
| RZ/V | Cortex-A53 x 2 | 996 | 64 | - | 1200 | LPDDR4-3200 (32-bit) | No | DRP-AI | PCIe (Rev.2.0 2Lane) x 1 ch | 0 | 10/100M/1G x 1 ch | USB3.1 Gen1 x 1 ch (H/F) | 177 | FCBGA | 841 | -40 to 125°C | N/A | 0 | No | Yes | 32-bit x 32-ch | 0 | No | 3.135 - 3.465 | Cortex-A53 x 2 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
RZ/V Microprocessor (MPU) Ideal for Vision AI
Equipped with Renesas’ original DRP-AI Accelerator to deliver best-in-class thermal performance. In addition to delivering best-in-class thermal performance, easy-to-use evaluation board kit and software are available to shorten development time.
Video List
