Overview

A flexible, full-featured human machine interface (HMI) and communications product example based on the flagship Synergy™ S7G2 microcontroller (MCU) Group.

Part number of this kit has been changed. The new part number shall be used for orders. The old part number will continue to be referenced across the documentation. Refer to the look-up table for old/new part numbers.

Kit Contents

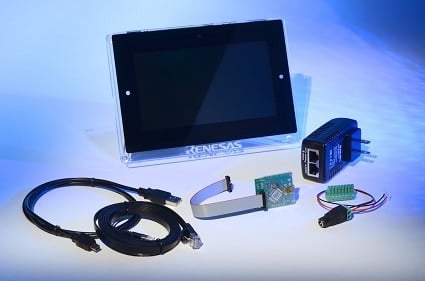

  • S7G2 MCU and I/O board
  • 7" capacitive touch, WVGA 800 x 480 color display
  • Quick Start Guide
  • USB Type A to USB Micro-B cable
  • Ethernet cable
  • 5V power supply
  • Power over Ethernet (PoE) power supply
  • RS-232/RS-485/CAN connector
  • J-Link® Lite debugger

System Requirements

  • Microsoft® Windows® 7 or 10 with Intel® Core™ family processor or equivalent running at ≥2.0GHz
  • ≥8GB system RAM
  • ≥2GB free hard drive space
  • USB 2.0 port
  • Internet connection

Target Device

Knowledge Base

PE-HMI1 Kit
PE-HMI1 Kit
  • Weather panel application demo illustrates a multi-thread HMI example that allows multiple functions, such as rendering and user inputs, to be managed simultaneously
  • Thermostat application demo illustrates touchscreen, Wi-Fi connectivity and a webserver that connects to an access point or wireless router to provide remote wireless access from a smartphone, tablet or PC
  • Overlay multiple graphical screens and CODEC using the on-chip LCD controller, video frame capture engine, 2D drawing engine, and rich features such as alpha blending
  • Visualize and add graphics on the 7” multi-view angle (MVA) color LCD capacitive touch display with backlight using the included GUIX Studio™
  • Use flexible connectivity options with on-board Ethernet, Bluetooth® Dual Mode, USB, and Pmod™. Optimize circuit design with schematics, Bill of Materials (BOM) and PCB layout guide
  • Accelerate code development with the tightly integrated and qualified Synergy Software Package (SSP)
  • Debug and program with J-Link® Lite
Title Category Buy/Sample
S7G2240 MHz Arm® Cortex®-M4 CPU
S7G2 Microcontroller Group User's Manual
 Renesas Synergy™ Platform MCUs Buy/Quote

Documentation

Title Type Date
Product Example HMI1 (PE-HMI1) Quick Start Guide
PDF812 KB日本語
Quick Start Guide
Synergy MCU Kits Part Number Look-up Table
PDF61 KB
Application Note
GUIX "Hello World" for PE-HMI1– Application Project
PDF2.56 MB
Related Files:
Application Note
Advanced GUIX Application
PDF2.92 MB日本語
Related Files:
Application Note
Wi-Fi Framework on PE-HMI1
PDF703 KB日本語
Related Files:
Application Note
Renesas Synergy™ Platform Pin Configurator Usage
PDF2.27 MB日本語
Application Note
Getting Started with the Audio Player Application using SSP - Application Project
PDF1.04 MB日本語
Related Files:
Application Note
USBX™ Host Class CDC-ACM Module Guide - Application Project
PDF277 KB
Related Files:
Application Note
USBX™ Device Class HID Module Guide - Application Project
PDF284 KB日本語
Related Files:
Application Note
USBX™ Device Class Mass Storage Module Guide - Application Project
PDF224 KB
Related Files:
Application Note
Getting Started with the Weather Panel Application - Application Project
PDF2.14 MB日本語
Related Files:
Application Note
Getting Started with NetX Duo™ Web Server - Application Project
PDF644 KB日本語
Related Files:
Application Note
Getting Started with NetX™ Web Server - Application Project
PDF586 KB
Related Files:
Application Note
Getting Started with the Thermostat Application for S7G2 and S5D9 - Application Project
PDF2.00 MB
Related Files:
Application Note
USBX™ Host Class Hub Module Guide - Application Project
PDF250 KB
Related Files:
Application Note
USBX™ Device Class CDC-ACM Module Guide - Application Project
PDF456 KB
Related Files:
Application Note
USBX™ Host Class Video Module Guide - Application Project
PDF306 KB
Related Files:
Application Note
Renesas Synergy™ Project Import Guide - Application Note
PDF1.71 MB日本語
Application Note
Creating a Custom Board Support Package for SSP 1.1.z - Application Project
PDF439 KB
Related Files:
Application Note
DK-S7G2 v3.0 Out-of-Box Demonstration Programming Guidelines - Application Project
PDF538 KB
Related Files:
Application Note
PE-HMI1 v.2.0 Out-of-Box Demo Programming Guidelines - Application Project
PDF217 KB
Related Files:
Application Note
S7G2 HMI Product Example (PE-HMI1) User's Manual
PDF2.19 MB日本語
Manual - Development Tools

Design & Development

Software Downloads

Title Type Date
Renesas Synergy™ PE-HMI1 Product Example v2.0 Design Data
ZIP50.55 MB
PCB Design Files

Sample Code

Title Type Date
GUIX "Hello World" for PE-HMI1– Application Project - Sample Code
ZIP4.09 MB
Related Files:
Sample Code
Getting Started with the Audio Player Application using SSP - Application Project Rev.1.03 - Sample Code
ZIP9.50 MB
Related Files:
Compiler: GNUARM-NONE
IDE: e2 studio, IAR EW for Synergy
Sample Code
USBX™ Host Class CDC-ACM Module Guide - Application Project Rev.1.02 - Sample Code
ZIP2.18 MB
Related Files:
Compiler: GNUARM-NONE
IDE: e2 studio, IAR EW for Synergy
Sample Code
USBX™ Device Class HID Module Guide - Application Project Rev.1.04 - Sample Code
ZIP2.25 MB
Related Files:
Compiler: GNUARM-NONE
IDE: e2 studio, IAR EW for Synergy
Sample Code
USBX™ Device Class Mass Storage Module Guide - Application Project (r11an0104eu0104) Rev.1.04 - Sample Code
ZIP2.22 MB
Related Files:
Compiler: GNUARM-NONE
IDE: e2 studio
Sample Code
Getting Started with the Weather Panel Application - Application Project Rev.2.10 - Sample Code
ZIP16.28 MB
Related Files:
Compiler: GNUARM-NONE
IDE: e2 studio, IAR EW for Synergy
Sample Code
Getting Started with the Thermostat Application for S7G2 and S5D9 - Application Project Rev.1.06 - Sample Code
ZIP13.86 MB
Related Files:
Compiler: GNUARM-NONE
IDE: e2 studio, IAR EW for Synergy
Sample Code
Getting Started with NetX Duo™ Web Server - Application Project Rev.1.08 - Sample Code
ZIP3.27 MB
Related Files:
Compiler: GNUARM-NONE
IDE: e2 studio, IAR EW for Synergy
Sample Code
Getting Started with NetX™ Web Server - Application Project Rev.1.10 - Sample Code
ZIP2.46 MB
Related Files:
Compiler: GNUARM-NONE
IDE: e2 studio, IAR EW for Synergy
Sample Code
USBX™ Host Class Hub Module Guide - Application Project Rev.1.01 - Sample Code
ZIP5.37 MB
Related Files:
Compiler: GNUARM-NONE
IDE: e2 studio, IAR EW for Synergy
Sample Code
USBX™ Device Class CDC-ACM Module Guide - Application Project Rev.1.01 - Sample Code
ZIP4.86 MB
Related Files:
Compiler: GNUARM-NONE
IDE: e2 studio, IAR EW for Synergy
Sample Code
USBX™ Host Class Video Module Guide - Application Project Rev.1.00 - Sample Code
ZIP4.80 MB
Related Files:
Compiler: GNUARM-NONE, ICCARM
IDE: e2 studio, IAR EW for Synergy
Sample Code
Creating a Custom Board Support Package for SSP 1.1.z - Application Project Rev.1.06 - Sample Code
ZIP8.43 MB
Related Files:
IDE: e2 studio
Sample Code
DK-S7G2 v3.0 Out-of-Box Demonstration Programming Guidelines - Application Project (r12an0024eu0125) Rev.1.25 - Sample Code
ZIP15.89 MB日本語
Related Files:
Compiler: GNUARM-NONE
IDE: e2 studio, IAR EW for Synergy
Sample Code

Product Options

    Processing table
    Part Number
    Buy / Sample
    RTK7PEHMP1S00002BU
    play_circleActive
