32K x 18 SuperSync FIFO, 3.3V
Jump to Page Section:
Overview
Description
The 72V275 is a 32K x 18 SuperSync FIFO memory with clocked read and write controls. It's a functionally compatible version of the 72275 designed to run off a 3.3V supply for very low power consumption. The Frequency Select pin (FS) has been removed, thus it is no longer necessary to select which of the two clock inputs, RCLK or WCLK, is running at the higher frequency. SuperSync FIFOs are particularly appropriate for networking, video, telecommunications, data communications and other applications that need to buffer large amounts of data.
Features
- Pin-compatible with the 72V2x5 SuperSync FIFOs
- Functionally compatible with the 5 Volt 722x5 family
- 10ns read/write cycle time (6.5ns access time)
- Fixed, low first word data latency time
- Auto power down minimizes standby power consumption
- Retransmit operation with fixed, low first word data latency time
- Empty, Full and Half-Full flags signal FIFO status
- Programmable Almost-Empty and Almost-Full flags, Easily expandable in depth and width
- Independent Read and Write clocks (permit reading and writing simultaneously)
- Available in 64-pin TQFP and STQFP packages
- Industrial temperature range (–40C to +85C) is available
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 445 KB | Datasheet | ||
| PDF 938 KB | End Of Life Notice | ||
| PDF 909 KB | End Of Life Notice | ||
| PDF 645 KB | End Of Life Notice | ||
| PDF 123 KB | Guide | ||
| PDF 567 KB | Product Change Notice | ||
| PDF 611 KB | Product Change Notice | ||
| PDF 611 KB | Product Change Notice | ||
| PDF 95 KB | Product Change Notice | ||
| PDF 50 KB | Product Change Notice | ||
| PDF 24 KB | Product Change Notice | ||
| PDF 252 KB | Product Change Notice | ||
| PDF 164 KB | Product Change Notice | ||
| PDF 290 KB | Product Change Notice | ||
| PDF 80 KB | Product Change Notice | ||
| PDF 26 KB | Product Change Notice | ||
| PDF 150 KB | Product Change Notice | ||
| PDF 150 KB | Product Change Notice | ||
| PDF 274 KB | Product Change Notice | ||
| PDF 44 KB | Product Change Notice | ||
20 items
|
|||
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
Buy / Sample |
|
|---|---|---|---|---|---|---|
| Part Number | ||||||
| TQFP | 64 | C | Yes | Tray | Get Samples, | |
| TQFP | 64 | C | Yes | Reel | ||
| TQFP | 64 | I | Yes | Tray | Get Samples, | |
| TQFP | 64 | I | Yes | Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product

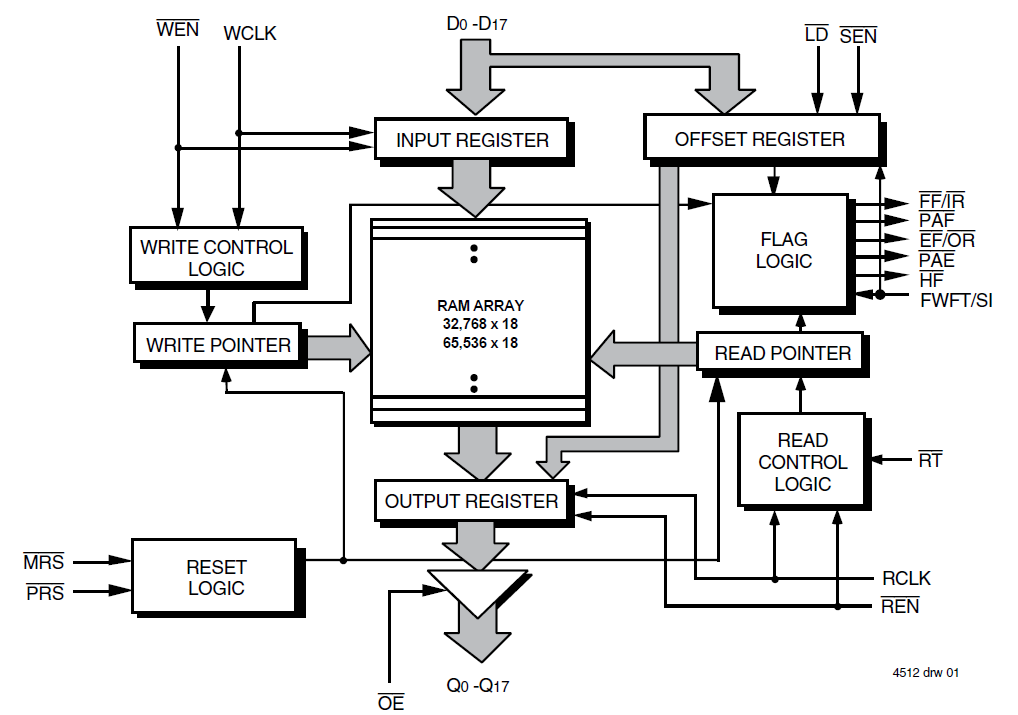

- Chip icon next to the right of the document icon in row: View the block diagram for this product
