Overview

The combination of the R-Car, the PMIC and the clock generators provides a high-efficiency and high-end ADAS solution that supports image input, image output and high-speed input / output IF.

Condor-I Board
Condor-I Block Diagram
Condor-I Board Connectors and Switches

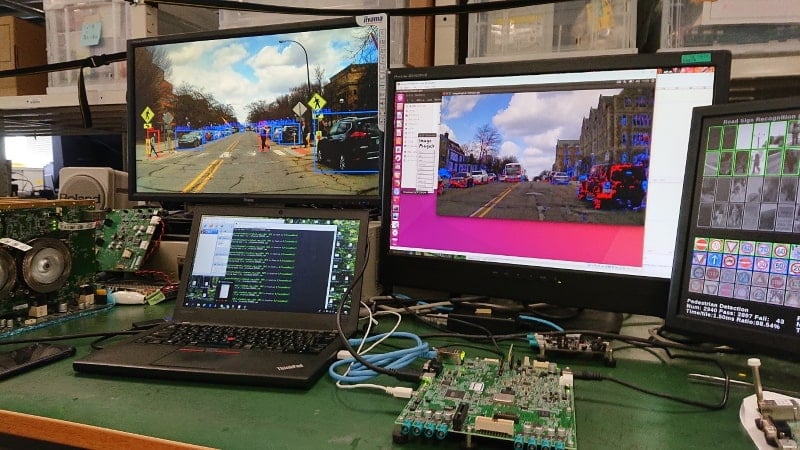

Condor-I Operation Example
Condor-I Board
Condor-I Block Diagram
Condor-I Board Connectors and Switches
Condor-I Operation Example
  • Complete hardware and software development kit for ADAS and automated driving applications like front camera, surround view and lidar
  • R-Car V3H: Image recognition engine with an optimized performance-to-power balance and the Quad Arm® Cortex®-A53 and Cortex-R7 enable advanced video processing and image recognition.
  • Safe PMICs: Highly integrated, ISO-26262 compliant power supply, optimized for the V3H SoC to reduce the solution bill-of-materials while providing industry leading efficiency.
  • Programmable Clock Generator: Flexible clock generator capable of generating any clock frequency from 1 to 500MHz, allows a single device to replace several crystal oscillators with any frequency.
  • Supporting RGMII (2 channels) as the Ether IF and CSI2 (2 channels) as the camera IF to support various inputs and outputs.
Solution for ADAS and Automated Driving Applications

Applications

  • ADAS & Automated Driving
Title Category Buy/Sample
5P35023
VersaClock® 3S Programmable Clock Generator
 Programmable Clocks, PCI Express® Clocks, VersaClock® Programmable Clocks, Clocks - General Purpose, Timing Solutions for NXP (Freescale) Processors, Automotive Timing Buy/Quote
R-Car-V3H
SoC Optimized for Automotive Application in Stereo Front Cameras
 R-Car Automotive System-on-Chips (SoCs) Buy/Quote
RAA271000
General Purpose SoC PMIC for Automotive Applications
 SoC PMIC Buy/Quote
RAA271050
4A, High Efficiency Synchronous Buck Regulator for Automotive Applications
 Switching Regulators, SoC PMIC, Automotive Single or Multiple Output - Buck Controllers Buy/Quote

Documentation

Title Type Date
R-Car V3H Condor Evaluation Board Package
ZIP54.75 MB
Related Files:
Manual - Hardware

Product Options

    Processing table
    Part Number
    Buy / Sample
    RTP8A77980ASKB0CW0SA001
    play_circleActive
