Single Supply Ultra-Low Noise, Low Distortion Rail-to-Rail Output, Op Amp
Jump to Page Section:
Overview
Description

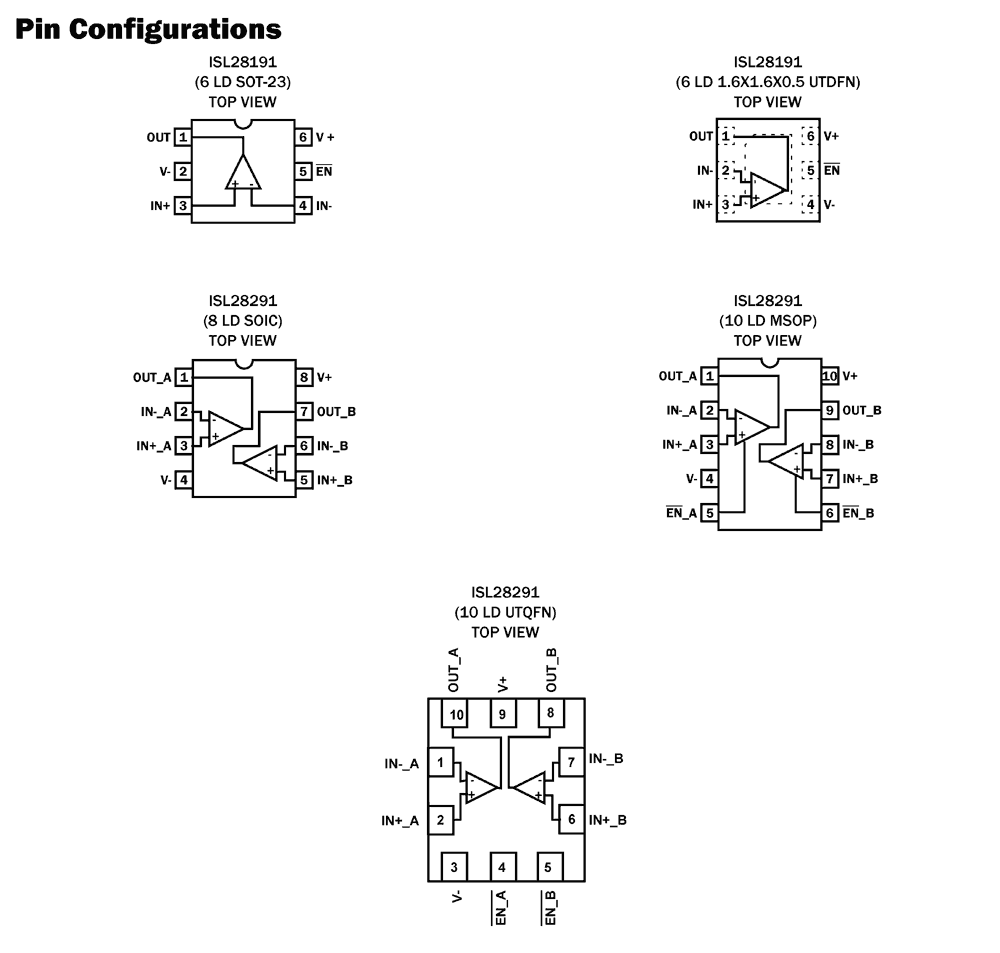

The ISL28191 and ISL28291 are tiny single and dual ultra-low noise, ultra-low distortion operational amplifiers. They are fully specified to operate down to +3V single supply. These amplifiers have outputs that swing rail-to-rail and an input common mode voltage that extends to ground(ground sensing). The ISL28191 and ISL28291 are unity gain stable with an input referred voltage noise of 1. 7nV/√Hz. Both parts feature 0. 00018% THD+N at 1kHz. The ISL28191 is available in the space-saving 6 Ld UTDFN (1. 6mmx1. 6mm) and 6 Ld SOT-23 packages. The ISL28291 is available in the 8 Ld SOIC, 10 Ld 1. 8mmx1. 4mm UTQFN and 10 Ld MSOP packages. All devices are guaranteed over -40°C to +125°C.
Features
- 1.7nV/√Hz input voltage noise at 1kHz
- 1kHz THD+N typical 0.00018% at 2VP-P VOUT
- Harmonic Distortion -76dBc, -70dBc, fo = 1MHz
- 61MHz -3dB bandwidth
- 630µV maximum offset voltage
- 3µA input bias current
- 100dB typical CMRR
- 3V to 5.5V single supply voltage range
- Rail-to-rail output
- Ground Sensing
- Enable pin (not available in the 8 Ld SOIC package option)
- Pb-free (RoHS compliant)
Applications
Applications
- Low noise signal processing
- Low noise microphones/preamplifiers
- ADC buffers
- DAC output amplifiers
- Digital scales
- Strain gauges/sensor amplifiers
- Radio systems
- Portable equipment
- Infrared detectors
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF1.99 MB
|
Datasheet
|
||
PDF974 KB
|
Application Note
|
||
PDF381 KB
|
Application Note
|
||
PDF920 KB
|
Application Note
|
||
PDF263 KB
|
Application Note
|
||
PDF564 KB
|
Application Note
|
||
PDF679 KB
|
Application Note
|
||
PDF8.19 MB
|
Application Note
|
||
PDF976 KB
|
Application Note
|
||
PDF2.04 MB
|
Application Note
|
||
PDF556 KB
|
Application Note
|
||
PDF1.02 MB
|
Application Note
|
||
PDF357 KB
|
Application Note
|
||
PDF843 KB
|
Application Note
|
||
Brochure
|
|||
PDF1.11 MB
|
Flyer
|
||
PDF441 KB
|
Manual - Development Tools
|
||
PDF519 KB
|
Other
|
||
PDF414 KB
|
Product Advisory
|
||
PDF291 KB
|
Product Advisory
|
||
PDF557 KB
|
Product Change Notice
|
||
PDF135 KB
|
Product Change Notice
|
||
PDF205 KB
|
Product Change Notice
|
||
PDF325 KB
|
Training
|
||
PDF258 KB
|
Training
|
Design & Development
Boards & Kits
Boards & Kits
Single Supply, Ultra-Low Noise, Low Distortion, Rail-to-Rail Output Op Amp Evaluation Board
The ISL28191EVAL1Z is designed to enable the IC to operate from a single supply (+3VDC to +5.5VDC) or from split supplies (±1.5VDC to ±2.75VDC). The board is configured...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
ISL28191FHZ-T7 Active Samples Available |
SOT23 | Reel | 3000 | Get Samples, |
ISL28191FRUZ-T7 Active Samples Available |
uTDFN | Reel | 3000 | Get Samples, |
