Overview
Description

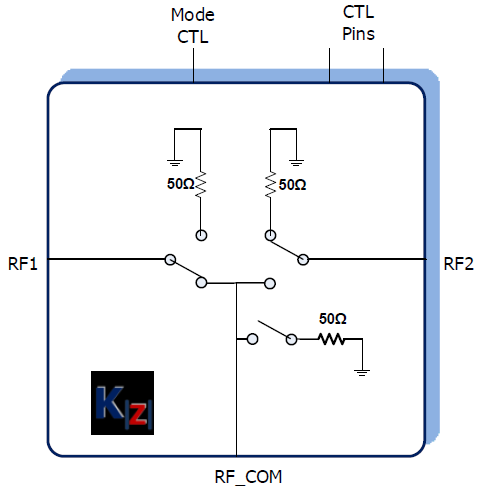

The F2923 is a low insertion loss 50Ω SP2T (SPDT) absorptive RF switch designed for a multitude of wireless and other RF applications. This device covers a broad frequency range from 300kHz to 8000MHz. In addition to providing low insertion loss, industry-leading isolation at 2GHz, and excellent linearity, the F2923 also includes a patent-pending constant impedance (K|z|) feature.
Features
- Constant Impedance K|z| during transition
- Very low insertion loss: 0.48dB at 2GHz
- High Input IP3: 66dB at 2GHz
- RF1/RF2 to RF_Com Isolation: 74dB at 2GHz

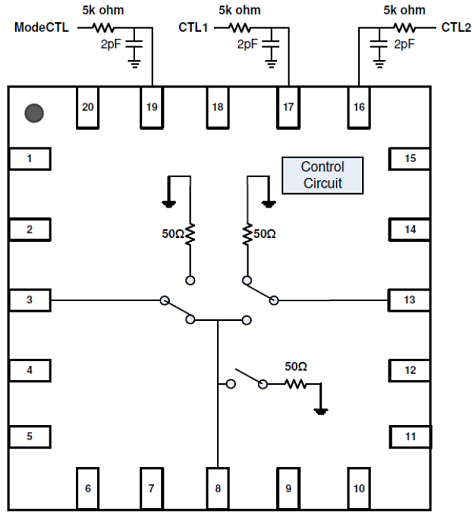

- 1-pin or 2-pin device control option
- Low DC current: 127µA using 3.3V logic
- Supports 1.8V and 3.3V control logic
- Extended temperature: -55 °C to +105 °C

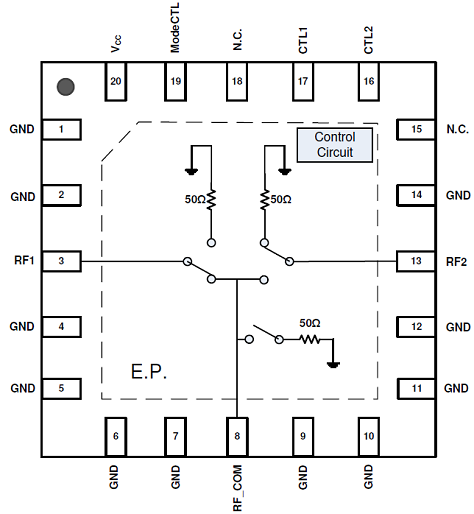

- 4mm x 4mm, 20-pin TQFN package
- Industry-standard footprint and pin compatible with the F2912
Comparison
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Datasheet | PDF 3.51 MB | |
| Guide | PDF 2.24 MB | |
| Report | PDF 517 KB | |
| Product Brief | PDF 438 KB | |
4 items
|
||
Design & Development
Boards & Kits
Evaluation
F2923EVBI
Active
Evaluation Board for F2923 SP2T with Constant Impedance, K|z|
The F2923EVBI is a fully populated evaluation board which allows the customer to easily evaluate the product.
“Thru” calibration connectors are conveniently located on the eval board to simplify the calibration process prior to making any RF measurements. Each RF port (RFC, RF1 and RF2) can...
Recommended Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.
