SLG59M1713V Evaluation Board
The SLG59M1713V-EVB board evaluates the SLG59M1713V GreenFET, Single N-Channel, Load Switch.
Overview
Description

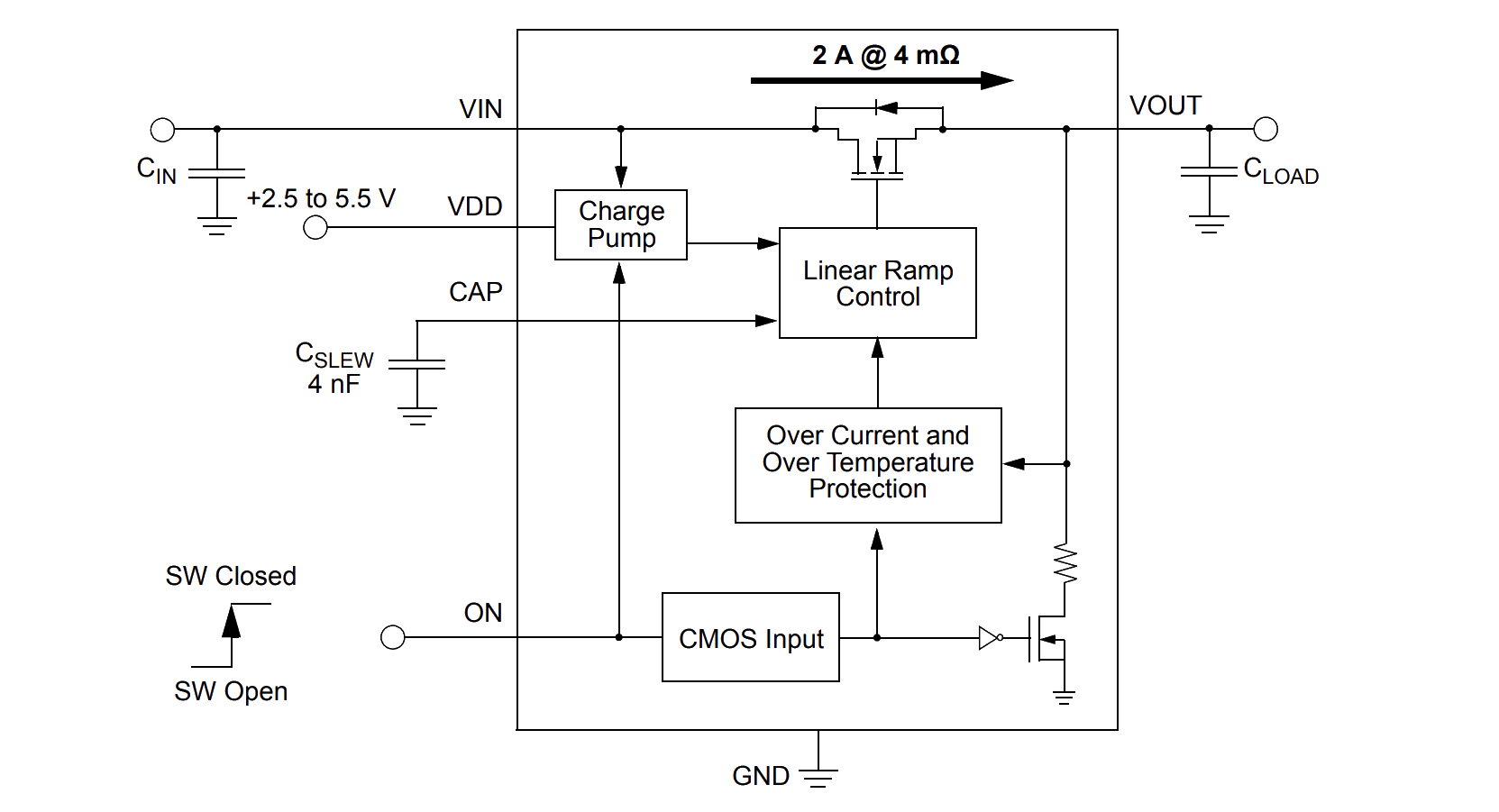

Operating from a 2.5 V to 5.5 V power supply and fully specified over the -40 °C to 85 °C temperature range, the SLG59M1713V is a high-performance 4 mΩ, 2 A single‑channel nFET load switch with adjustable inrush current control which is achieved by adjusting the VOUT slew rate with an external capacitor. Using a proprietary MOSFET design, the SLG59M1713V achieves a stable 4 mΩ RDSON across a wide input/supply voltage range. Incorporating two‑stage current protection as well as thermal protection, the SLG59M1713V is designed for all 0.8 V to 5.5 V power rail applications. Using proprietary CuFET™ technology for high‑current operation, the SLG59M1713V is packaged in a space-efficient, low thermal resistance, RoHS-compliant 1.6 mm x 2.5 mm STQFN package.
Features
- Optimized for all high-side Power-Rail Control Applications in Adapter-powered Devices, Set-top Boxes, Tablet PCs, Hard-disk & Solid-state Drives, and PCI/PCIe Cards
- 4 mΩ RDSON
- Maximum Continuous FET Current: 2 A
- Supply Voltage: 2.5 V ≤ VDD ≤ 5.5 V
- Wide Input Voltage Range: 0.8 V ≤ VIN ≤ VDD
- Capacitor-adjustable VOUT Slew-rate Control
- Two-stage Overcurrent Protection:
- Fixed-threshold, 4 A Active Current Limit
- Fixed 0.5 A Short-circuit Current Limit
- Thermal Shutdown Protection
- Internal Fast VOUT Discharge
Comparison
Applications
Applications
- Notebook Power Rail Switching
- Tablet Power Rail Switching
- Smartphone Power Rail Switching
