SLG59H1132V Evaluation Board
This evaluation board provides a full range of features for evaluating the SLG59H1132V load switch. It operates under the following conditions:
- VIN Voltage: 4.5V to...
Featured Documents:
Overview
Description

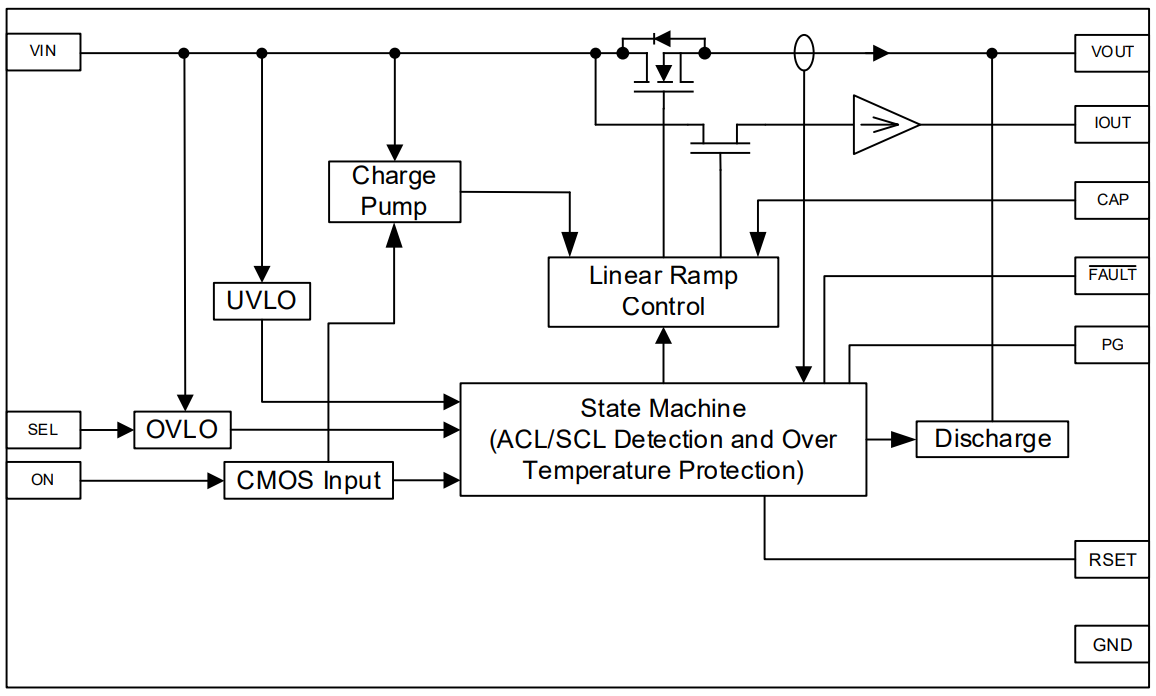

The SLG59H1132V is a high-performance, self-powered 13mΩ NMOS load switch designed for all 4.5V to 22V power rails up to 6A. Using a proprietary MOSFET design, the SLG59H1132V achieves a stable 13mΩ RDSON across a wide input voltage range. In combining novel FET design and copper pillar interconnects, the SLG59H1132V package also exhibits a low thermal resistance for the high current operation. Designed to operate over a -40 °C to +85 °C range, the SLG59H1132V is available in a low thermal resistance, RoHS-compliant, 1.6mm x 3.0mm STQFN package.
Features
- Wide Operating Input Voltage Range: 4.5V to 22V
- Maximum Continuous Current: 6A
- Integrated Low RDSON nFET switch: 13mΩ
- Pin-selectable VIN Overvoltage Lockout
- Two-stage Automatic nFET SOA Protection:
- 25W SOA Threshold Without Blanking Time
- 12.5W SOA Threshold With 18ms Blanking Time
- Capacitor-adjustable Inrush Current Control
- Two-stage Current Limit Protection:
- Resistor-adjustable Active Current Limit
- Internal Short-circuit Current limit
- Open Drain FAULT Signaling
- Open Drain Power Good Signaling
- MOSFET Analog Current Monitor Output: 10µA/A
- ON-OFF Control: Active HIGH
- Operating Temperature Range: -40 °C to 85 °C
- Fast 4kΩ Output Discharge
- Pb-Free / Halogen-Free / RoHS Compliant Packaging
Comparison
Applications
- Power-Rail Switching
- Multifunction Printers
- Telecommunications Equipment
- High-performance Computing: 5V, 9V, 12V, and 20V Point-of-Load Power Distribution
