Overview

The 70T3539M is a high-speed 512K x 36 bit synchronous Dual-Port RAM that has been optimized for applications having unidirectional or bidirectional data flow in bursts. An automatic power down feature, controlled by CE0 and CE1, permits the on-chip circuitry of each port to enter a very low standby power mode. The 70T353M can support an operating voltage of either 3.3V or 2.5V on one or both ports, controllable by the OPT pins. The power supply for the core of the device (VDD) is at 2.5V.

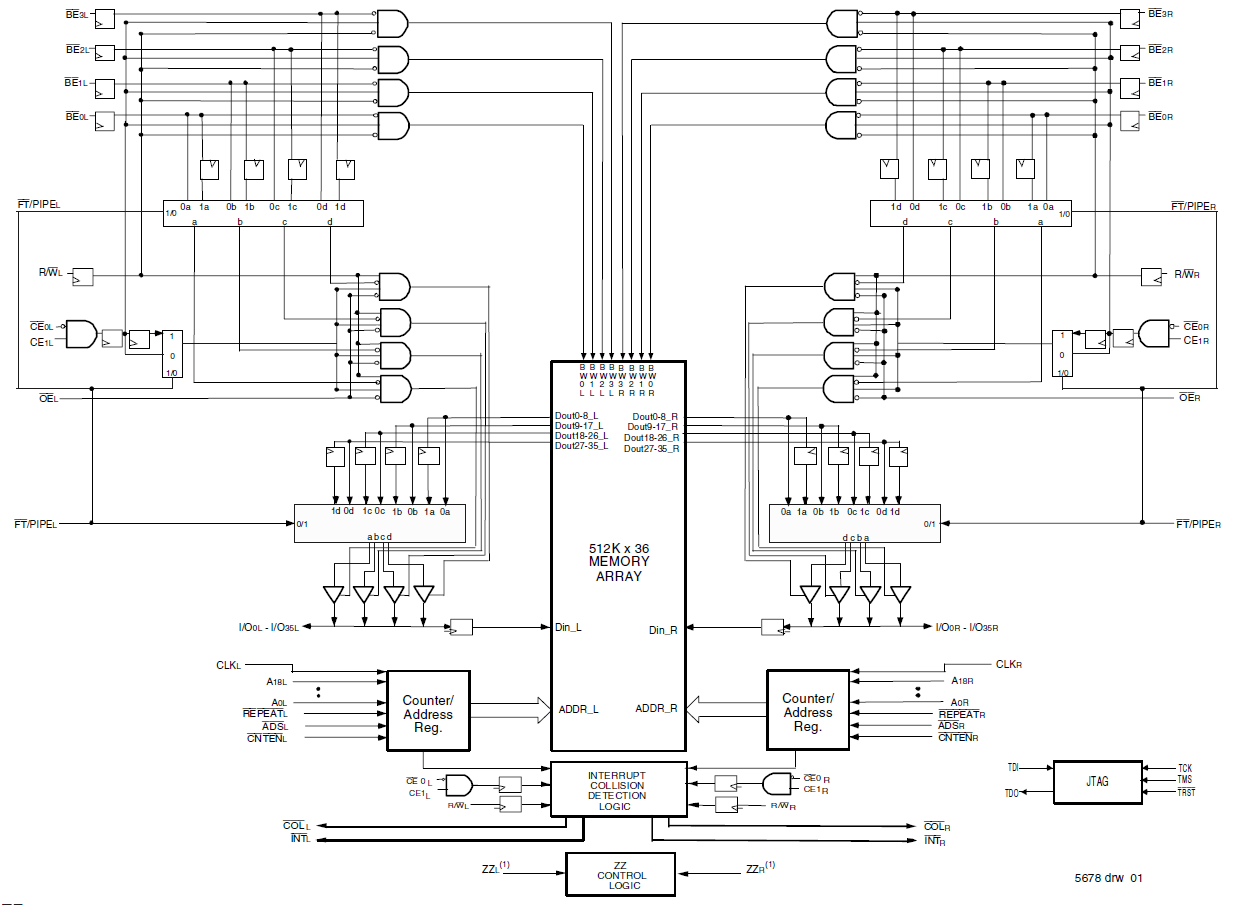

70T3539M - Block Diagram
70T3539M - Block Diagram
  • Dual-Port allows simultaneous access of the same memory location
  • Selectable Pipelined or Flow-Through output mode
  • Counter enable and repeat features
  • Dual chip enables allow for depth expansion without additional logic
  • Interrupt and Collision Detection Flags
  • Full synchronous operation on both ports
  • Separate byte controls for multiplexed bus and bus matching compatibility
  • Dual Cycle Deselect (DCD) for Pipelined Output Mode
  • 2.5V (±100mV) power supply for core
  • LVTTL compatible, selectable 3.3V (±150mV) or 2.5V (±100mV) power supply for I/Os and control signals on each port
  • Includes JTAG functionality
  • Available in a 256-pin BGA package
  • Industrial temperature range (-40C to +85C) is available

Documentation

Design & Development

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    70T3539MS133BC
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		CABGA 256 C No Tray 3 311.78 Get Samples,
    70T3539MS133BCG
    circleActive
    memory
    view_in_ar
    Samples Available
    		 CABGA 256 C Yes Tray 3 345.88 Get Samples,
    70T3539MS133BCGI
    circleActive
    memory
    view_in_ar
    Samples Available
    		 CABGA 256 I Yes Tray 3 380.46 Get Samples,
    70T3539MS133BCI
    circleActive
    memory
    view_in_ar
    Buy Now
    		CABGA 256 I No Tray 3 380.46
    70T3539MS166BCG
    circleActive
    memory
    view_in_ar
    Samples Available
    		 CABGA 256 C Yes Tray 3 363.18 Get Samples,
