Overview
Description
Support is limited to customers who have already adopted these products.

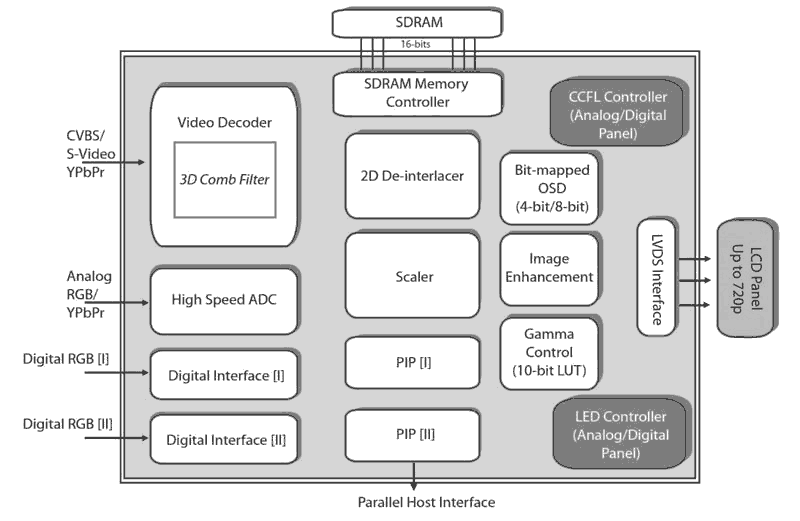

TW8813 is a highly integrated and flexible LCD controller for the automotive infotainment market, including front console and rear seat entertainment applications. TW8813 integrates an 8-bit LVDS panel interface to support digital panels up to 720p resolution. TW8813 also embeds a built-in high quality 3D video decoder, 2D Scaler/De-interlacer, TCON, panel back-light controllers and bit-map OSD engine in a single package. TW8813 supports a variety of analog inputs and adds flexibility by supporting two Digital RGB input ports.
Features
- Supports analog inputs including CVBS, S-Video and Analog RGB/YPbPr. Supports single 24-bits Digital RGB input or Dual 18-bits Digital RGB inputs. Both interlaced and progressive ITU 656 and 601 formats supported
- LVDS panel interface can support digital panels with resolutions up to 720p
- Integrated 16-bits SDRAM memory controller supporting external SDRAM up to 8MB
- Built-in 2 PIP engines
- Built-in dual window bit-mapped (4/8-bits) OSD
- External 18-bits OSD supported with alpha blending control
- Embedded Image Enhancement:
- Programmable CTI, hue, brightness, saturation, contrast and sharpness control
- Black/White Stretch
- Programmable favorite color enhancement- up to three colors (Skin, Grass and Sky)
- Programmable Gamma Correction tables
- Power-down mode
- Temperature rating: -40°C to +85°C
- See datasheet for full list of features
Comparison
Applications
- Automotive Display
- Navigation + DVD + TV
- Back up Camera
- Rear Seat Entertainment
- Car TV
- Portable DVD player
- Portable TV
- In Flight Entertainment
